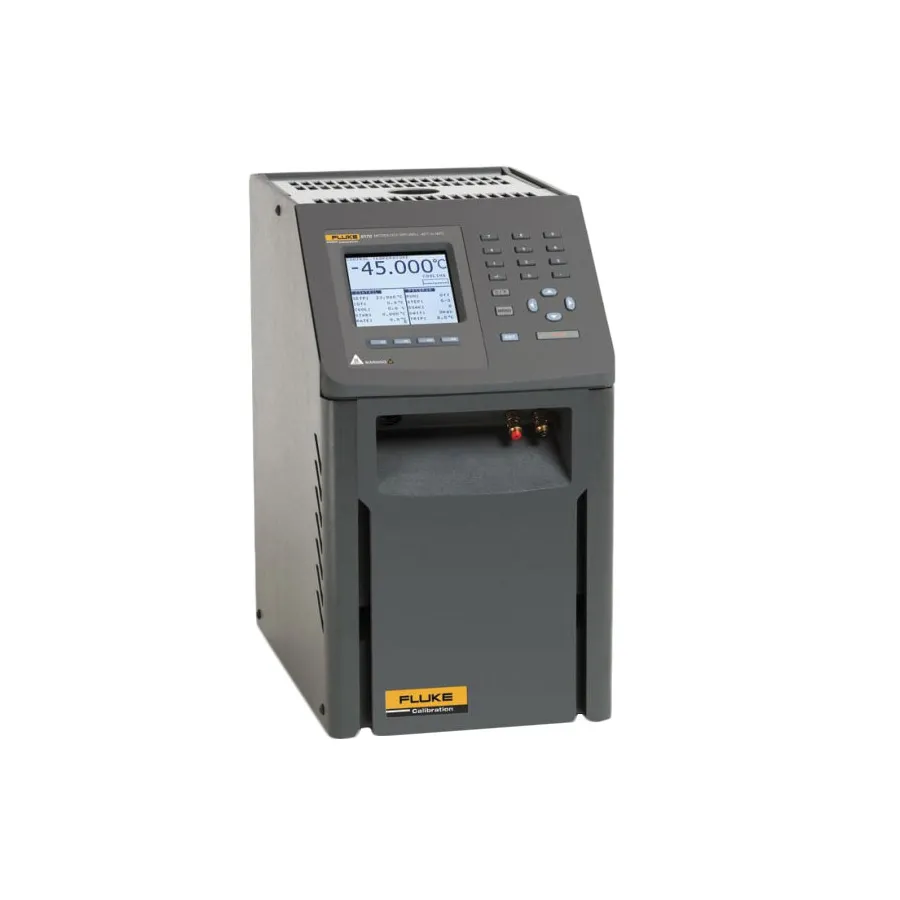

Fluke 9170-C-R-156 Metrology Well
Request a quote
Fluke 9170-C-R-156 is a precision dry-block temperature calibrator with -45°C to 140°C range, ±0.005°C stability, and 160 mm immersion depth for sensor calibration.
Product details
| Model | 9170-C-R-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9170-C-R-156 is a precision dry-block metrology well designed for temperature sensor calibration in laboratory and field environments. With the ability to reach temperatures as low as -45°C and maintain exceptional stability over its full range, the 9170 series is ideal for applications requiring precise thermal calibration with minimal temperature gradients and loading effects.
Key Features
- Temperature range: -45°C to 140°C (-49°F to 284°F)
- Display accuracy: ±0.1°C full range
- Stability: ±0.005°C full range
- Radial uniformity: ±0.01°C full range
- Axial uniformity: ±0.02°C at 0°C
- Well depth: 160 mm (6.3 in) with 0.001°C resolution
- LCD display with °C/°F selection
- RS-232 serial interface with automated calibration protocols
- Built-in reference thermometer input (Tweener technology)
- Compatible with RTDs, thermocouples, and thermistors
Applications
- Pharmaceutical and medical device temperature calibration
- Laboratory temperature sensor verification
- Field calibration of RTDs and thermocouples
- Reference standard for temperature measurement
Included Accessories
- Insert C (aluminum with 0.25-inch holes)
- Power Cord
- RS-232 Cable
- Tongs (insert removal tool)
- 9930 Interface-it Software
- User's Guide and Getting Started Guide
- Report of Calibration and calibration label
Specifications
| Series | 9170 Series |
