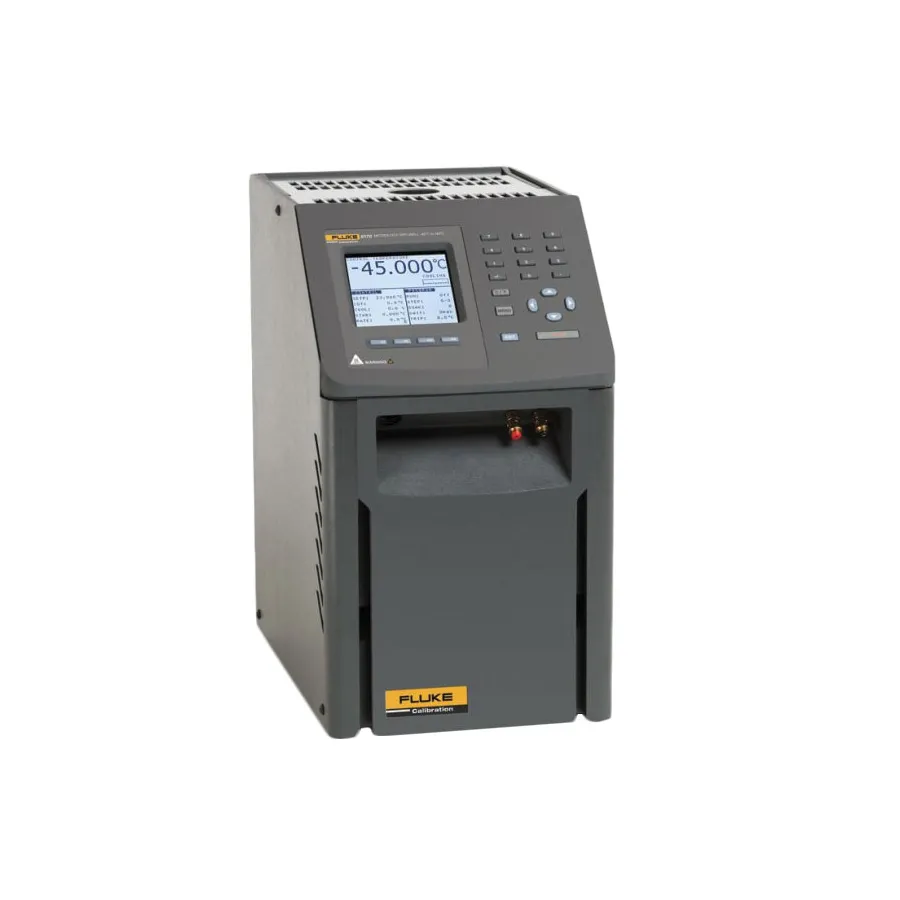

Fluke 9170-A-R-156 Metrology Well

Overview

The Fluke 9170-A-R-156 is a precision metrology well that achieves the lowest temperatures of the 9170 series, reaching -45°C in normal room conditions. The 9170 is stable to ±0.005°C over its full temperature range (-45°C to 140°C) and has 160 mm (6.3 in) of immersion depth. With axial uniformity of ±0.02°C and radial uniformity of ±0.01°C, this model delivers exceptional uncertainty budgets and is ideal for pharmaceutical and laboratory applications.

As part of Fluke's Hart Metrology Well series, the 9170 minimizes temperature gradients, loading effects, and hysteresis, making calibration more meaningful. It uses traceable, accredited PRTs (Platinum Resistance Thermometers) for calibration and features proprietary electronics that consistently demonstrate repeatable accuracy.

Key Features

• Temperature range: -45°C to 140°C (-49°F to 284°F) at 23°C ambient
• Display accuracy: ±0.1°C full range
• Stability: ±0.005°C full range
• Axial uniformity: ±0.1°C at -45°C, ±0.04°C at -35°C, ±0.02°C at 0°C, ±0.07°C at 140°C (over 60 mm)
• Radial uniformity: ±0.01°C full range
• Well depth: 160 mm (6.3 in)
• Resolution: 0.001°C
• LCD display (C or F user-selectable)
• RS-232 serial interface
• 8 temperature set points with ramp and soak times
• Automated switch test protocol
• Insert A: Aluminum with miscellaneous holes (3/16", 1/8", 1/4" x3, 3/8")
• Built-in reference thermometer input with Tweener measurement technology

Applications

• Pharmaceutical calibration and testing
• Laboratory temperature instrument calibration
• RTD, thermocouple, and thermistor calibration
• Reference standard for temperature measurement

Included Accessories

• Fluke 9170-A-R-156 Metrology Well with Insert A
• Power cord
• RS-232 cable
• Tongs (insert removal tool)
• 9930 Interface-it Software and User's Guide
• Getting Started Guide
• User's Guide
• Report of Calibration and calibration label
