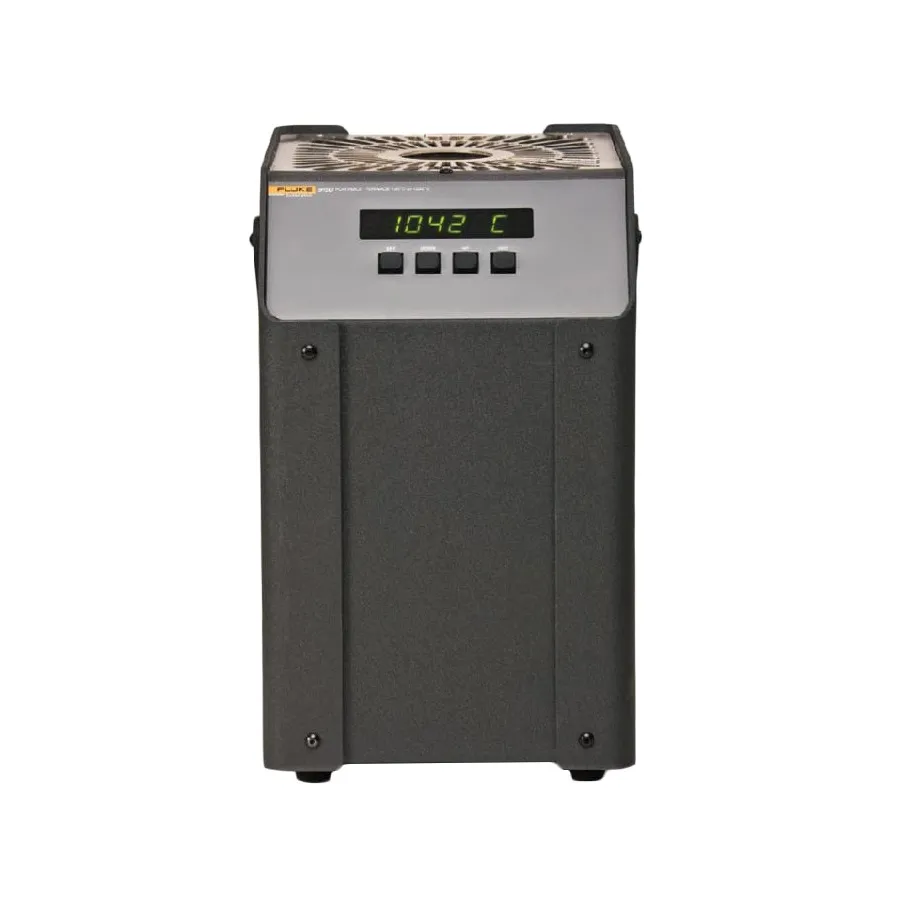

Fluke 9150-DW-156 Thermocouple Furnace
Request a quote
Fluke 9150-DW-156 is a portable thermocouple calibration furnace with temperature range 150-1200°C, ±0.5°C stability, and microprocessor control.
Product details
| Model | 9150-DW-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9150-DW-156 is a portable thermocouple furnace for calibrating thermocouples as small as 1/16 inch in diameter. It features a microprocessor-based controller for precise temperature control and stability. The unit is available in 115 V or 230 V AC configurations and includes an RS-232 port for PC connectivity.
Key Features
- Temperature range 150-1200°C (302-2192°F)
- Stability of ±0.5°C
- Display resolution 0.1°C to 999.9°C, 1°C above 1000°C
- Well diameter 32 mm (1.25 in)
- Well depth 140 mm (5.5 in)
- Heating time to 1200°C: 35 minutes
- Cooling time: 140 minutes
- Stabilization time: 20 minutes
- Power: 115 V or 230 V AC, 50/60 Hz, 1200 W
- Factory calibrated with NIST traceability
Applications
- Thermocouple calibration and verification
- Temperature sensor testing
- Instrument maintenance and certification
- Laboratory standards verification
