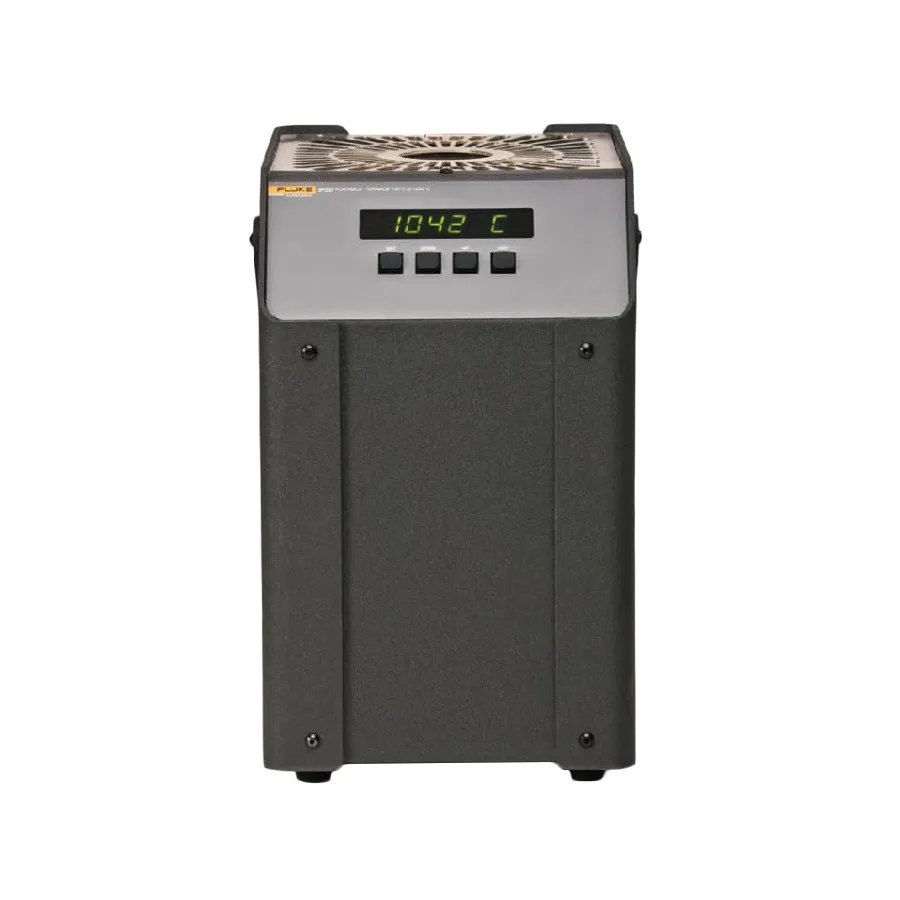

Fluke 9150-B-156 Thermocouple Furnace
Request a quote
Fluke 9150-B-156 is a microprocessor-controlled thermocouple furnace with temperature range 150–1200°C, ±0.5°C stability, and RS-232 connectivity for calibration work.
Product details
| Model | 9150-B-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9150-B-156 is a microprocessor-based thermocouple furnace designed for calibration of temperature sensors. It offers excellent stability and rapid heating/cooling cycles with interchangeable well inserts for testing various thermocouple sizes.
Key Features
- Temperature range: 150 to 1200°C (302 to 2192°F)
- Stability: ±0.5°C
- Display resolution: 0.1°C to 999.9°C, 1°C above 1000°C
- Well diameter: 1.25 in (32 mm)
- Well depth: 140 mm (5.5 in)
- Heating time: 35 minutes to 1200°C
- Cooling time: 140 minutes with block
- Stabilization time: 20 minutes
- Power: 115V or 230V AC (±10%), switchable, 50/60 Hz, 1200 W
- RS-232 port for PC connection
- NIST-traceable calibration included
Applications
- Thermocouple calibration and verification
- Temperature sensor testing
- Industrial temperature measurement system validation
Included Accessories
- Insert B with comparison holes (3/8", 1/4", 3/16")
