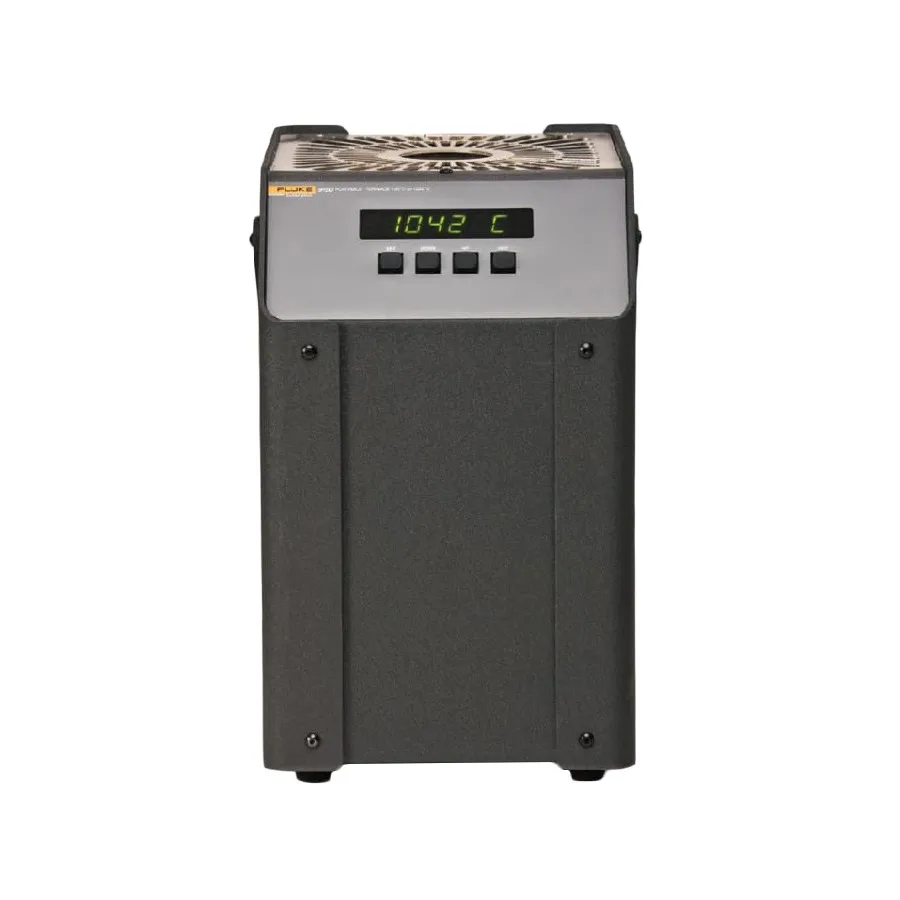

Fluke 9150-A-156 Thermocouple Furnace
Request a quote
Fluke 9150-A-156 thermocouple furnace for precision temperature calibration from 150–1200°C with ±0.5°C stability, configured for 110V 50/60Hz
Product details
| Model | 9150-A-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9150-A-156 is a precision thermocouple furnace designed for the calibration and verification of thermocouples and RTD sensors. With a temperature range from 150°C to 1200°C and exceptional stability of ±0.5°C, it is optimized for 110V 50/60Hz power systems and is widely used in metrology and calibration laboratories.
Key Features
- Exceptional stability: ±0.5°C across 150–1200°C range
- Display accuracy: ±5°C across entire temperature range
- Interchangeable temperature blocks for versatile sensor testing
- Removable well insert with rapid heat-up and cool-down times
- Microprocessor-based controller for superior stability and set-point accuracy
- RS-232 port for PC connection
- Configured for 110V 50/60Hz operation
- NIST-traceable calibration certificate
Applications
- Thermocouple calibration and verification
- RTD (Resistance Temperature Detector) testing
- Industrial temperature sensor calibration
- Metrology laboratory standards and reference maintenance
Included Accessories
- 3150-2 Insert
- NIST-Traceable Calibration Certificate
Specifications
| Temperature Range | 150°C to 1200°C (302°F to 2192°F) |
| Display Resolution | 0.1° to 999.9°, 1° above 1000° |
| Stability | ±0.5°C |
| Display Accuracy | ±5°C |
| Well Diameter | 1.25" (32 mm) |
| Well Depth | 140 mm (5.5 in) |
| Removable Insert Depth | 101 mm (4 in) |
| Heating Time to 1200°C | 35 minutes |
| Cooling Time with Block | 140 minutes |
| Well-to-Well Uniformity at 1200°C | ±0.5°C to ±1.0°C |
| Stabilization Time | 20 minutes |
| Weight | 28 lb (13 kg) |
| Power Supply | 110V 50/60Hz |
| Interface | RS-232 for PC connection |
| Calibration | NIST-Traceable at 150, 300, 450, 600, 800, 1000, and 1200°C |
