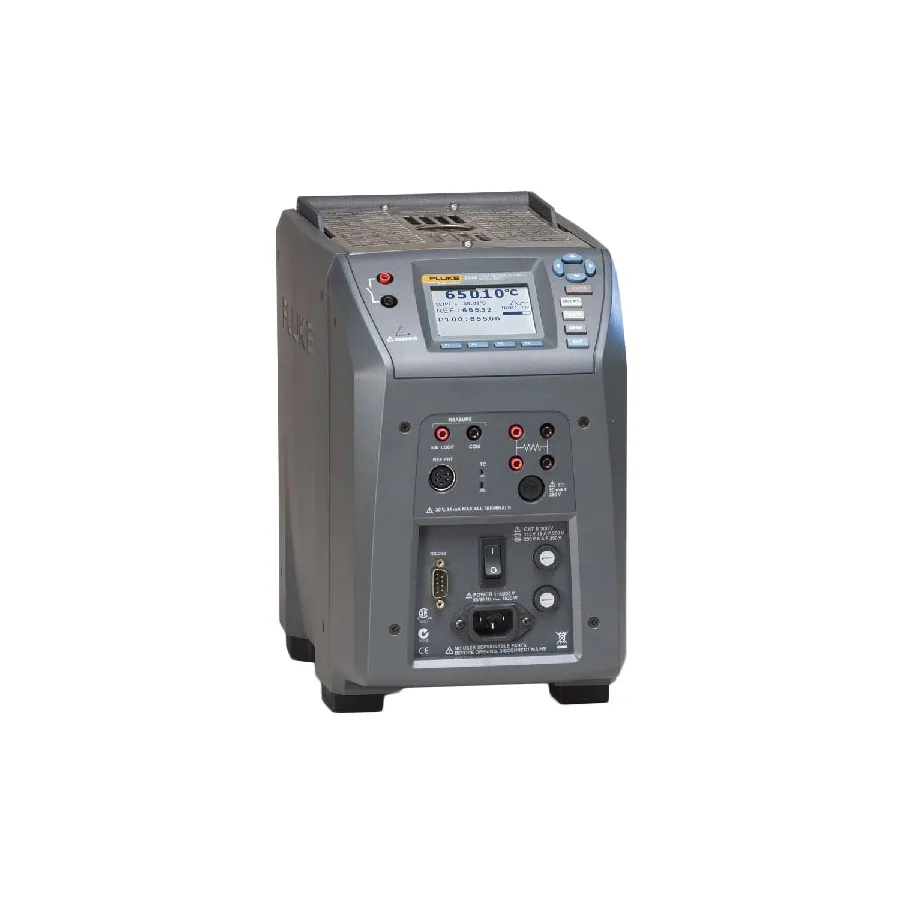

Fluke 9144-F-156 Metrology Well

Overview

The Fluke 9144-F-156 is a portable dry-block temperature calibrator engineered for field metrology in industrial environments. It offers high metrology performance in accuracy, stability, and uniformity without compromising portability and speed. The instrument features a large LCD display, function keys with easy-to-navigate menus, and visual and audible stability indicators to signal when measurements are ready for recording.

Key Features

• Temperature range: 50°C to 660°C (122°F to 1220°F)
• Display accuracy: ±0.35°C at 50°C, ±0.35°C at 420°C, ±0.5°C at 660°C
• Stability: ±0.03°C at 50°C, ±0.04°C at 420°C, ±0.05°C at 660°C
• Radial uniformity: ±0.02°C at 50°C, ±0.05°C at 420°C, ±0.14°C at 660°C
• Axial uniformity at 40 mm: ±0.05°C at 50°C, ±0.2°C at 420°C, ±0.3°C at 660°C
• Insert F configuration: 3 mm (2), 4 mm (2), 6 mm (1), 1/4 in (1) holes
• Immersion depth: 150 mm (5.9 in)
• Large LCD display visible in low-light environments
• Preprogrammed calibration routines stored in memory

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration and verification
• RTD and PRT calibration
• Thermostatic switch testing
• Industrial thermometer verification

Included Accessories

• User manual
• Technical manual on CD
• Serial cable
• Report of calibration
• Insert removal tool
