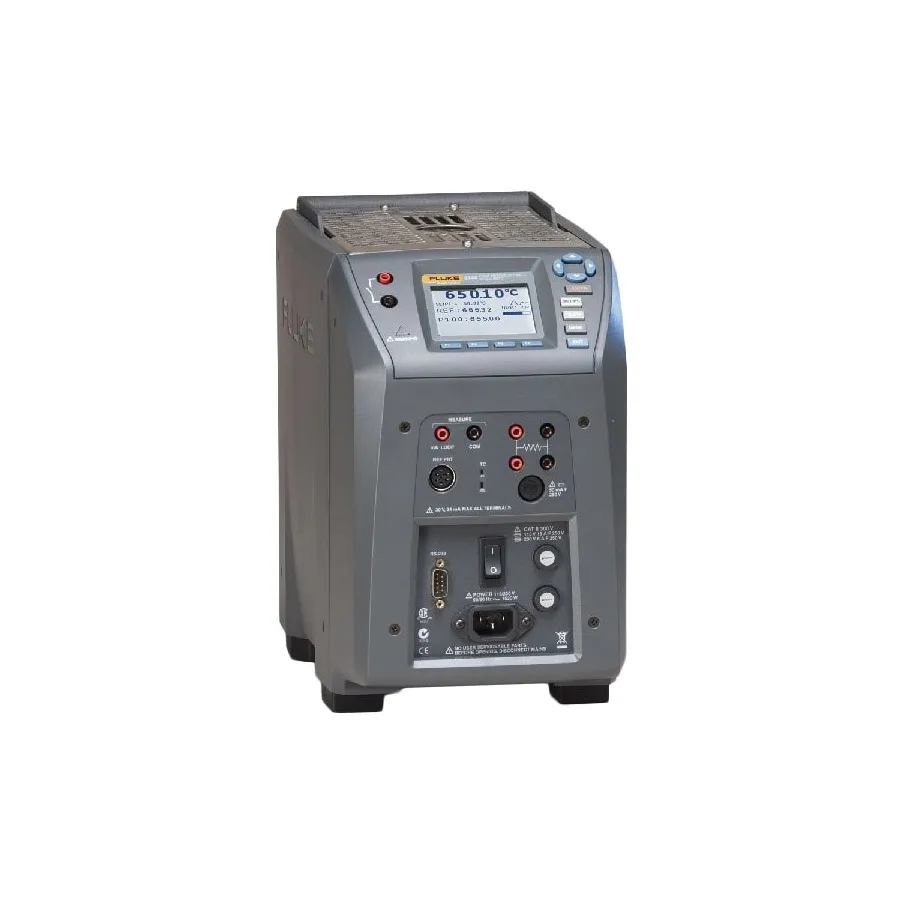

Fluke 9144-DW-P-156 Dry-Well Field Calibrator

Overview

The Fluke 9144-DW-P-156 is a portable field metrology well with integrated process electronics for comprehensive on-site temperature calibration. It provides accurate, stable temperature control from 50°C to 660°C, making it ideal for industrial transmitter loop calibration and sensor verification outside the laboratory. Unlike traditional dry-wells, it maximizes speed and portability while maintaining superior metrology performance across accuracy, stability, and uniformity.

Key Features

• Temperature range: 50°C to 660°C with ±0.35°C display accuracy
• Built-in two-channel readout for PRT, RTD, thermocouple, and 4-20 mA measurements with 24V loop supply
• Stability: ±0.03°C to ±0.05°C depending on temperature
• Radial and axial uniformity within ±0.02°C to ±0.3°C across temperature range
• Visual and audible stability indicator for ready-to-calibrate confirmation
• Large LCD display readable in low-light conditions
• On-board non-volatile memory for documenting up to 20 tests with date, time, and results
• Lightweight, portable design for field deployment
• IEC-17025 NVLAP-accredited calibration certificate included

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration or verification
• RTD and PRT calibration
• Thermostatic switch testing
• Industrial thermometer verification

Included Accessories

• User manual and technical manual on CD
• Serial cable and test leads
• Insert removal tool and 6-pin DIN connector for reference probe
• Report of calibration with NVLAP accreditation
