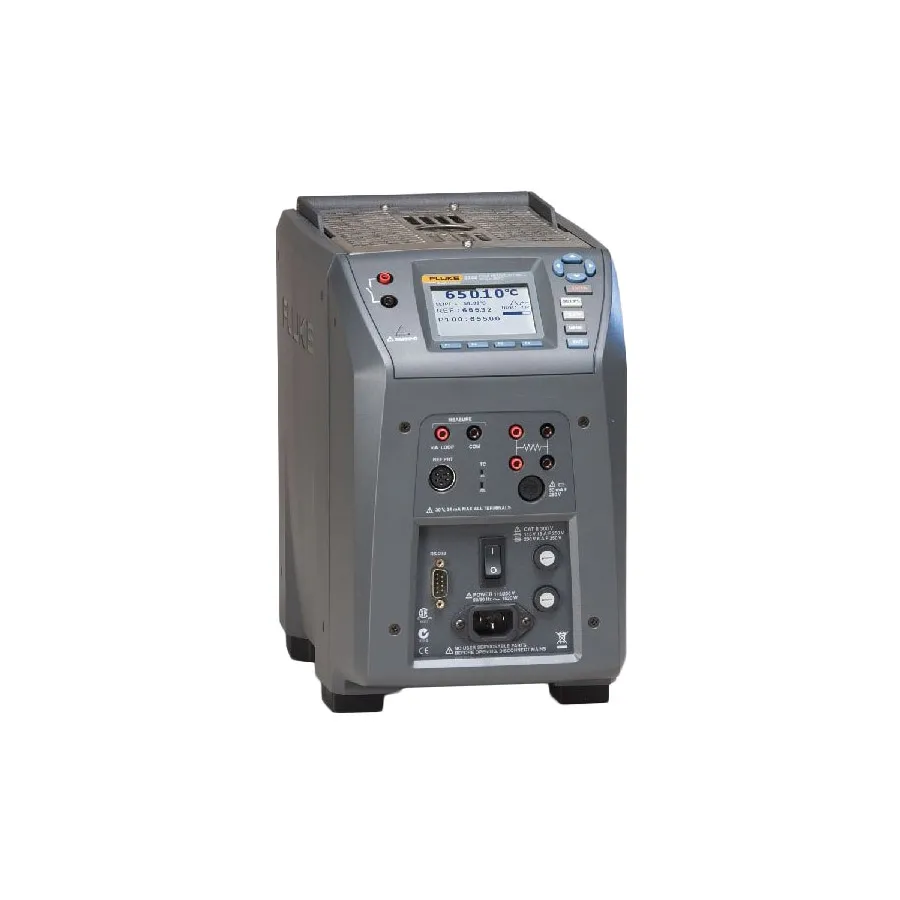

Fluke 9144-DW-156 Dry-Well Field Calibrator
Request a quote
Fluke 9144-DW-156 is a portable dry-block calibrator with 50°C to 660°C range, designed for use with external reference PRTs and external thermometer readouts.
Product details
| Model | 9144-DW-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9144-DW-156 Metrology Well is a field-portable dry-block calibrator designed for temperature measurement and sensor calibration in industrial environments. Unlike models with integrated process electronics, this version offers flexibility for use with external reference PRTs and thermometer readouts, making it ideal for comparison calibrations and applications requiring independent reference thermometry.
Key Features
- Temperature range 50°C to 660°C (122°F to 1220°F)
- Display accuracy of ±0.35°C at 50°C and 420°C, ±0.5°C at 660°C
- Compatible with external reference PRTs and thermometer readouts for enhanced accuracy
- Large LCD display visible in low-light environments
- Visual and audible stability indicator
- No insert included — allows flexibility in selecting appropriate probe accommodations
- Lightweight and portable, reaches temperature setpoints in approximately 15 minutes
- Metrology performance meets EA standards for accuracy, stability, uniformity, and loading
Applications
- Temperature transmitter loop calibration
- Thermocouple calibration and verification
- RTD and PRT calibration with external reference thermometry
- Thermostatic switch testing
- Comparison calibration measurements
- Industrial thermometer verification
Included Accessories
- Users manual
- Technical manual on CD
- Serial cable
- Report of calibration
- Insert removal tool
Specifications
| Series | 9140 Series |
