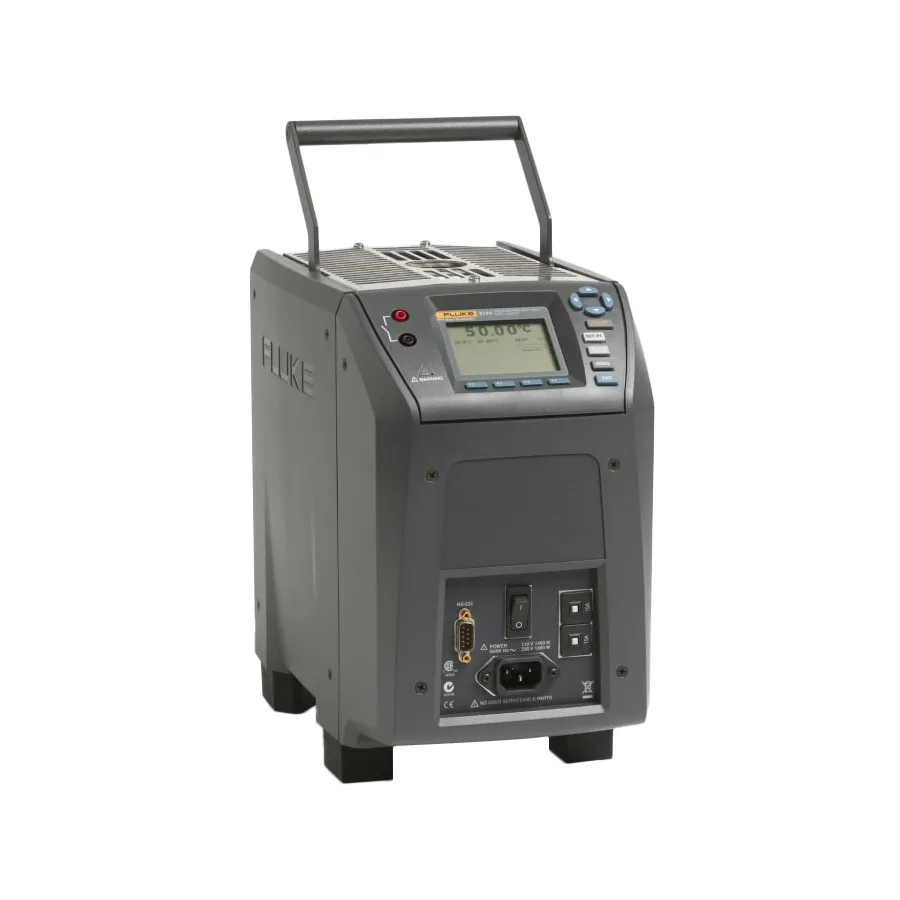

Fluke 9144-D-156 Dry-Well Field Calibrator
Request a quote
Fluke 9144-D-156 field metrology well with Insert D (metric comparison holes), 50°C to 660°C, ±0.35°C accuracy for temperature sensor and transmitter calibration.
Product details
| Model | 9144-D-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9144-D-156 is a portable field metrology well with Insert D featuring metric comparison holes. Designed for temperature calibration in industrial process environments, it combines high metrology performance with field portability. The 9140 Series delivers superior accuracy, stability, and uniformity for comprehensive calibration capabilities.
Key Features
- Temperature range: 50°C to 660°C (122°F to 1220°F)
- Display accuracy: ±0.35°C at 50°C, ±0.35°C at 420°C, ±0.5°C at 660°C
- Exceptional stability: ±0.03°C at 50°C, ±0.04°C at 420°C, ±0.05°C at 660°C
- Insert D: Metric comparison holes (3 mm, 4 mm, and 6 mm) with flexible probe accommodation
- Large LCD display is easy to see even in poorly lighted environments
- Function keys and easy-to-navigate menus
- Visual and audible stability indicator signals calibration readiness
- Lightweight, portable, and fast reaching temperature setpoints
- Superior metrology performance in accuracy, stability, uniformity, and loading characteristics
Applications
- Loop calibration of temperature transmitters
- RTD and PRT calibration and verification
- Thermocouple calibration and comparison measurement
- Testing of thermostatic switches
- Verification of industrial thermometers
Included Accessories
- 9144-D-156 Metrology Well with Insert D
- Users manual and technical manual on CD
- RS-232 serial cable
- Report of calibration
- Insert removal tool
Specifications
| Series | 9140 Series |
