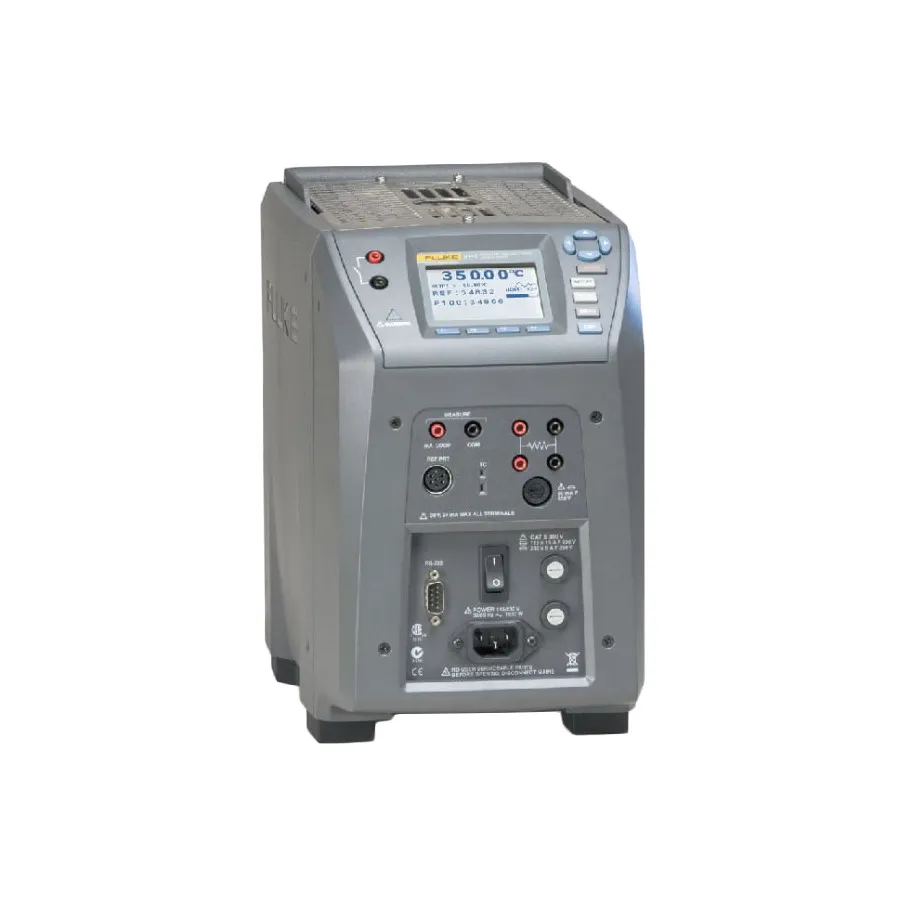

Fluke 9143-F-P-156 Field Metrology Well with Process Electronics

Overview

The Fluke 9143-F-P-156 is a portable field metrology well with integrated process electronics for comprehensive temperature calibration and transmitter verification. Weighing less than 8.2 kg (18 lb), this dry-block calibrator combines fast stabilization with built-in gradient-temperature compensation and a two-channel readout system for measuring RTDs, thermocouples, and 4-20 mA transmitters. It features IEC-17025 NVLAP-accredited calibration and comes with Insert F for metric and mixed probe configurations.

Key Features

• Display accuracy: ±0.2°C full range
• Temperature range: 33°C to 350°C (91°F to 662°F)
• Stability: ±0.02°C at 33°C and 200°C, ±0.03°C at 350°C
• Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Large, easy-to-read LCD display
• Visual and audible stability indicator
• Built-in two-channel readout for PRT, RTD, thermocouple, and 4-20 mA current
• 24 V loop supply to power transmitters
• Two-channel configuration: 2-, 3-, or 4-wire RTD, thermocouple, or 4-20 mA modes
• Automated thermal switch test capability
• Onboard non-volatile memory for up to 20 test records with date, time, and error documentation
• Compatible with Fluke 754 Process Calibrator
• Insert F: 3 mm (2), 4 mm (2), 6 mm (1), 1/4 in (1) hole configurations

Applications

• Loop calibration of temperature transmitters with built-in verification
• Thermocouple calibration and verification
• RTD and PRT calibration
• Thermostatic switch testing
• Industrial thermometer verification
• Comparison calibration without carrying multiple instruments

Included Accessories

• Users manual and technical manual on CD
• Serial cable and test leads
• Report of calibration
• Model 9930 Interface-it software for data export
• 6-pin DIN connector for reference probe
• Insert removal tool
