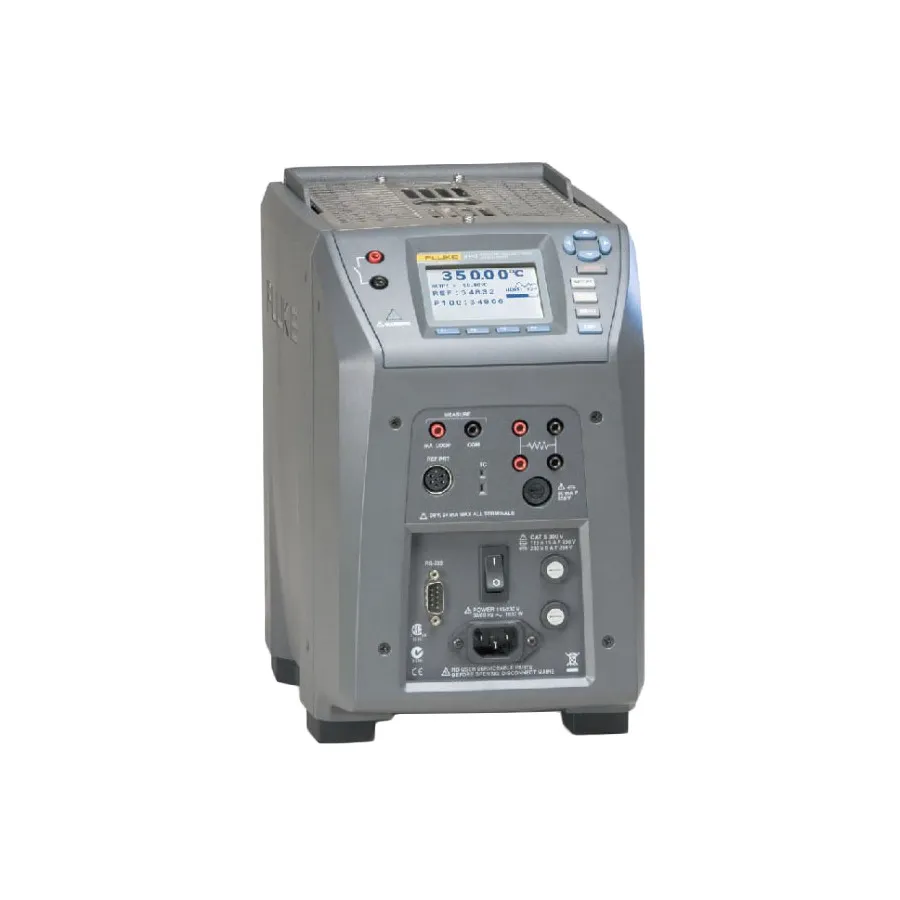

Fluke 9143-F-156 Field Metrology Well
Request a quote
Fluke 9143-F-156 is a portable dry-block calibrator with ±0.2°C accuracy, 33–350°C range, and built-in gradient compensation for field temperature calibration and transmitter verification.
Product details
| Model | 9143-F-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9143-F-156 is a portable field metrology well for temperature calibration and instrument verification. Weighing less than 8.2 kg (18 lb), this dry-block calibrator offers fast stabilization with built-in gradient-temperature compensation to ensure stable performance in unstable field environments. It features IEC-17025 NVLAP-accredited calibration and comes with Insert F configured for metric and mixed probe hole sizes.
Key Features
- Display accuracy: ±0.2°C full range
- Temperature range: 33°C to 350°C (91°F to 662°F)
- Stability: ±0.02°C at 33°C and 200°C, ±0.03°C at 350°C
- Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
- Immersion depth: 150 mm (5.9 in)
- Large, easy-to-read LCD display for visibility in poor lighting
- Visual and audible stability indicator signals when ready to calibrate
- Preprogrammed calibration routines stored in memory
- Insert F: 3 mm (2), 4 mm (2), 6 mm (1), 1/4 in (1) hole configurations
Applications
- Loop calibration of temperature transmitters
- Thermocouple calibration and verification
- RTD and PRT calibration
- Thermostatic switch testing
- Industrial thermometer verification
Included Accessories
- Users manual and technical manual on CD
- Serial cable
- Report of calibration
- Insert removal tool
Specifications
| Series | 9140 Series |
