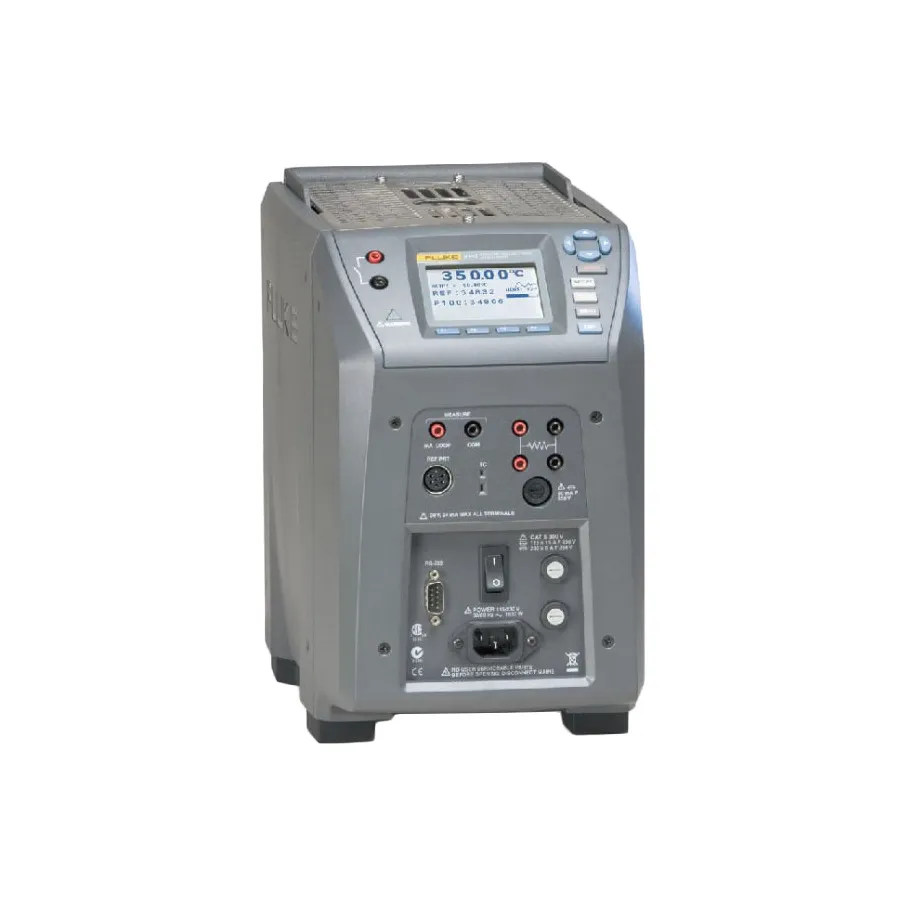

Fluke 9143-E-P-156 Dry-Well Field Calibrator with Process Electronics

Overview

The Fluke 9143-E-P-156 is a portable field metrology well equipped with integrated process electronics for comprehensive temperature measurement and transmitter calibration. Designed for industrial process environments, it features rapid temperature reach capabilities, dual-channel sensor readout with loop power supply, and on-board automation for documenting calibration tests. The unit weighs less than 8.2 kg (18 lb), making it easily transportable for field use.

Key Features

• Temperature range: 33°C to 350°C (91°F to 662°F)
• Built-in two-channel process electronics readout
• Measures RTDs, Thermocouples, 4-20 mA transmitters with 24V loop power
• Display accuracy: ±0.2°C full range
• Stability: ±0.02°C at 33°C, ±0.02°C at 200°C, ±0.03°C at 350°C
• Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Automated thermal switch test functionality
• On-board documentation of up to 20 tests with alphanumeric ID assignment
• Large LCD display visible in poor lighting
• Visual and audible stability indicator
• Compatible with Fluke 754 Process Calibrator
• IEC-17025 NVLAP-accredited calibration certificate

Insert E Specifications

• Metric miscellaneous configuration
• Hole sizes: 4 mm, 6 mm, 8 mm, 10 mm, 1/4 in (1 hole)
• Immersion depth: 150 mm (5.9 in)

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration and verification
• RTD and PRT calibration
• Thermostatic switch testing
• Industrial thermometer verification
• Process control verification

Included Accessories

• 9143-E-P-156 Metrology Well with Insert E
• User manual and technical manual on CD
• Serial cable
• 9930 Interface-it software
• Calibration report
• Test leads
• Insert removal tool
• 6-pin DIN connector for reference probe
