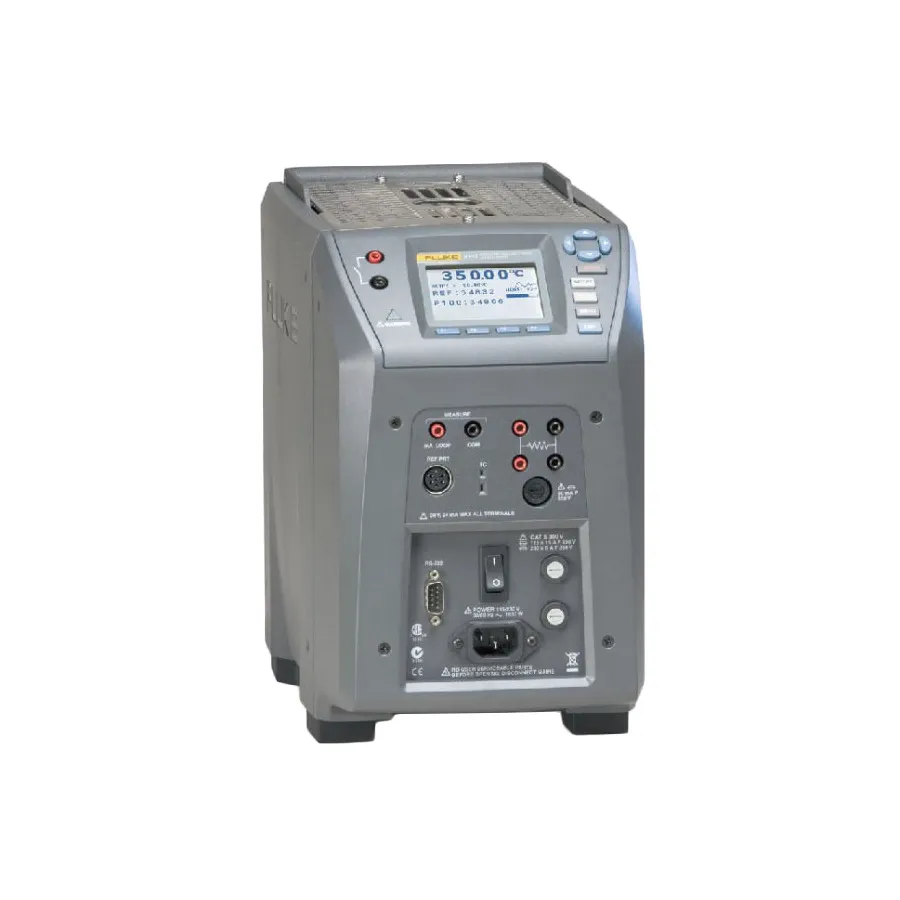

Fluke 9143-E-156 Dry-Well Field Calibrator

Overview

The Fluke 9143-E-156 is a field metrology well designed for industrial process environments, offering fast speed to reach temperature settings. Featuring a built-in gradient-temperature compensation system, this portable instrument weighs less than 8.2 kg (18 lb) with a small footprint, making it ideal for transmitter loop calibrations, comparison calibrations, and thermocouple sensor checks in the field.

Key Features

• Temperature range: 33°C to 350°C (91°F to 662°F)
• Display accuracy: ±0.2°C full range
• Stability: ±0.02°C at 33°C, ±0.02°C at 200°C, ±0.03°C at 350°C
• Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Axial uniformity: ±0.04°C at 33°C, ±0.1°C at 200°C, ±0.2°C at 350°C (at 40 mm depth)
• Large LCD display visible in poor lighting conditions
• Visual and audible stability indicator
• Lightweight and portable design with small footprint
• IEC-17025 NVLAP-accredited calibration certificate included

Insert E Specifications

• Metric miscellaneous configuration
• Hole sizes: 4 mm, 6 mm, 8 mm, 10 mm, 1/4 in (1 hole)
• Immersion depth: 150 mm (5.9 in)

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration and verification
• RTD and PRT calibration
• Thermostatic switch testing
• Industrial thermometer verification

Included Accessories

• 9143-E-156 Metrology Well with Insert E
• User manual and technical manual on CD
• Serial cable
• Calibration report
• Insert removal tool
