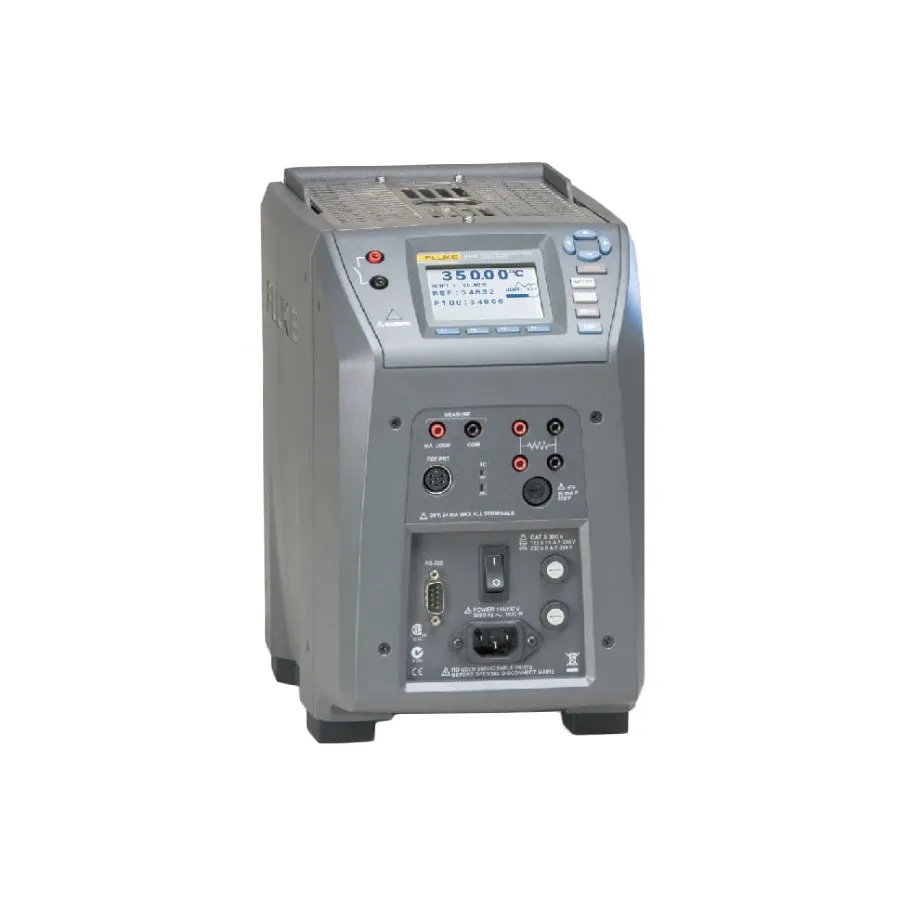

Fluke 9143-DW-P-156 Dry-Well Calibrator

Overview

The Fluke 9143-DW-P-156 is a field metrology well designed for temperature sensor calibration in industrial process environments. With process electronics built-in, this dry-well calibrator combines fast temperature settling with metrology-grade accuracy and comprehensive measurement capabilities. The device offers on-board test documentation for up to 20 calibration events without needing separate instruments.

Key Features

• Temperature range: 33°C to 350°C (91°F to 662°F)
• Display accuracy: ±0.2°C over full range
• Stability: ±0.02°C at 33°C and 200°C, ±0.03°C at 350°C
• Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Axial uniformity at 40 mm: ±0.04°C at 33°C, ±0.1°C at 200°C, ±0.2°C at 350°C
• Built-in two-channel readout for PRT, RTD, thermocouple, and 4-20 mA
• 24V loop supply to power process transmitters
• Automated thermal switch test function
• Non-volatile memory for documenting up to 20 tests with date/time stamps
• Compatible with Fluke 754 Process Calibrator
• Large LCD display with easy-to-navigate menus
• Visual and audible stability indicator
• Lightweight and portable design at less than 8.2 kg (18 lb)

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration or verification
• Calibration of RTDs or PRTs
• Testing of thermostatic switches
• Verification of industrial thermometers
• Field calibration with automated test documentation

Included Accessories

• 9143-DW-P-156 Metrology Well (no insert)
• Users Manual
• Technical Manual on CD
• Serial Cable
• Interface-it Software
• Report of Calibration
• Test Leads
• Insert Removal Tool
• 6-pin DIN Connector for Reference Probe
