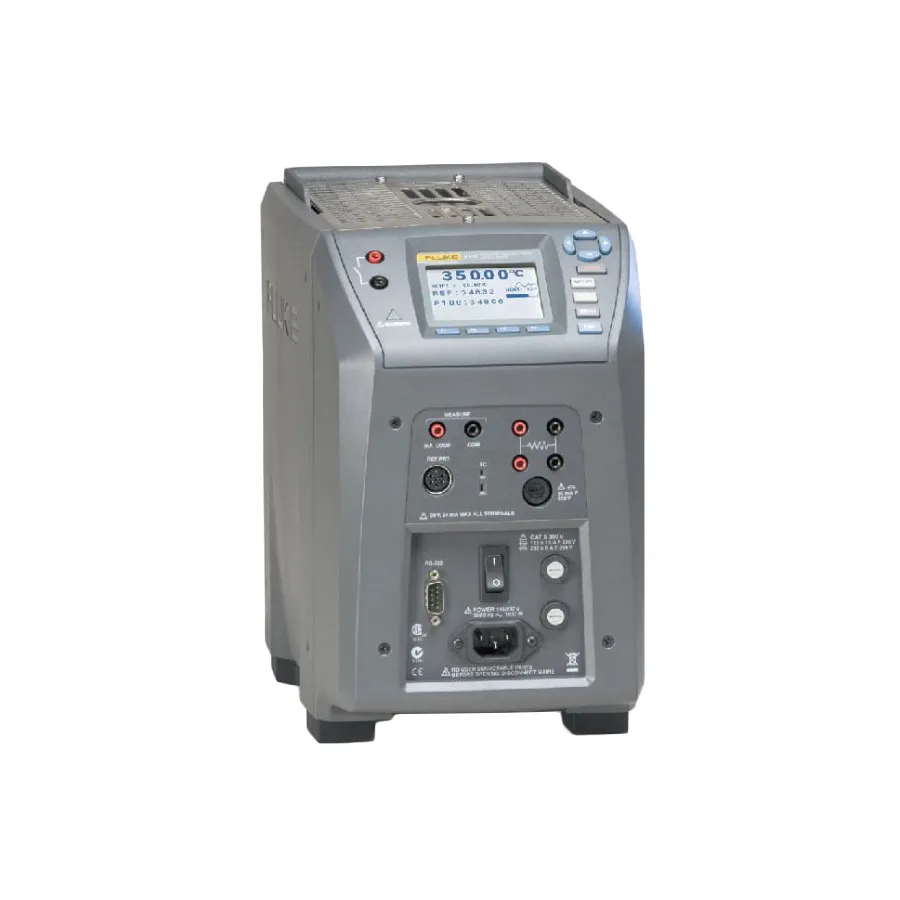

Fluke 9143-DW-156 Dry-Well Calibrator

Overview

The Fluke 9143-DW-156 is a field metrology well designed for industrial process environments. This dry-well calibrator provides fast temperature settling and metrology-grade performance without inserts, making it ideal for comparison calibrations or checks of thermocouple sensors in the field. The device weighs less than 8.2 kg (18 lb) with a compact footprint for easy portability.

Key Features

• Temperature range: 33°C to 350°C (91°F to 662°F)
• Display accuracy: ±0.2°C over full range
• Stability: ±0.02°C at 33°C and 200°C, ±0.03°C at 350°C
• Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Axial uniformity at 40 mm: ±0.04°C at 33°C, ±0.1°C at 200°C, ±0.2°C at 350°C
• Large LCD display for easy visibility
• Visual and audible stability indicator
• Lightweight and portable design
• Metrology performance backed by IEC-17025 NVLAP-accredited certificate
• Immersion depth: 150 mm (5.9 in)

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration or verification
• Calibration of RTDs or PRTs
• Testing of thermostatic switches
• Verification of industrial thermometers

Included Accessories

• 9143-DW-156 Metrology Well (no insert)
• Technical manual on CD
• Serial cable
• Report of calibration
• Insert removal tool
