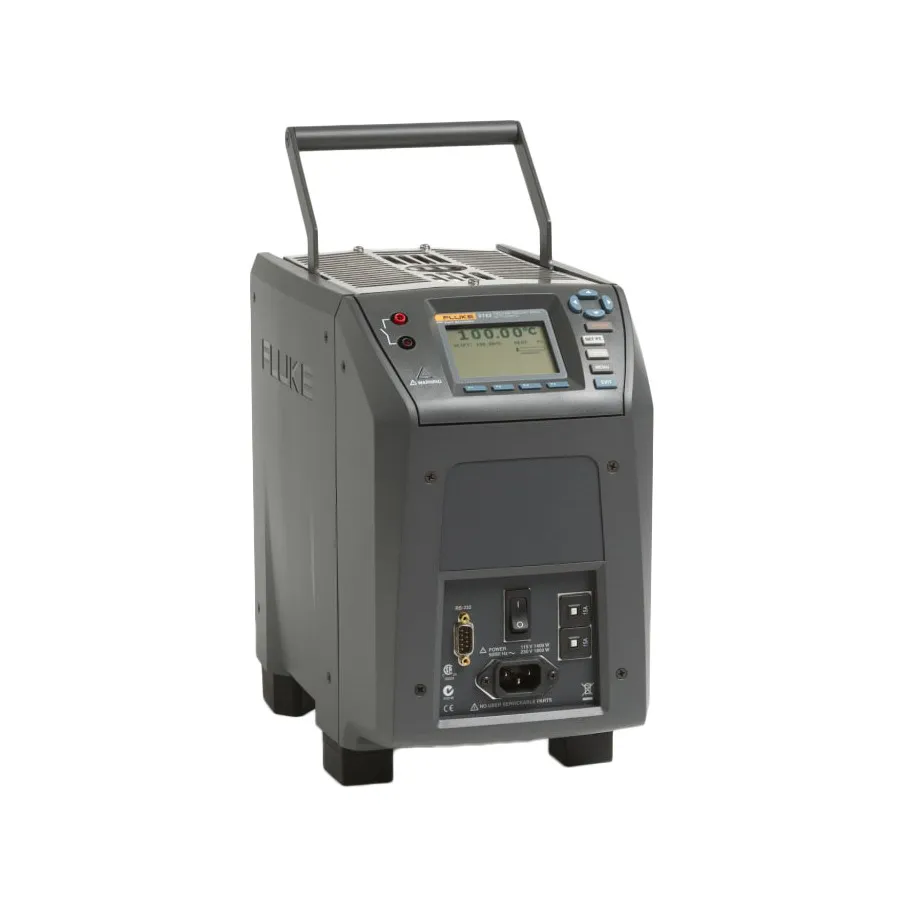

Fluke 9143-D-156 Field Metrology Well

Overview

The Fluke 9143-D-156 is a portable Field Metrology Well for industrial process environments, providing temperature calibration from 33°C to 350°C with metrology-grade performance. Designed for field portability without compromising accuracy, it delivers metrology performance across all six EA criteria: accuracy, stability, axial uniformity, radial uniformity, loading, and hysteresis. The metric Insert D accommodates standard metric probe sizes for comparison calibrations.

Key Features

• Temperature range: 33°C to 350°C (91°F to 662°F)
• Display accuracy: ±0.2°C full range
• Stability: ±0.02°C at 33°C, ±0.02°C at 200°C, ±0.03°C at 350°C
• Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Axial uniformity at 40 mm: ±0.04°C at 33°C, ±0.1°C at 200°C, ±0.2°C at 350°C
• Insert D: metric comparison configuration (3 mm, 4 mm, 6 mm probes)
• Well immersion depth: 150 mm
• Large LCD display with easy menu navigation
• Visual and audible stability indicator
• Lightweight portable design under 8.2 kg
• Built-in gradient-temperature compensation for unstable field environments

Applications

• Transmitter loop calibration with external reference thermometer
• Thermocouple calibration and verification
• RTD and PRT calibration
• Industrial thermometer verification
• Metric probe size comparison calibrations
• Field calibrations in varying environmental conditions

Included Accessories

• Insert D (metric comparison: 3 mm, 4 mm, 6 mm)
• User manual and technical manual on CD
• Serial cable and insert removal tool
• Calibration certificate
