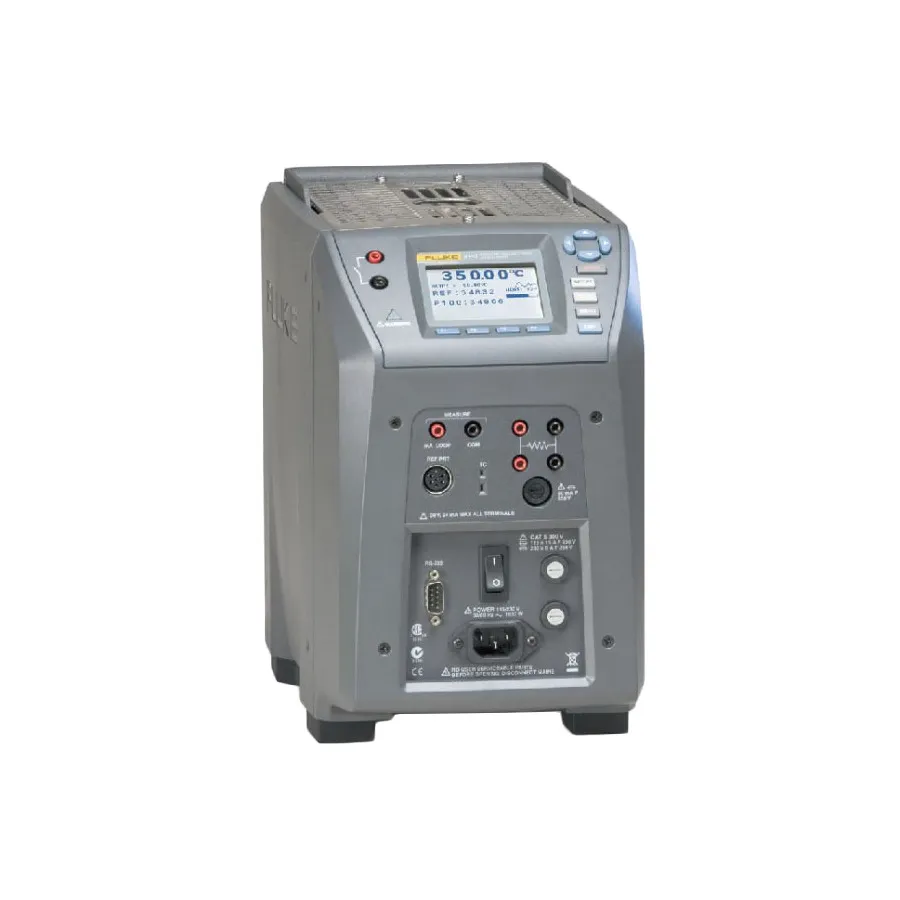

Fluke 9143-C-P-156 Field Metrology Well

Overview

The Fluke 9143-C-P-156 is a portable Field Metrology Well designed for industrial process calibration environments. It provides accurate temperature calibration from 33°C to 350°C with metrology-grade stability and uniformity. The unit includes process electronics with two-channel readout capability, enabling measurement and power supply for RTDs, thermocouples, and 4-20 mA transmitters in a single portable instrument.

Key Features

• Temperature range: 33°C to 350°C (91°F to 662°F)
• Display accuracy: ±0.2°C full range
• Stability: ±0.02°C at 33°C, ±0.02°C at 200°C, ±0.03°C at 350°C
• Radial uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Axial uniformity at 40 mm: ±0.04°C at 33°C, ±0.1°C at 200°C, ±0.2°C at 350°C
• Process electronics with integrated two-channel measurement and 24 V loop power
• Automated thermostatic switch testing
• On-board non-volatile memory for documentation of up to 20 tests with alphanumeric identification
• Selectable 2-wire, 3-wire, or 4-wire RTD measurement modes
• Large LCD display easily visible in dim lighting
• Lightweight and portable design under 8.2 kg

Applications

• Complete transmitter loop calibration with sensor and electronics
• Thermocouple calibration and verification
• RTD and PRT calibration
• Thermostatic switch testing and verification
• Industrial thermometer calibration
• Field comparison calibrations

Included Accessories

• Insert C (6 × 0.25-inch holes)
• User manual and technical manual on CD
• Serial cable and 9930 Interface-it control software
• Calibration certificate with uncertainty analysis
• Test leads and insert removal tool
• 6-pin DIN connector for reference probe
