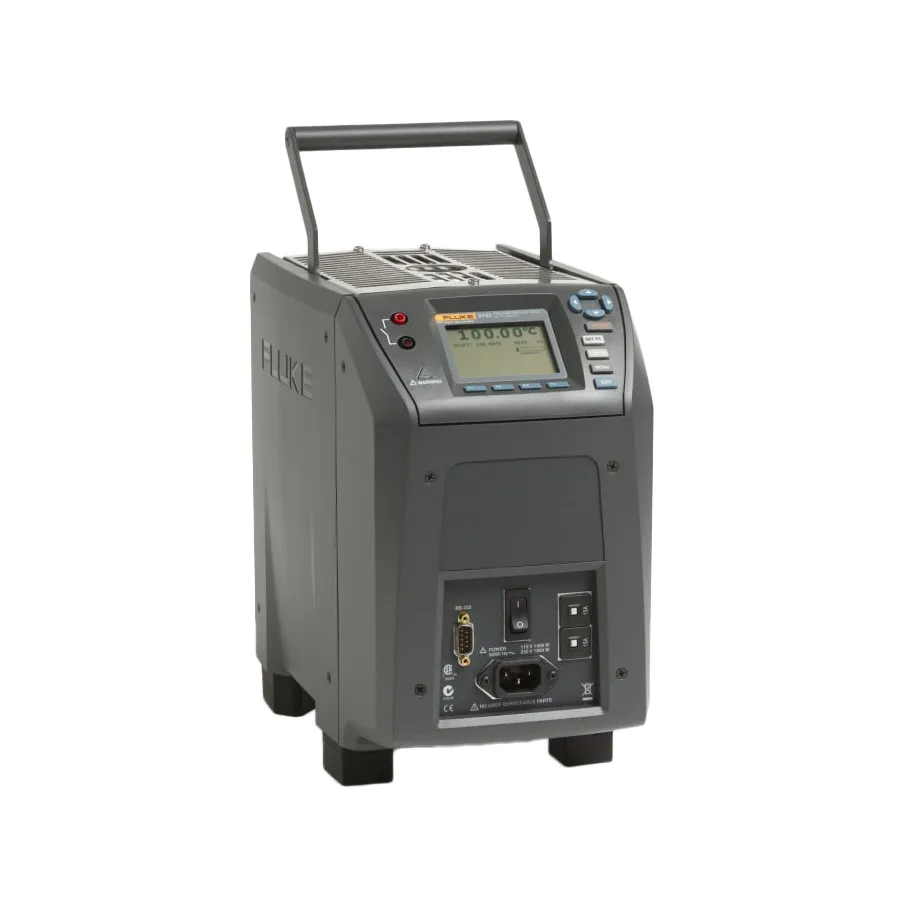

Fluke 9143-C-156 Metrology Well

Overview

The Fluke 9143-C-156 is a portable field metrology well designed for the industrial process environment. With a temperature range of 33°C to 350°C, this dry-block calibrator offers fast speed to reach temperature settings and is ideal for transmitter loop calibrations, comparison calibrations, and thermocouple sensor verification in the field. The unit features built-in gradient-temperature compensation to ensure stable performance in unstable field environments.

Key Features

• Temperature Range: 33°C to 350°C (91°F to 662°F)
• Display Accuracy: ±0.2°C full range
• Stability: ±0.02°C at 33°C, ±0.02°C at 200°C, ±0.03°C at 350°C
• Radial Uniformity: ±0.01°C at 33°C, ±0.015°C at 200°C, ±0.02°C at 350°C
• Axial Uniformity (40 mm): ±0.04°C at 33°C, ±0.1°C at 200°C, ±0.2°C at 350°C
• Hysteresis: 0.03°C
• Immersion Depth: 150 mm (5.9 in)
• Insert C with six 0.25-inch holes accommodates multiple probe sizes
• Large LCD display readable in low-light environments
• Weighs less than 8.2 kg (18 lb) — lightweight and portable
• Visual and audible stability indicator signals readiness to calibrate

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration and verification
• RTD and PRT calibrations
• Thermostatic switch testing
• Industrial thermometer verification

Included Accessories

• Insert C (six 0.25-inch holes)
• User manual
• Technical manual on CD
• Serial cable
• Report of calibration
• Insert removal tool
