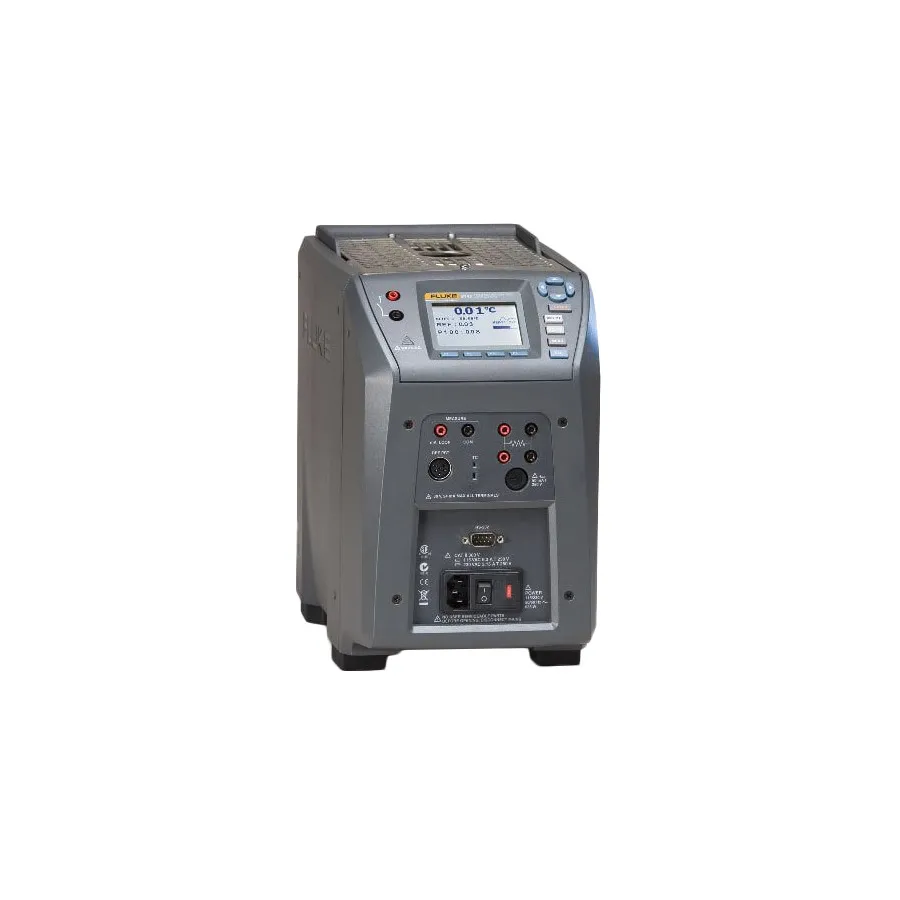

Fluke 9142-E-P-156 Field Metrology Well
Request a quote
Fluke 9142-E-P-156 field metrology well provides -25°C to 150°C range with ±0.2°C accuracy, ±0.01°C stability, and configurable metric probe hole inserts.
Product details
| Model | 9142-E-P-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9142-E-P-156 Field Metrology Well is a lightweight, portable temperature calibration instrument that combines speed with metrology performance. It quickly reaches temperature set points while maintaining stability, uniformity, and precision required for field calibration applications.
Key Features
- Temperature range: -25°C to 150°C at 23°C ambient
- Accuracy: ±0.2°C (full range)
- Stability: ±0.01°C
- Radial uniformity: ±0.01°C
- Axial uniformity: ±0.05°C at 40 mm immersion depth
- Large LCD display and intuitive menu navigation
- Visual and audible stability indicator
- Pre-programmed calibration routines
- Non-volatile memory for up to 20 test records
- Process electronics option with built-in readout for resistance, voltage, 4-20 mA current, and 24 V loop power
Applications
- Loop calibration of temperature transmitters
- Thermocouple calibration and verification
- RTD and PRT calibration
- Testing of thermostatic switches
- Verification of industrial thermometers
Included Accessories
- Insert E (Metric Misc: 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, and 0.25-inch reference hole)
- NVLAP and NIST-traceable calibration certificate
- Power cord
- 9930 Interface-it software
- Test leads (process option only)
- User manual
Specifications
| Series | 9140 Series |
