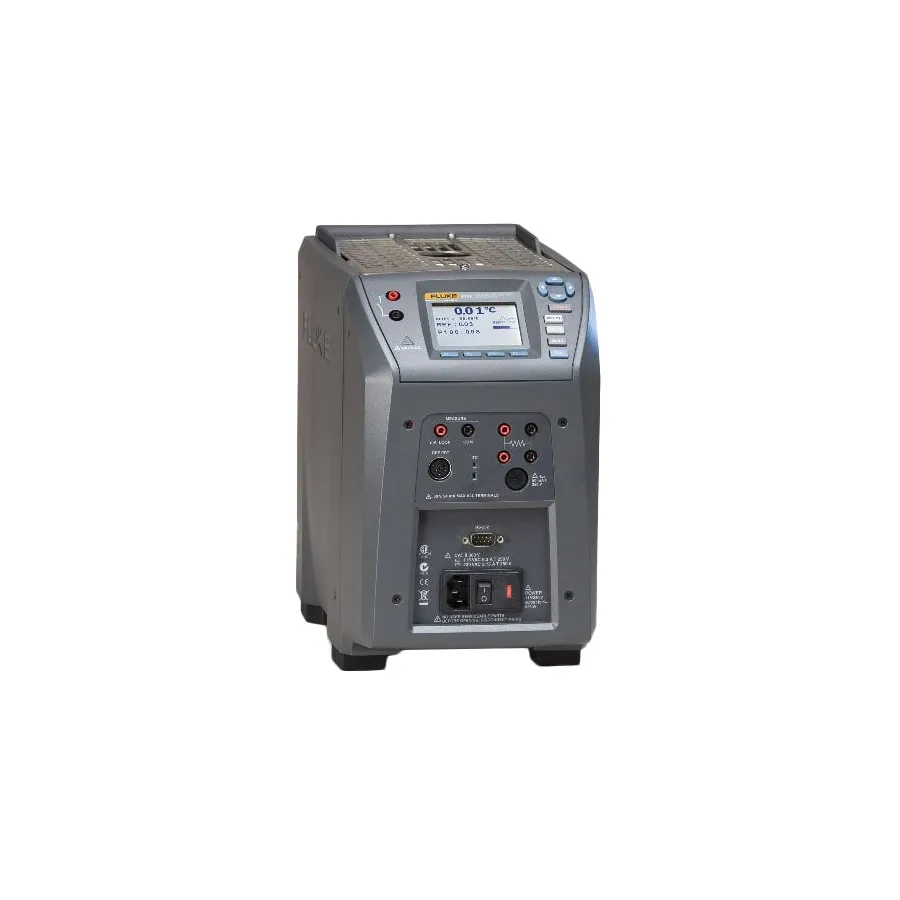

Fluke 9142-DW-P-156 Dry-Well Field Calibrator

Overview

The Fluke 9142-DW-P-156 is a portable field metrology well with integrated process electronics for temperature calibration. The -P designation indicates the presence of built-in readout capabilities for resistance, voltage, 4-20 mA current, and 24 V loop power, eliminating the need to carry additional tools into the field. The unit features fast temperature ramp rates, reaching temperature setpoints quickly while maintaining the stability and uniformity required for metrology-grade calibration.

Key Features

• Temperature range: -25°C to 150°C (at 23°C ambient)
• Accuracy: ± 0.2°C (full range)
• Stability: ± 0.01°C (full range)
• Radial uniformity: ± 0.01°C (full range)
• Axial uniformity at 40 mm (1.6 in): ± 0.05°C
• Immersion depth: 150 mm (6 in)
• Built-in readout for PRT, RTD, thermocouple, 4-20 mA current, and 24 V loop power
• Large LCD display visible in low-light environments
• Visual and audible stability indicator
• Pre-programmed calibration routines stored in memory
• Onboard non-volatile memory for documentation of up to 20 tests
• NIST-traceable IEC-17025 NVLAP-accredited calibration certificate with uncertainty analysis
• Accepts multiple interchangeable inserts for different probe sizes

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration or verification
• RTD or PRT calibrations
• Testing of thermostatic switches
• Verification of industrial thermometers
• Comparison calibration

Included Accessories

• NVLAP and NIST-traceable calibration certificate
• Power cord
• 9930 Interface-it software (RS-232)
• Test leads
• Spare probe connector
• User manual
