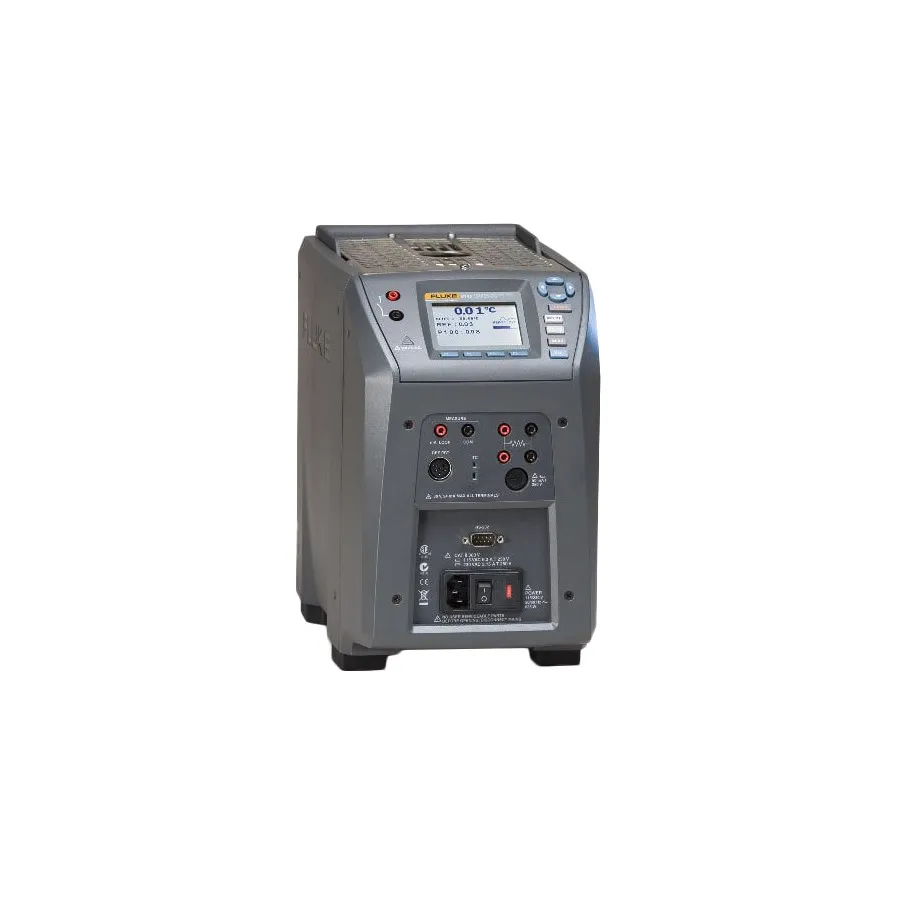

Fluke 9142-D-P-156 Dry-Well Field Calibrator

Overview

The Fluke 9142-D-P-156 is a lightweight, portable field metrology well calibrator with Insert D metric probe holes (2×3mm, 2×4mm, 2×6mm) and built-in process electronics. This model is designed for temperature measurement and sensor calibration in field environments without needing to carry additional tools. The 9140 Series maintains the six key metrology performance criteria: accuracy, stability, axial uniformity, radial uniformity, loading, and hysteresis.

The unit features comprehensive process electronics including readout for resistance, voltage, 4-20 mA current, and 24 V loop power, making it ideal for transmitter loop calibration and comparison calibration work.

Key Features

• Temperature range: -25°C to 150°C (at 23°C ambient)
• Accuracy: ±0.2°C (full range)
• Stability: ±0.01°C (full range)
• Radial uniformity: ±0.01°C (full range)
• Axial uniformity: ±0.05°C at 40 mm immersion depth
• Immersion depth: 150 mm (6 inches)
• Large LCD display with easy-to-navigate menus and function keys
• Visual and audible stability indicator for calibration readiness
• Pre-programmed calibration routines in onboard non-volatile memory (up to 20 tests)
• One-button temperature setpoint control
• Reference readout accepts plug-and-play smart connector
• Built-in process electronics: resistance, voltage, 4-20 mA, and 24 V loop measurements
• Insert D metric comparison holes: 2×3mm, 2×4mm, 2×6mm
• IEC-17025 NVLAP-accredited calibration certificate with uncertainty analysis

Applications

• Loop calibration of temperature transmitters
• Thermocouple calibration and verification
• RTD and PRT calibration
• Testing of thermostatic switches
• Verification of industrial thermometers

Included Accessories

• 9142-D-P-156 Metrology Well with Insert D
• Test leads (process option)
• Spare probe connector (process option)
• Power cord
• 9930 Interface-it software
• NVLAP NIST-traceable calibration certificate
• User's manual
