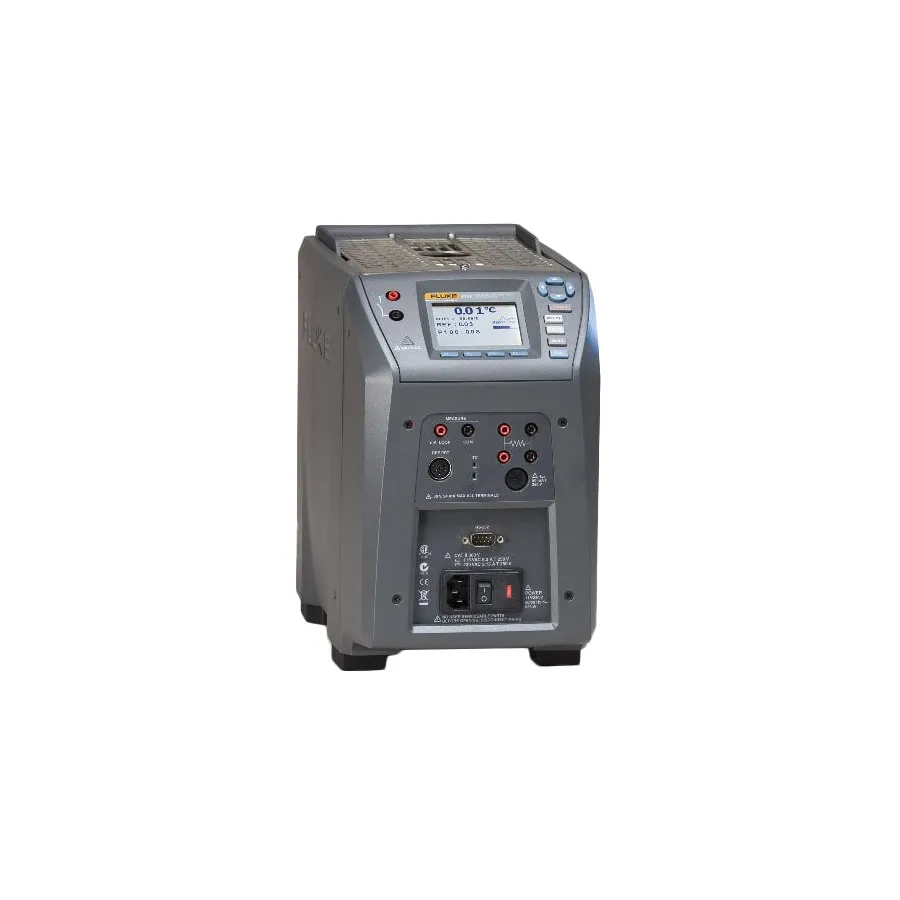

Fluke 9142-B-P-156 Field Metrology Well
Fluke 9142-B-P-156 is a portable field calibrator with temperature range -25°C to 150°C, ±0.2°C accuracy, and ±0.01°C stability.
Product details
| Model | 9142-B-P-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9142-B-P-156 Field Metrology Well is a lightweight, portable instrument for field temperature calibration. It reaches temperature setpoints quickly while maintaining the accuracy and uniformity required by metrology standards. The unit features a large LCD display, intuitive menu navigation, and a visual/audible stability indicator to confirm measurement readiness.
With the P variant, built-in process electronics measure PRTs, RTDs, thermocouples, and 4-20 mA transmitters directly, including 24 V loop power, eliminating the need for external measurement devices. Its compact, portable design makes it ideal for on-site calibration work.
Key Features
- Temperature range: -25°C to 150°C
- Display accuracy: ±0.2°C full range
- Stability: ±0.01°C full range
- Radial uniformity: ±0.01°C
- Axial uniformity at 40 mm: ±0.05°C
- Immersion depth: 150 mm (6 in)
- Insert B: six probe holes (2× 3/16 in, 2× 1/4 in, 2× 3/8 in)
- Large LCD display visible in low-light conditions
- Built-in stability indicator with visual and audible alerts
- Pre-programmed calibration routines
- Non-volatile memory for up to 20 test records
- Process electronics for direct measurement of sensors and transmitters with 24 V loop power
Applications
- Temperature transmitter loop calibration
- Thermocouple sensor calibration and verification
- RTD and PRT calibration
- Thermostatic switch testing
- Industrial thermometer verification
Specifications
| Series | 9140 Series |
