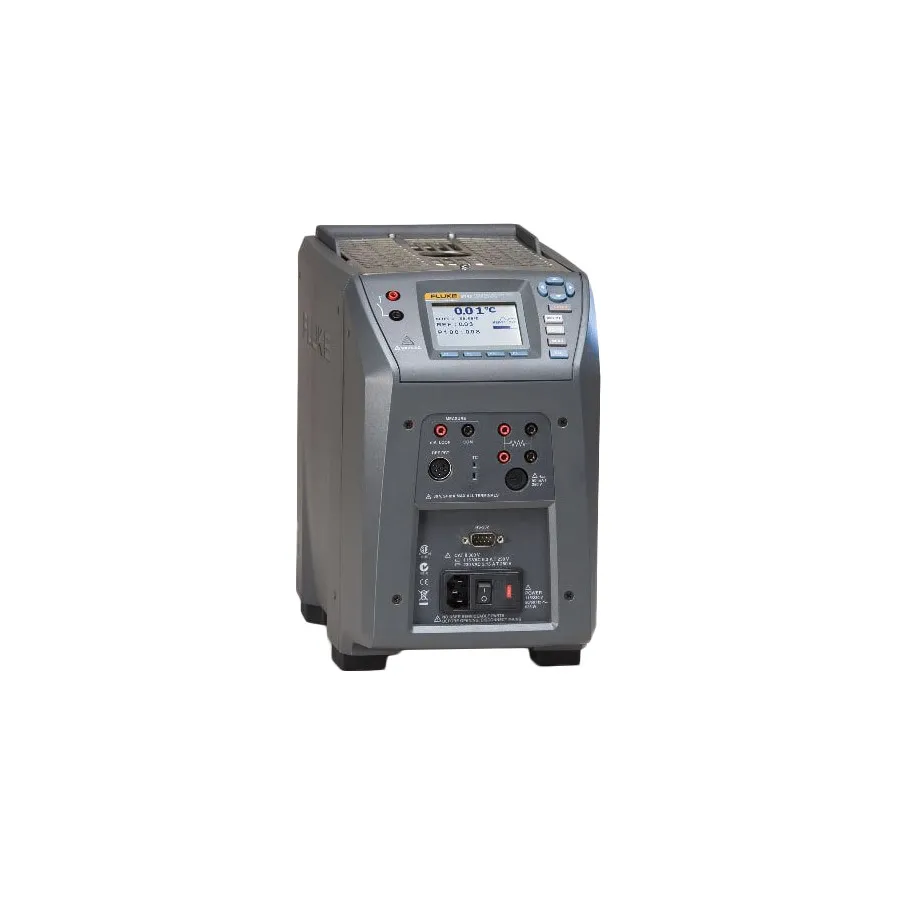

Fluke 9142-A-P-156 Field Metrology Well
Request a quote
Fluke 9142-A-P-156 is a portable field metrology well with -25°C to 150°C range, ±0.2°C accuracy, and Insert A for temperature transmitter calibration.
Product details
| Model | 9142-A-P-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9142 Field Metrology Well is a lightweight, portable dry-well calibrator designed for field use. It achieves stable, uniform, and precise temperature control while maintaining full metrology performance criteria: accuracy, stability, and uniformity. The well is useful for transmitter loop calibration, comparison calibration, or verification of thermocouple sensors.
Key Features
- Temperature range: -25°C to 150°C
- Display accuracy: ±0.2°C full range
- Stability: ±0.01°C full range
- Radial uniformity: ±0.01°C full range
- Axial uniformity at 40 mm: ±0.05°C full range
- Large LCD display visible in low-light conditions
- Visual and audible stability indicator
- Pre-programmed calibration routines
- Onboard non-volatile memory for up to 20 tests
- One-button temperature setting
- Compact and lightweight for field portability
Applications
- Temperature transmitter loop calibration
- Thermocouple calibration and verification
- RTD and PRT calibration
- Thermostatic switch testing
- Industrial thermometer verification
Included Accessories
- Insert A with 1/8", 3/16", 3× 1/4", 3/8" holes
- NVLAP NIST-traceable calibration certificate
- Power cord
- 9930 Interface-it software
- User's manual
Specifications
| Series | 9140 Series |
