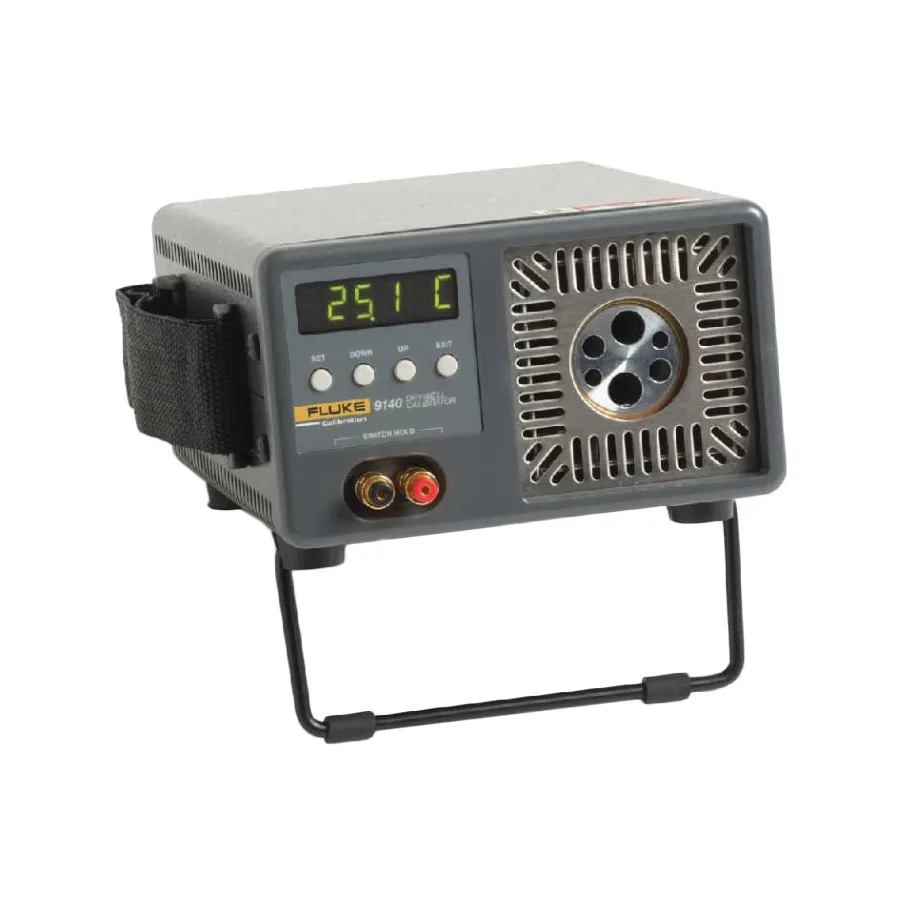

Fluke 9140-DW-156 Dry-Well Calibrator
Request a quote
Fluke 9140-DW-156 is a mid-range dry-well calibrator for thermocouple and RTD probes with 35-350°C range, ±0.5°C accuracy, supplied without inserts.
Product details
| Model | 9140-DW-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9140-DW-156 is a mid-range dry-well calibrator designed for field and laboratory thermocouple and RTD temperature probe calibration. Weighing just 6 pounds, it provides accurate temperature control with minimal maintenance. This model features Fluke's precision Hart hybrid analog/digital controller with a platinum RTD sensor for consistent performance. Note: This unit is supplied without inserts and must be purchased separately.
Key Features
- Temperature range of 35°C to 350°C (95°F to 662°F)
- Accuracy of ±0.5°C for holes greater than 1/4-inch; ±1°C for larger holes
- Reaches maximum temperature in 12 minutes
- Lightweight at 6 pounds for field portability
- Accommodates multiple probe sizes with optional interchangeable inserts
- Adjustable temperature scan rate and heating/cooling rates
- Eight setpoint memory with adjustable readout in °C or °F
- RS-232 interface with Interface-it software included
- Direct interface capability with Fluke 754
- LED front panel display
- Multiple fault protection devices
Applications
- Thermocouple probe calibration
- RTD temperature sensor calibration
- Thermal switch testing and actuation
- Field and laboratory temperature measurements
Included Accessories
- Dry-Well (No Insert)
- Power Cord
- User's Guide
- NIST-traceable Calibration Certificate
Specifications
| Series | 9140 Series |
