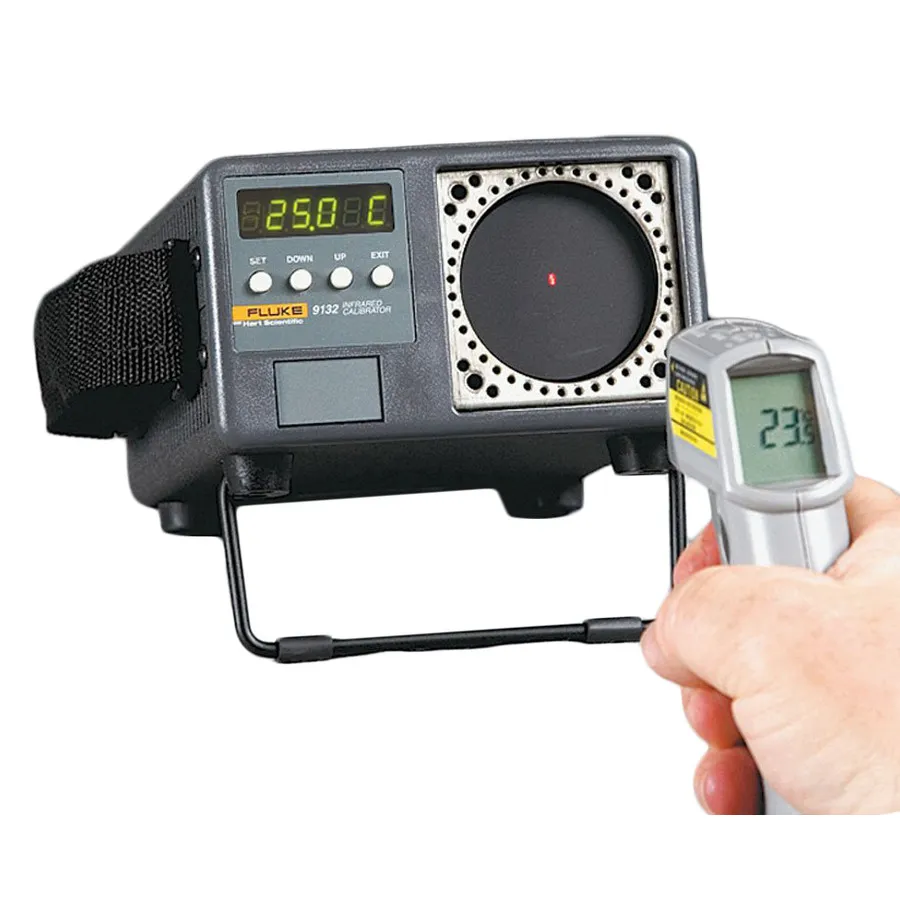

Fluke 9132-156 Infrared Calibrator
Request a quote
Fluke 9132-156 is an infrared calibrator with a 2.25-inch blackbody target for calibrating IR pyrometers from −30 to 500°C with 0.5°C accuracy at 100°C and 0.8°C at 500°C.
Product details
| Model | 9132-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9132-156 is a portable infrared calibrator designed to provide stable blackbody measurement surfaces for calibrating non-contact infrared pyrometers. It features a temperature-controlled blackbody target with a 2.25-inch diameter and a reference well for contact temperature measurement, making it suitable for both in-line and handheld IR thermometer calibration from −30°C to 500°C.
Key Features
- Temperature range: 50°C to 500°C with 0.1° resolution
- Accuracy: 0.5°C at 100°C (0.9°F at 212°F), 0.8°C at 500°C (1.4°F at 932°F)
- Stability: 0.1°C at 100°C, 0.3°C at 500°C
- Blackbody target: 57 mm (2.25 inch) diameter with 0.95 emissivity (±0.02 from 8–14 μm)
- Integrated reference well for contact calibration directly behind the blackbody target
- Heating time: 30 minutes from 50°C to 500°C
- Cooling time: 30 minutes from 500°C to 100°C
- RS-232 computer interface for remote monitoring and control
- Power: 115 V AC (10%), 3 A or 230 V AC (10%), 1.5 A, 50/60 Hz, 340 W
Applications
- Calibration of in-line infrared pyrometers and thermal imaging systems
- Calibration of handheld IR thermometers in industrial and laboratory settings
- Temperature verification and equipment maintenance
