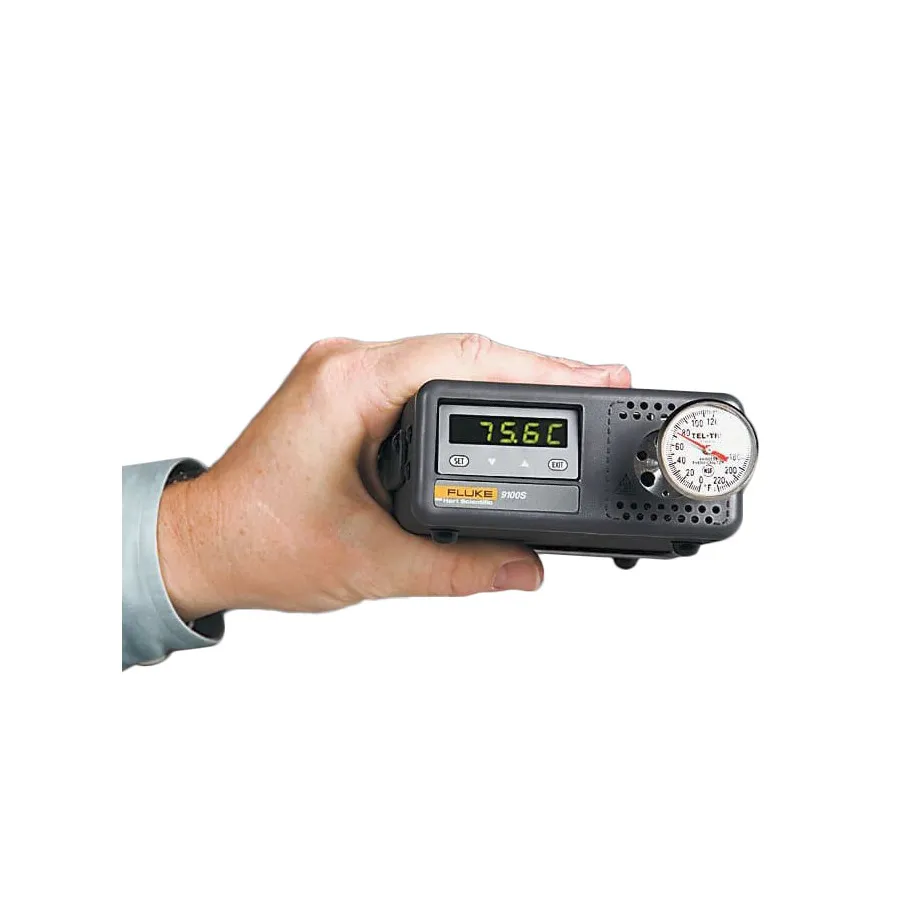

Fluke 9100S-D-156 Handheld Dry-Well Calibrator

Overview

The Fluke 9100S-D-156 is a handheld dry-well calibrator designed for rapid temperature calibration of sensors. Despite its small size (2.25 inches high and 5 inches wide), the 9100S outperforms every dry-well in its class. It features a temperature range from 35°C to 375°C (95°F to 707°F) and is ideal for checking RTDs, thermocouples, and small bimetal thermometers in field applications.

Key Features

• Temperature range: 35°C to 375°C (95°F to 707°F)
• Accuracy: ±0.25°C with stability of ±0.25°C at 50°C
• Heating time: 35°C to 375°C in 9.5 minutes
• Cooling time: 375°C to 100°C in 14 minutes
• Stabilization time: 5 minutes
• Well depth: 102 mm (4 inches); 1.6 mm hole is 89 mm (3.5 inches) deep
• Block D configuration with six holes: two for 3 mm probes, two for 4 mm probes, two for 6 mm probes
• Display resolution: 0.1°C
• RS-232 interface for data communication
• Power: 115V AC (±10%), 55–65 Hz, 1.5 A or 230V AC (±10%), 0.8 A, 45–55 Hz, 175 W

Applications

• Calibration of RTDs and resistance temperature detectors
• Thermocouple verification and calibration
• Bimetal thermometer calibration
• Field temperature sensor verification

Included Accessories

• Power cord
• User's guide with report of calibration
• RS-232 cable
• 9930 Interface-it software and user's guide
