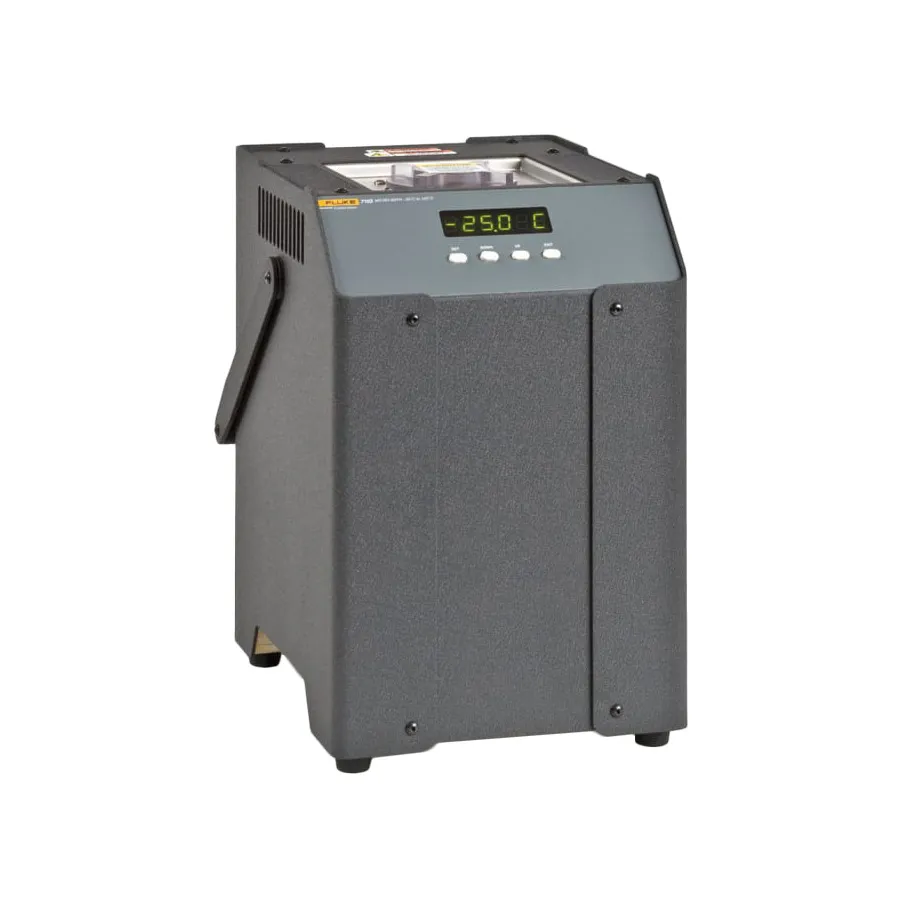

Fluke 7103-156 Micro-Bath

Overview

The Fluke 7103-156 Micro-Bath is a portable temperature calibration instrument for calibrating thermocouples, RTDs, liquid-in-glass thermometers, and bimetal thermometers. With a temperature range of -30°C to 125°C and accuracy of ±0.25°C, it provides the stability and precision of a liquid bath in a compact, field-portable package. The 48 mm diameter, 140 mm deep tank accommodates sensors of any size and shape, making it ideal for field and laboratory calibration work.

Key Features

• Temperature range: -30°C to 125°C (-22°F to 257°F)
• Accuracy: ±0.25°C with stability of ±0.03°C to ±0.05°C depending on temperature
• Resolution: 0.01°C/F
• Well size: 64 mm diameter × 140 mm deep (2.5" × 5.5")
• Fluid capacity: 1.0 L (2.11 pints)
• RS-232 computer interface for data logging and control
• Programmable features: temperature scan rate control, temperature switch hold, eight set-point memory
• Direct interface to Fluke 754
• Adjustable display in Celsius or Fahrenheit
• Hybrid analog/digital temperature controller
• Power: 94-234 V AC (±10%), 50/60 Hz, 400 W

Applications

• Thermocouple and RTD calibration in the field and laboratory
• Portable temperature probe calibration
• Liquid-in-glass and bimetal thermometer calibration
• Temperature sensor verification and compliance testing
• Portable temperature reference standard

Included Accessories

• 7103-156 Micro-Bath unit
• Transport seal lid
• 2085 test lid
• Probe basket
• Stir bar
• Power cord
• NIST-traceable calibration certificate
• Safety information documentation
