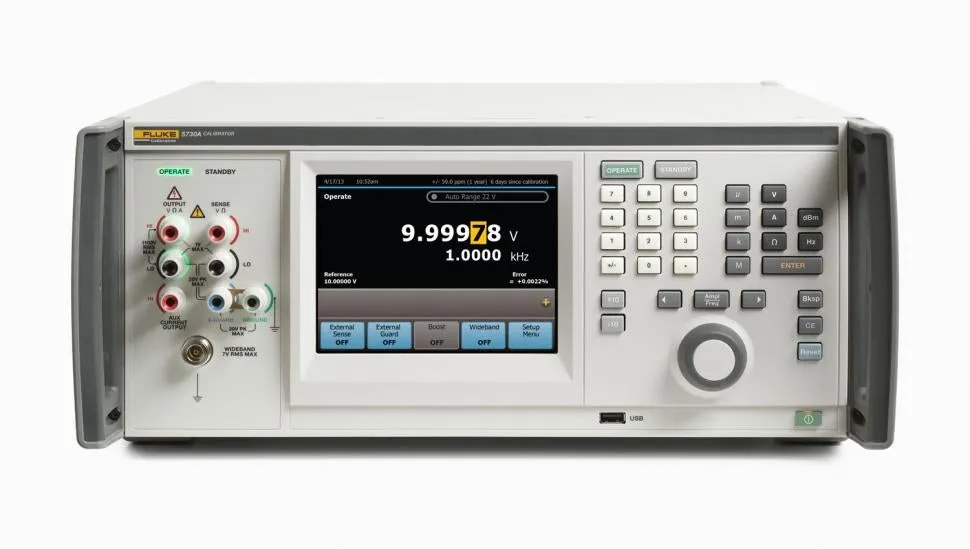

Fluke 5730A High Performance Multifunction Calibrator
Request a quote
Fluke 5730A is a high-performance multifunction calibrator with ±1100 V DC range, 0 to 100 MΩ resistance, and 6.5-inch color touchscreen.
Product details
| Model | 5730A |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 5730A is a high-performance multifunction calibrator designed for calibration laboratories, military, third-party calibration facilities, and corporate users requiring precision electrical measurements. It provides improved specifications for ac voltage, ac current, and resistance compared to previous models, enabling higher test uncertainty ratios (TURs) and increased test confidence. All 5730A units are traceable to international standards with ISO/IEC 17025 accredited calibrations.
Key Features
- 6.5-inch VGA capacitive touchscreen with color graphical user interface
- Improved performance specifications for ac voltage, ac current, and resistance
- Visual Connection Management output terminals guide connections
- Graphical user interface available in nine languages
- Compatible with 52120A and 5725A amplifiers for extended current ranges
- Full MET/CAL compatibility with 5700A and 5720A procedures
- Wideband AC voltage output options (30 MHz and 50 MHz available)
- IEEE-488 (GPIB), RS-232, USB 2.0, and Ethernet interfaces
Specifications
- DC Voltage: 0 to ±1100 V (3.5 ppm + 2.5 µV best 1-year accuracy)
- AC Voltage: 22 µV to 1100 V, 10 Hz to 1 MHz (42 ppm + 8 µV best accuracy)
- Resistance: 0 to 100 MΩ (6.5 ppm best 1-year accuracy)
- DC Current: 0 to ±2.2 A (35 ppm + 7 nA best accuracy)
- AC Current: 9 µA to 2.2 A, 10 Hz to 10 kHz (103 ppm + 8 nA best accuracy)
- Operating Temperature: 0°C to 50°C (calibration: 15°C to 35°C)
- Warm-up Time: Twice the time since last warmed up, maximum 30 minutes
- Settling Time: Less than 5 seconds for all functions and ranges
Applications
- Calibration of digital multimeters up to 8.5-digit resolution
- RF voltmeter calibration with wideband option
- Laboratory metrology and national standards work
- Military and defense calibration requirements
- Third-party and corporate calibration laboratories
Specifications
| Features | Parameters |
| Warm Up Time | Twice the time since last warmed up, to a maximum of 30 minutes |
| Settling Time | Less than 5 seconds for all functions and ranges except as noted |
| Standard Interfaces | IEEE-488 (GPIB) RS-232 USB 2.0 Device Ethernet 5725A 52120A Phase lock in (BNC) Phase reference out (BNC) |
| Temperature | Operating: 0 °C to 50 °C Calibration: 15 °C to 35 °C Storage: -40 °C to 75 °C |
| Operating Altitude | 2000 m maximum |
| Relative Humidity | Operating: < 80% to 30 °C < 70% to 40 °C < 40% to 50 °C |
| Safety | IEC 61010-1: 300 V CAT II, Pollution Degree 2 |
| Analog Low Isolation | 20 V |
| Electromagnetic Environment | IEC 61326-1: Controlled |
| Line Power | 47 Hz to 63 Hz; ±10% 100 V, 110 V, 115 V, 120 V, 200 V, 220 V, 230 V, 240 V |
| Power Consumption | 300 VA |
| Dimensions | Height: 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet |
| Weight | 27 kg 62 lbs |
| Absolute Uncertainty Definition | 5730A uncertainty specifications include; Stability Temperature coefficient Linearity Load regulation and the traceability of the external standards used for calibration. You do not need to add anything to determine the total uncertainty of your calibrator for the temperature range indicated |
| Specification Confidence Interval | 99% and 95% |
| 5730A | Multifunction Calibrator |
