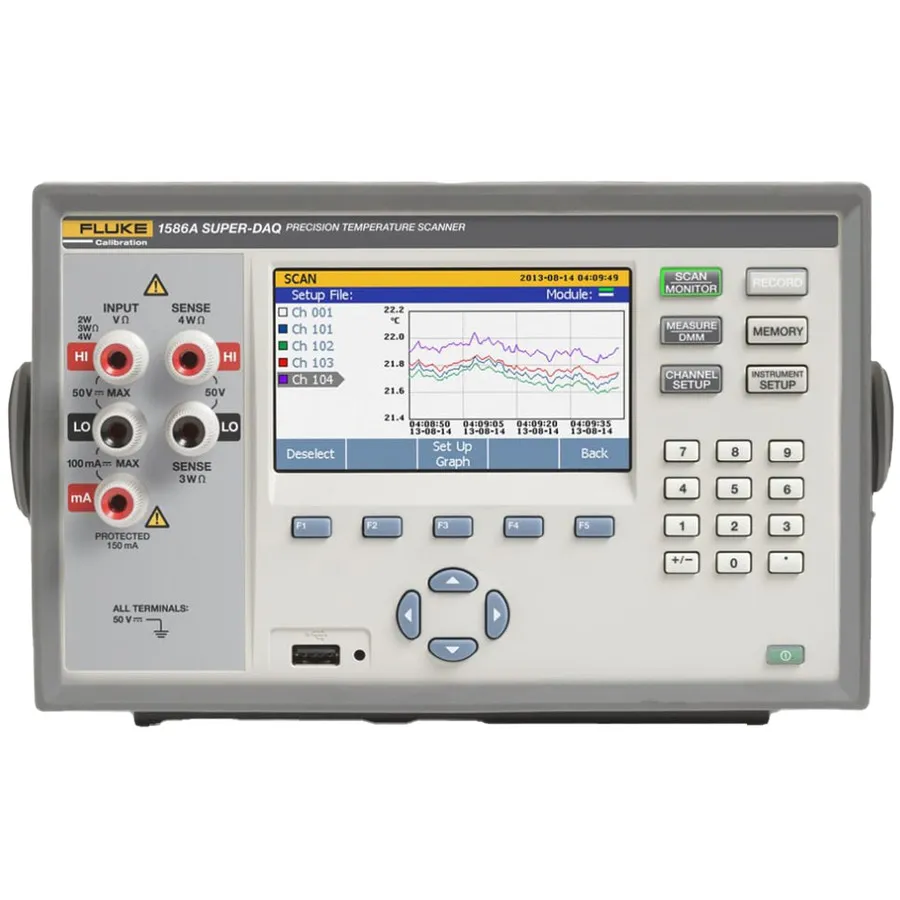

Fluke 1586A/DS-HC 120 Super-DAQ Temperature Scanner with Module and Multiplexer

Overview

The Fluke 1586A/DS-HC 120 Super-DAQ is a precision temperature data acquisition system configured with both an internal High-Capacity Module and an external DAQ-STAQ Multiplexer. This configuration optimizes the system for calibration laboratory applications where maximum accuracy and flexibility are required for measuring multiple sensor types simultaneously.

Key Features

• Dual configuration: High-Capacity Module plus DAQ-STAQ Multiplexer for maximum flexibility
• Best-in-class temperature measurement accuracy: PRTs ±0.005°C, Thermocouples ±0.5°C, Thermistors ±0.002°C
• Up to 40 isolated universal input channels
• Scan speed up to 10 channels per second
• Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
• Real-time color graphing for simultaneous display of up to four channels
• DAQ-STAQ mini-jack thermocouple terminals with individual reference junction sensors
• Patented mini-DWF gold-plated input terminals accepting bare wire, spade lugs, or mini-banana plugs
• 20 MB internal memory for data storage and retrieval
• Automated sensor calibration control for Fluke temperature sources

Applications

• Precision calibration laboratory for PRTs, RTDs, thermistors, and thermocouples
• Multi-sensor temperature validation and mapping
• Automated sensor calibration with Fluke dry-wells and micro-baths
• Thermal testing in regulated industries (pharmaceutical, aerospace, automotive)
• Research and development thermal characterization
