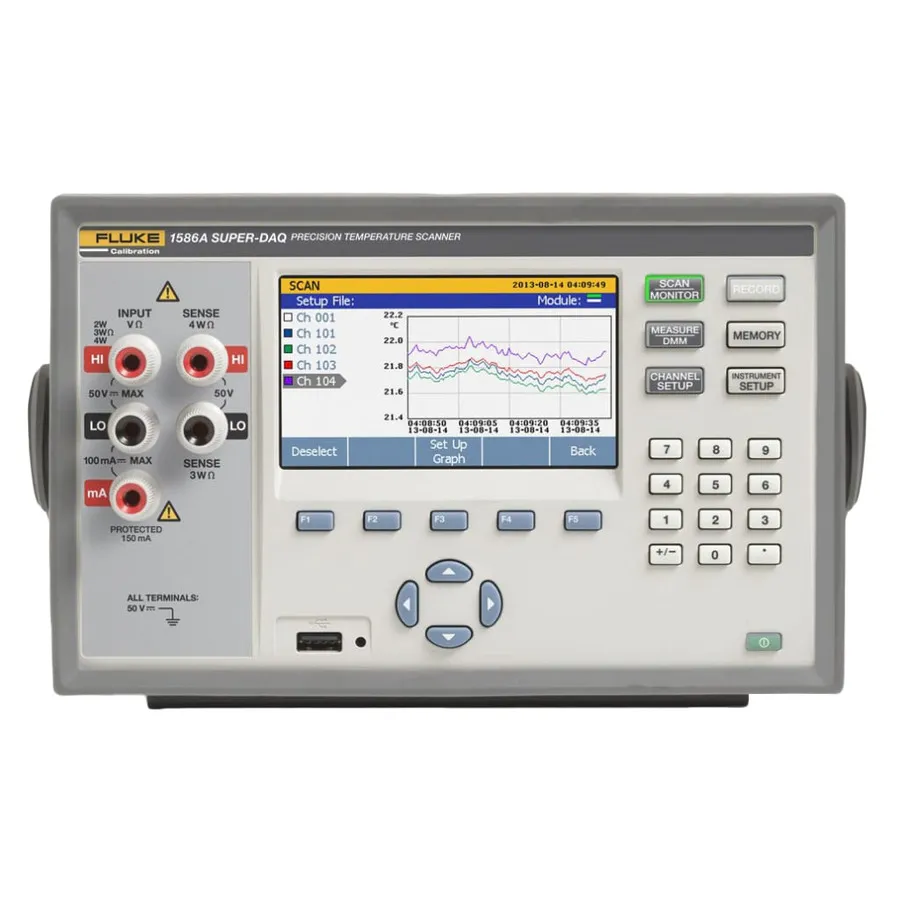

Fluke 1586A/2DS 120/C Super-DAQ

Overview

The Fluke 1586A/2DS/C Super-DAQ is a precision temperature data acquisition system configured with two DAQ-STAQ Multiplexer modules for expanded measurement capacity, including accredited calibration certification. It provides highest-accuracy measurement of thermocouples, PRTs, thermistors, DC voltage, DC current, and resistance across up to 40 isolated input channels. Ideal for thermal mapping, temperature validation, and sensor calibration in pharmaceutical, biotechnology, food processing, aerospace, and automotive industries.

The accredited calibration certification ensures compliance with industry standards and measurement traceability. The DAQ-STAQ Multiplexer modules enable benchtop reference thermometer accuracy for calibration work, with scan speeds up to 10 channels per second.

Key Features

• Best-in-class temperature measurement accuracy: PRTs ±0.005°C, Thermocouples ±0.5°C, Thermistors ±0.002°C
• Up to 40 isolated universal inputs with two DAQ-STAQ Multiplexer modules
• Selectable scan speed up to 10 channels per second
• Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
• Current reversal technique minimizes thermoelectric effects for improved PRT/RTD measurement accuracy
• Real-time color trending with simultaneous charting of up to four channels
• Integration with Fluke Calibration temperature sources for automated calibration routines
• Data recording: up to 20 MB to internal non-volatile memory or external USB drive
• 6½ digit display resolution for DC voltage, DC current, and resistance
• Data security with administrator and user profiles for test traceability
• Mx + B scaling and channel offset zero function
• Independent user-defined alarms for each channel

Applications

• Thermal mapping and temperature validation
• Precision laboratory sensor calibration
• Process sensor calibration
• Pharmaceutical and biotechnology testing
• Food processing quality assurance
• Aerospace component verification
• Automotive sensor validation
