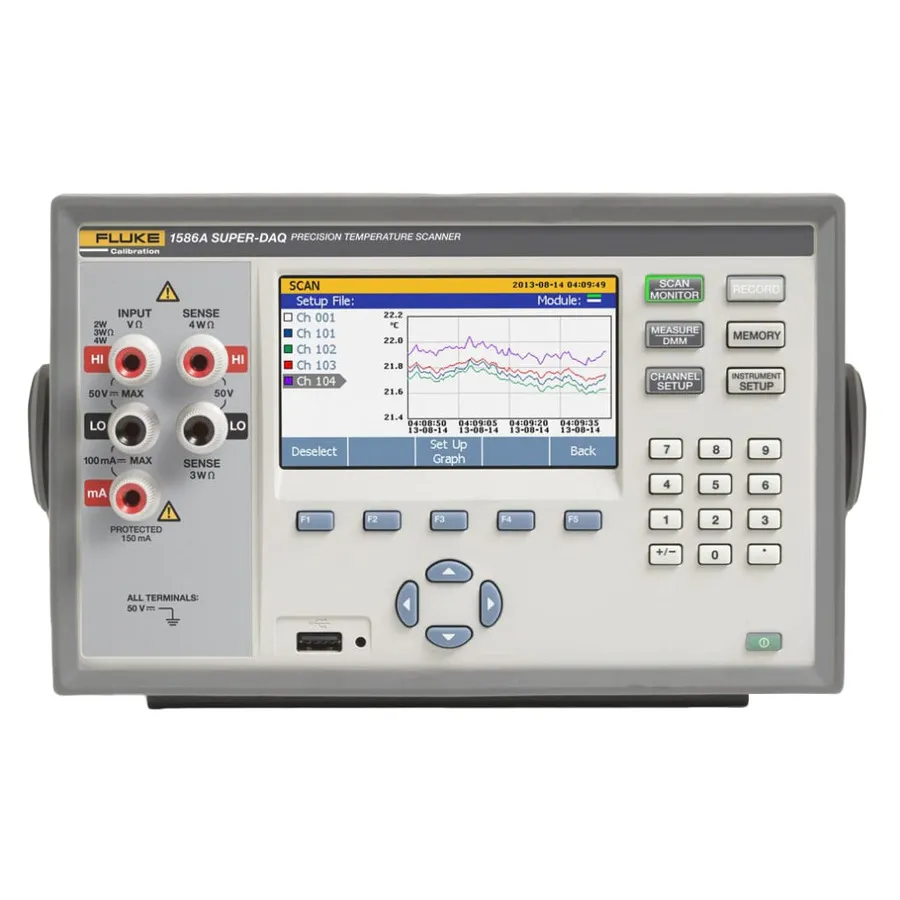

Fluke 1586A/1DS 120/C Super-DAQ Temperature Scanner with DAQ-STAQ Module and Accredited Calibration

Overview

The Fluke 1586A Super-DAQ is a precision temperature data acquisition system designed for measuring thermocouples, PRTs, thermistors, DC voltage, DC current, and resistance across up to 40 isolated input channels. It serves as both a multi-channel data logger and a precision reference thermometer for benchtop sensor calibration, making it ideal for thermal mapping, temperature validation, and process sensor calibration across pharmaceutical, biotechnology, food processing, aerospace, and automotive industries. This model includes accredited calibration certification.

Key Features

• Best-in-class temperature measurement accuracy: PRTs ±0.005°C, thermocouples ±0.5°C, thermistors ±0.002°C
• Up to 40 isolated universal input channels with selectable scan speed up to 10 channels per second
• Four operating modes: Scan, Monitor, Measure, and Digital Multimeter (DMM)
• Real-time color trending for simultaneous monitoring of up to four channels
• Current reversal technology minimizes thermoelectric effects for improved PRT/RTD accuracy
• Control automated calibration routines with Fluke Calibration temperature sources such as dry-wells or micro-baths
• Records up to 20 MB of data and setup files to internal memory or USB drive
• 6.5-digit display resolution for DC voltage, DC current, and resistance measurements
• Administrator and user profiles for data security and test traceability
• Two independent user-defined alarms per channel for threshold monitoring
• Mx + B scaling and channel offset zero function
• Maximum input: 50 V with offset voltage < 2 µV
• Accredited calibration certificate included

Applications

• Thermal mapping and temperature validation
• Process sensor calibration
• Multi-channel data logging in manufacturing and laboratory environments
• Pharmaceutical and biotech process validation
• Aerospace and automotive sensor calibration

Included Accessories

• 1 DAQ-STAQ Multiplexer module
• Accredited calibration certificate
