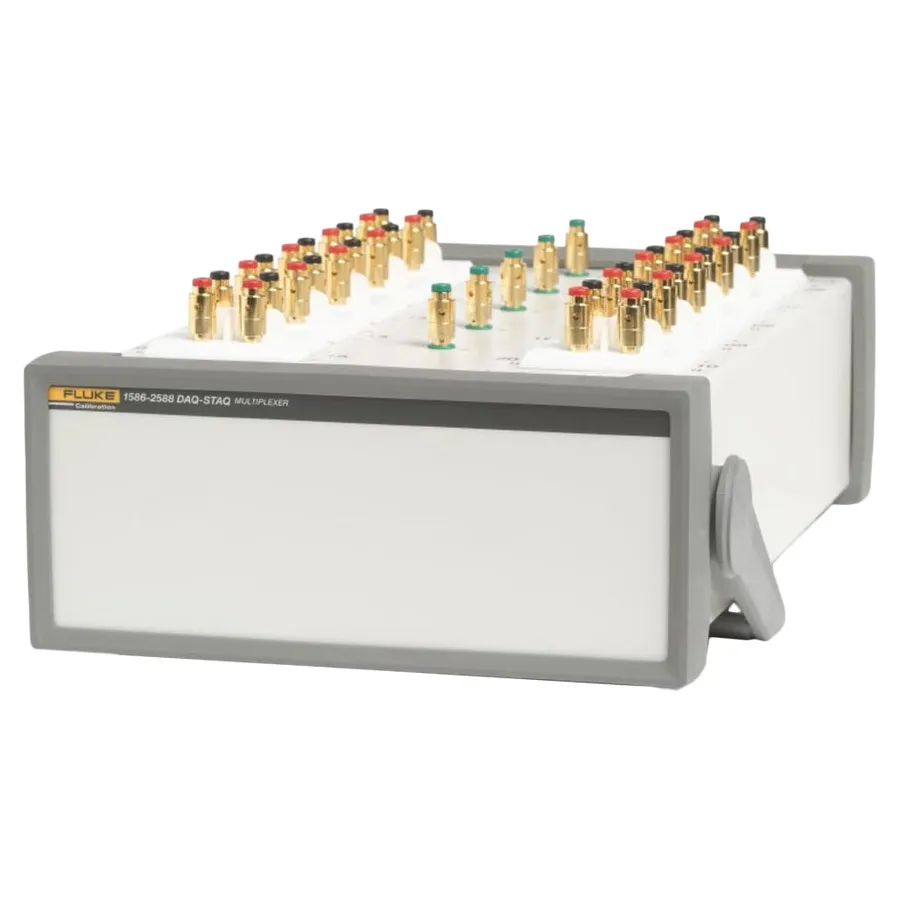

Fluke 1586-2588/C DAQ-STAQ Multiplexer
Request a quote
Fluke 1586-2588/C is a DAQ-STAQ multiplexer module for the 1586A with 20 thermocouple inputs and 10 4-wire connections for temperature calibration.
Product details
| Model | 1586-2588/C |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 1586-2588/C is a DAQ-STAQ multiplexer module designed for use with the Fluke 1586 Super-DAQ thermocouple calibrator. This module is optimized for calibration laboratories where measurement accuracy is critical. It features mini-jack thermocouple terminals, each with its own reference junction sensor, and patented mini-connector input terminals that accept bare wire, spade lug, or mini-banana-plug terminations. The module can be stacked on the 1586 to reduce footprint in busy labs.
Key Features
- 20 mini-jack thermocouple inputs with individual reference junction sensors
- Gold-plated mini-connector input terminals
- Accepts bare wire, spade lug, or mini-banana-plug terminations
- Supports up to 10 4-wire connections for PRTs and thermistors
- Maximum input voltage: 50 V
- Offset voltage: less than 2 µV
- Basic CJC accuracy: 0.25°C
- 3-wire internal resistance mismatch: less than 50 megohm
- Stackable design
- Includes accredited calibration
Applications
- Secondary temperature calibration laboratories
- Thermocouple calibration and verification
- PRT and thermistor measurement
- Benchtop temperature measurement
Included Accessories
- DAQ-STAQ Multiplexer Module
- Accredited Calibration Certificate
