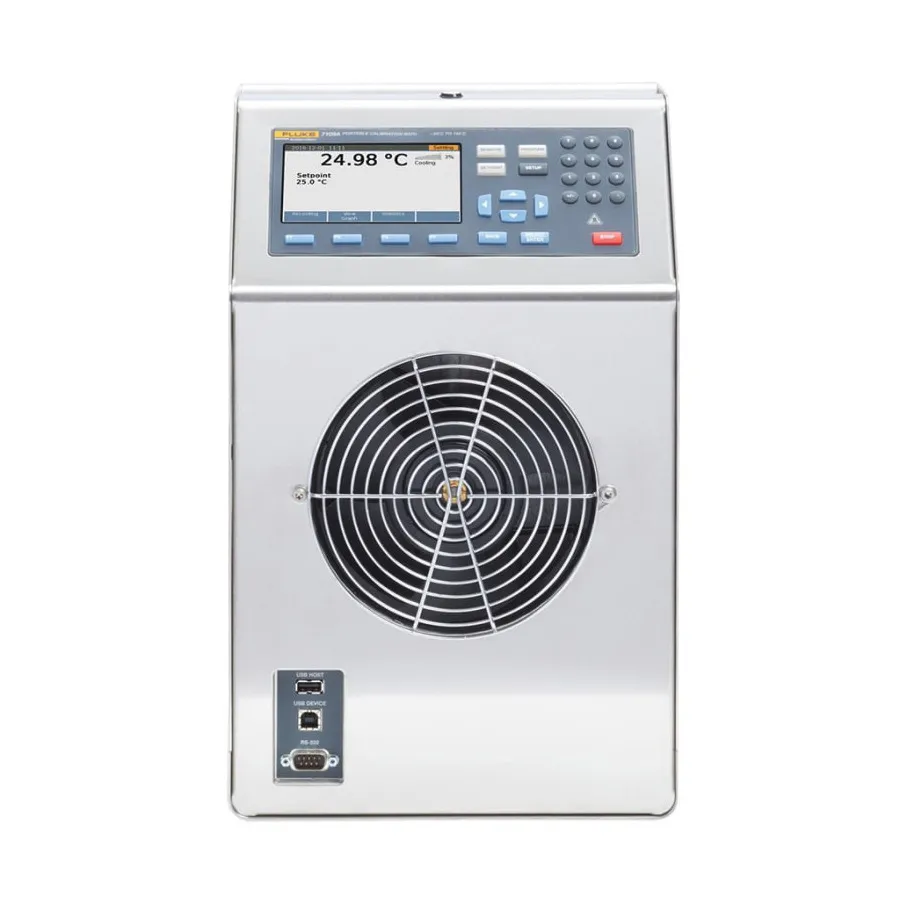

Fluke 7109A-156 Calibration Bath

Overview

The Fluke 7109A-156 is a portable temperature calibration bath designed specifically for clean process manufacturing environments. It features a large stainless steel tank with capacity for up to four tri-clamp sanitary sensors simultaneously, making it ideal for pharmaceutical bioreactors, chemical reactors, steam-in-place processes, autoclave sterilization, and food storage and processing applications. The stainless steel construction withstands harsh sterilizing chemicals and is resistant to bacterial growth, making it well-suited for clean room deployment.

With a display accuracy of ±0.1°C and NVLAP accredited calibration, the 7109A-156 achieves excellent 4:1 test uncertainty ratio for critical applications. The portable design, weighing 16 kilograms (35 pounds), features a stationary bail handle for single-handed transport across stairs, catwalks, and challenging locations. Quick heating and cooling capabilities enable efficient calibration workflows and reduce costly production downtime.

Key Features

• Temperature range: -25 to 140°C (-15°C with cover off)
• Display accuracy: ±0.1°C with 4:1 test uncertainty ratio
• Large color display showing bath fluid temperature, setpoint temperature, and control status
• Tank capacity: 106 mm diameter × 154 mm deep with accommodation for up to four tri-clamp sanitary sensors
• Typical heating time: 25 to 140°C in 55 minutes; -25 to 25°C in 35 minutes
• Typical cooling time: 25 to -25°C in 75 minutes; 140 to 25°C in 45 minutes
• Recommended fluid: Fluke 5012 Silicone oil, 10 centistoke
• Stainless steel casing with sealed keypad resistant to sterilizing chemicals, moisture, and bacterial growth
• Multiple connectivity options: USB host port for data logging, USB device port and RS-232 for remote control
• Portable design: 16 kg (35 lbs) with bail handle and bottom indented handles for easy transport
• Sealed transport cover prevents fluid leaks during transit
• Fan cooling system and stir motor for uniform temperature distribution
• Optional overflow container available
• Optional process input module available (7109A-P models) with RTD terminals, reference PRT connector, thermocouple input, and 4–20 mA transmitter terminals

Applications

• Pharmaceutical bioreactor temperature sensor calibration (-10 to 100°C)
• Chemical reactor sensor calibration (up to 200°C)
• Steam-in-place process verification (122 to 140°C)
• Autoclave sterilization sensor calibration (120 to 135°C)
• Food storage freezer sensor calibration (-25°C)
• Food processing equipment sensor calibration (0 to 220°C range)
• Tri-clamp sanitary sensor qualification in clean room environments

Included Accessories

• Mains power cord
• USB cable
• Probe access cover
• Transport tank cover
• Printed safety information
• Product CD
• Report of calibration with label (NVLAP accredited)
