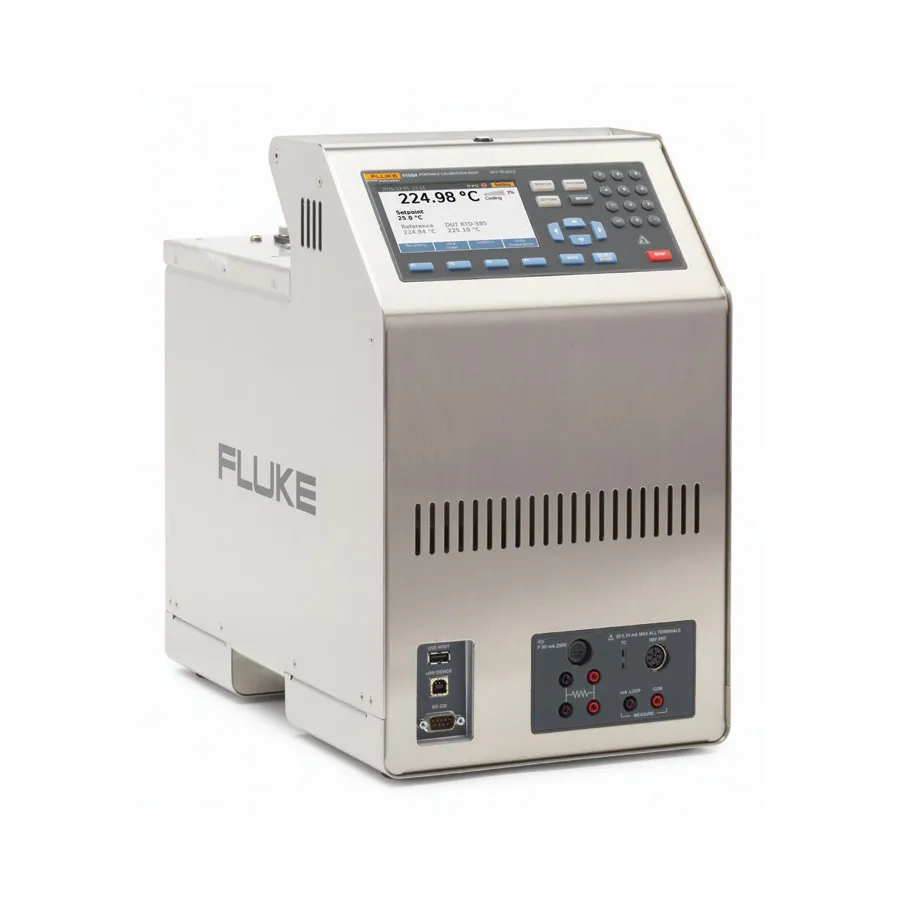

Fluke 6109A-P-156 Calibration Bath

Overview

The Fluke 6109A-P-156 is a portable calibration bath with an integrated process input module designed for temperature sensors in clean process manufacturing. It features a 35–250°C range with ±0.1°C display accuracy and allows simultaneous calibration of up to four tri-clamp sanitary sensors. The process input module enables measurement of RTD, thermocouple, and transmitter outputs, making it ideal for comprehensive sensor verification and calibration.

Key Features

• Wide temperature range: 35 to 250°C
• Display accuracy: ±0.1°C (4:1 test uncertainty ratio)
• Integrated process input module with RTD terminals, thermocouple input, and mA loop connection
• Reference PRT connector for certified reference probes
• Accommodates up to four tri-clamp sanitary sensors simultaneously
• Typical heating time: 25 minutes (35–100°C), 45 minutes (100–250°C)
• Typical cooling time: 35 minutes (250–100°C), 55 minutes (100–35°C)
• Stainless steel housing resistant to harsh sterilizing chemicals
• Portable design with bail handle and bottom indents
• Large color display with USB and RS-232 connectivity
• NVLAP accredited calibration included

Applications

• Pharmaceutical bioreactor temperature sensor calibration
• Chemical reactor sensor verification and measurement
• Autoclave sterilization system sensor calibration
• Food processing equipment sensor calibration
• Transmitter and RTD output verification

Included Accessories

• Mains power cord
• USB cable
• Probe access cover
• Transport tank cover
• Product CD
• Report of calibration with label
• Clamp-on ferrite
• DIN connector
• Test lead kit
