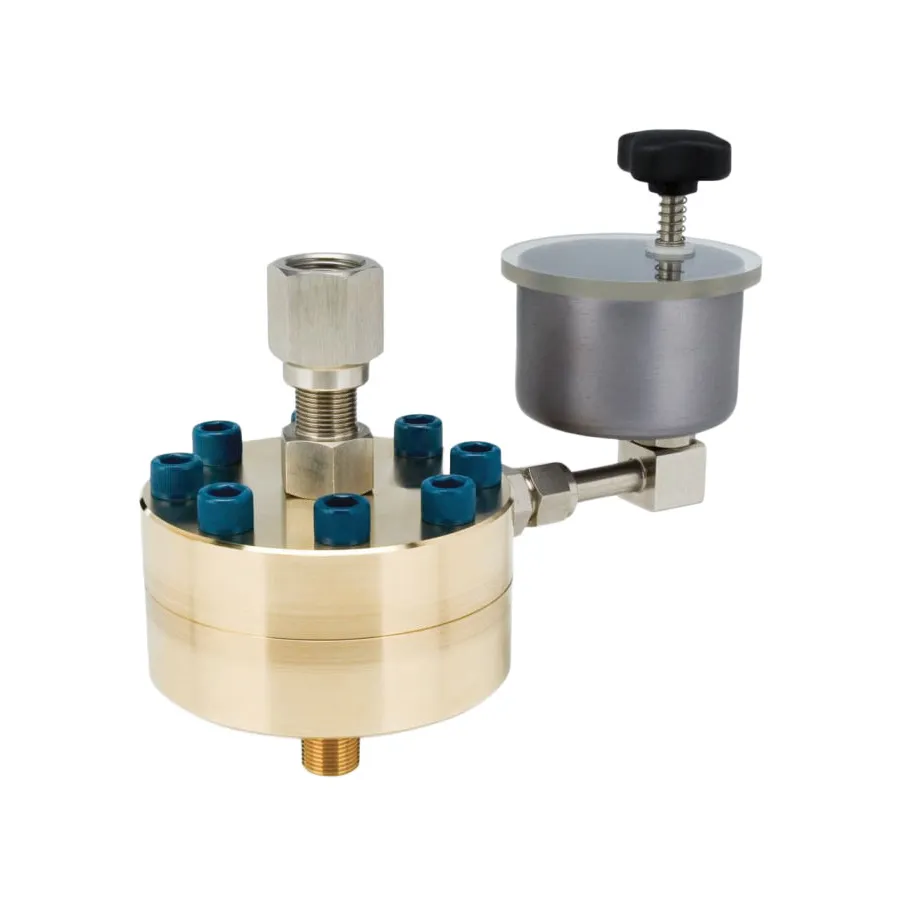

Fluke P5521-70M Liquid-to-Liquid Separator
Request a quote
Fluke P5521-70M is a liquid-to-liquid separator for deadweight testers, rated to 10,000 psi (70 MPa), with aluminum bronze body and Viton diaphragm.
Product details
| Model | P5521-70M |
| Manufacturer | Fluke |
| Category | Calibration Accessories |
| Availability | Made to order |
Description
Overview
The Fluke P5521-70M is a liquid-to-liquid separator designed for use with deadweight testers and comparison test pumps. A flexible diaphragm separates the test fluid from the calibrator fluid, protecting the instrument from contamination while allowing calibration in the device's specific working fluid. This unit is rated for pressures up to 10,000 psi (70 MPa).
Key Features
- Pressure range: 0 to 10,000 psi (70 MPa)
- Body material: Aluminum bronze
- Diaphragm material: Viton
- Reservoir material: Hard-anodized aluminum
- Connection: 3/8 BSP male connector
Applications
- Hydraulic deadweight tester calibration
- Comparison pump testing
- Multi-fluid calibration scenarios
Included Accessories
- P5521-70M Liquid-to-Liquid Separator
