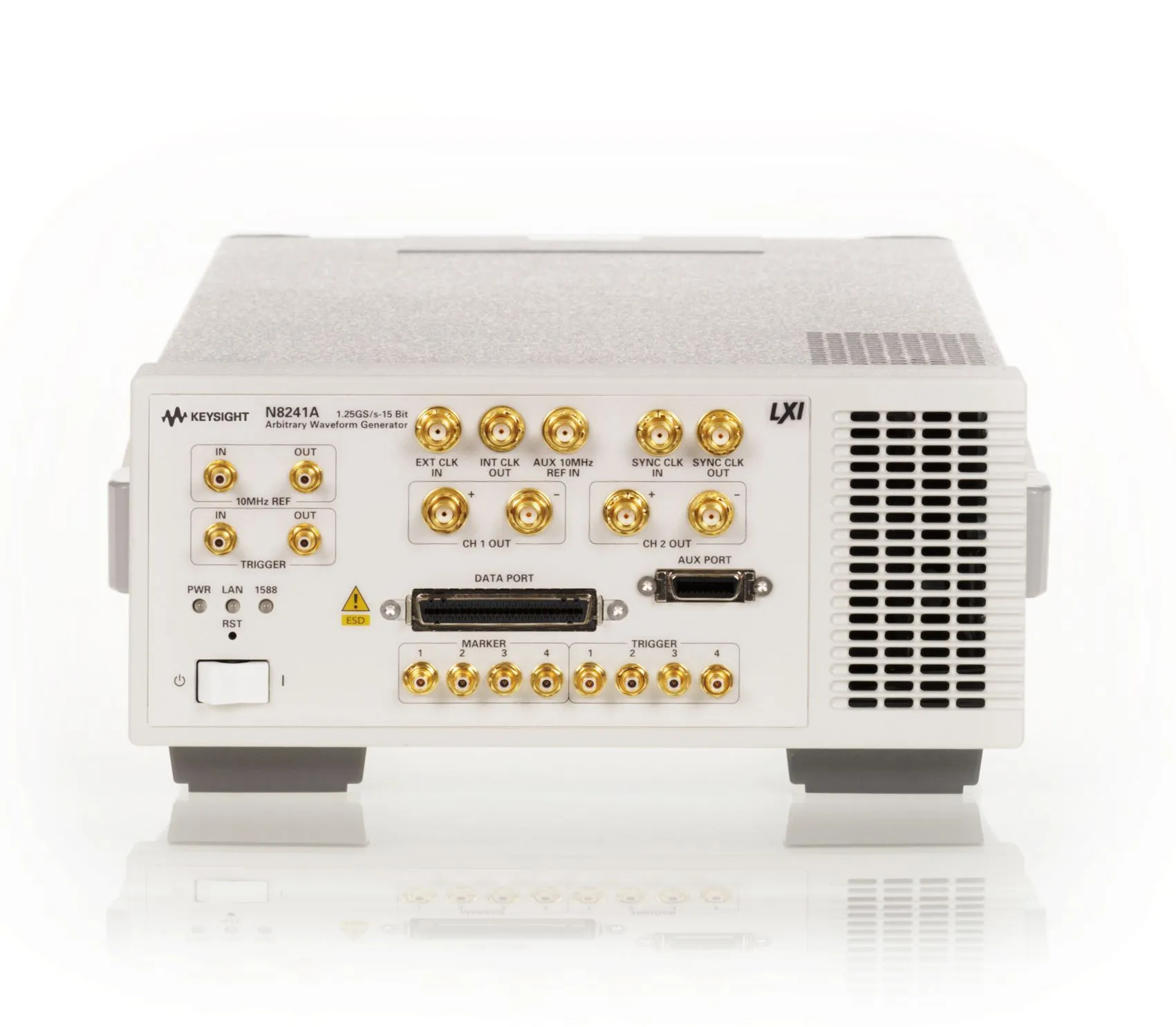

Keysight N8241A Arbitrary Waveform Generator
Request a quote
Keysight N8241A is an LXI-compliant arbitrary waveform generator with 15-bit resolution and 1.25 GS/s sampling for radar and RF signal simulation.
Product details
| Model | N8241A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight N8241A is an LXI-compliant arbitrary waveform generator (AWG) module that combines high resolution with high sampling rates for synthetic signal generation. It is designed for testing complex RF and microwave systems, including radar, satellite, digital radio, and frequency-agile applications. Each channel provides selectable modulation bandwidth and sampling rates for flexible signal simulation.
Key Features
- LXI compliant for standardized test system integration
- 15-bit vertical resolution for precise waveform generation
- Selectable performance: 1.25 GS/s with 500 MHz modulation bandwidth, or 625 MS/s with 250 MHz bandwidth
- Over 65 dBc spurious-free dynamic range for high-fidelity complex signal generation
- Dual-channel with single-ended and differential outputs
- Up to 16 MS waveform memory for complex signal sequences
- Up to 125k definable waveform segments and 16k unique sequences
- IEEE 1588 time-based triggering and LXI hardware trigger bus
- Multiple module synchronization to simulate multi-emitter and multi-path scenarios
- Remote programming via LAN at 100Base-T Ethernet
Applications
- Radar system testing and simulation
- Satellite communication signal generation
- Digital radio and frequency-agile system validation
- IF and RF subsystem testing with optional wideband I/Q upconverter
- Complex signal generation for accurate receiver testing
Specifications
| Channel/Port Count | 1 |
| Maximum Sample/Data Rate | 1.25 GS/s |
