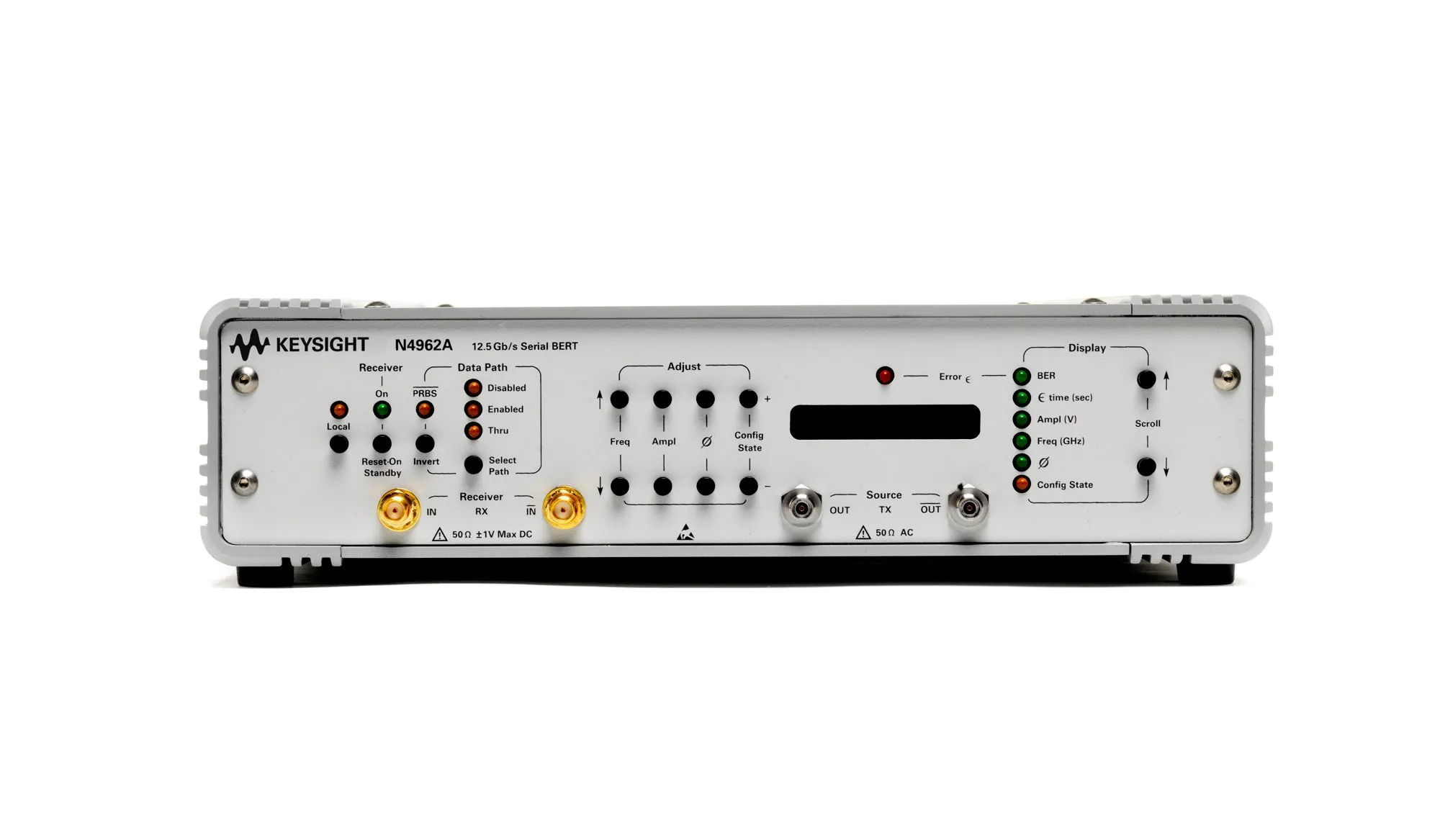

Keysight N4962A Serial BERT
Request a quote
Keysight N4962A — 10G BERT with internal clock synthesizer, PRBS generator, and error detector for production testing and device characterization.
Product details
| Model | N4962A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight N4962A is a cost-effective 10G BERT consisting of an internal clock system, PRBS generator, and error detector designed for automated production-line testing, manufacturing, and characterization. The instrument features highly integrated custom ASICs that lower part count and operating temperature while ensuring high reliability. Its compact design and simple interface make it ideal for use on a production test bench.
Key Features
- Internal clock synthesizer for 9.90 to 11.35 Gb/s operation
- 0.5 to 12.5 Gb/s operation with external clock
- Multiple clock and pattern triggers
- Programmable output amplitude control
- Selectable PRBS pattern length and mark-space density
- Local push-button and GPIB remote interface
Applications
- 10G and lower rate optical transceiver production test
- Communication component incoming inspection
- General 10G device characterization
Specifications
| Features | Parameters |
| Built-in Jitter Injection | No (external with N4963A-101) |
| Clock Data Recovery Built-In | No |
| Differential Outputs/Inputs | Yes |
| Enhanced Measurements | Yes, with N4980A |
| Internal/External Clock | Internal clock 9.85 to 11.35 Gb/s. External clock required for < 9.85 and > 11.35 Gb/s e.g. N4963A |
| PRBS/Memory Data | PRBS only (2n-1) |
| Range of Operation | 0.5 to 12.5 Gb/s |
