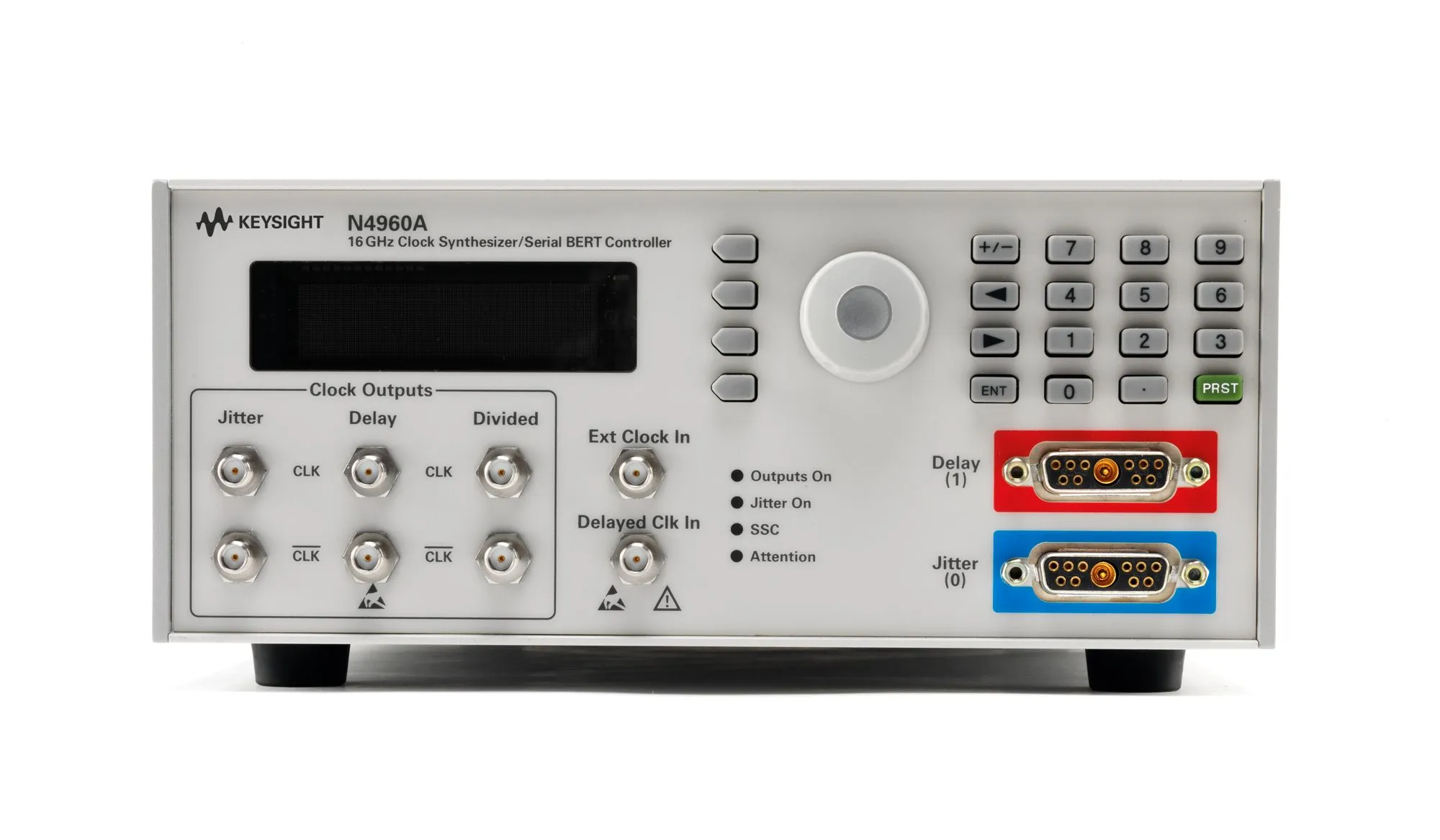

Keysight N4960A Serial BERT Controller
Request a quote
Keysight N4960A is a Serial BERT controller with integrated clock source, jitter injection, and support for multiple channels up to 32 Gb/s with USB and GPIB control.
Product details
| Model | N4960A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight N4960A is an affordable and compact Serial BERT controller designed for testing multiple channels at 25 to 32 Gb/s for 100 Gigabit Ethernet applications and other multi-channel high-data rate devices operating either synchronously or asynchronously. It integrates an N4960A clock/controller with compatible N4951A or N4951B pattern generator and N4952A error detector remote-mountable heads.
Key Features
- Available in 4 to 17 Gb/s or 5 to 32 Gb/s configurations
- Full data rate pattern generation and error detection
- Integrated clock source with jitter injection capability
- PRBS and user-definable test patterns with common telecom/datacom standards
- Remote heads place signal very close to device under test
- Remote control through USB or GPIB interfaces
- Compatible with N4951A/N4951B pattern generator and N4952A error detector heads
Applications
- Multi-channel testing for 100 Gigabit Ethernet at 25 Gb/s and 28 Gb/s (100GBase)
- InfiniBand EDR and FDR testing
- High-speed SerDes characterization
- Fibre Channel testing (16GFC and 32G)
- Transceiver module testing (CFP, SFP, SFP+, XFP)
- Backplane CEI testing
- Synchronous and asynchronous multi-channel operation
Specifications
| Data Rate Range | 4 to 32 Gb/s |
| Configuration Options | 4 to 17 Gb/s or 5 to 32 Gb/s |
| Integrated Clock Source | Yes, with jitter injection capability |
| Pattern Type | PRBS and user-definable patterns |
| Remote Control Interface | USB or GPIB |
| Compatible Pattern Generator | N4951A or N4951B Pattern Generator Remote Head |
| Compatible Error Detector | N4952A Error Detector Remote Head |
