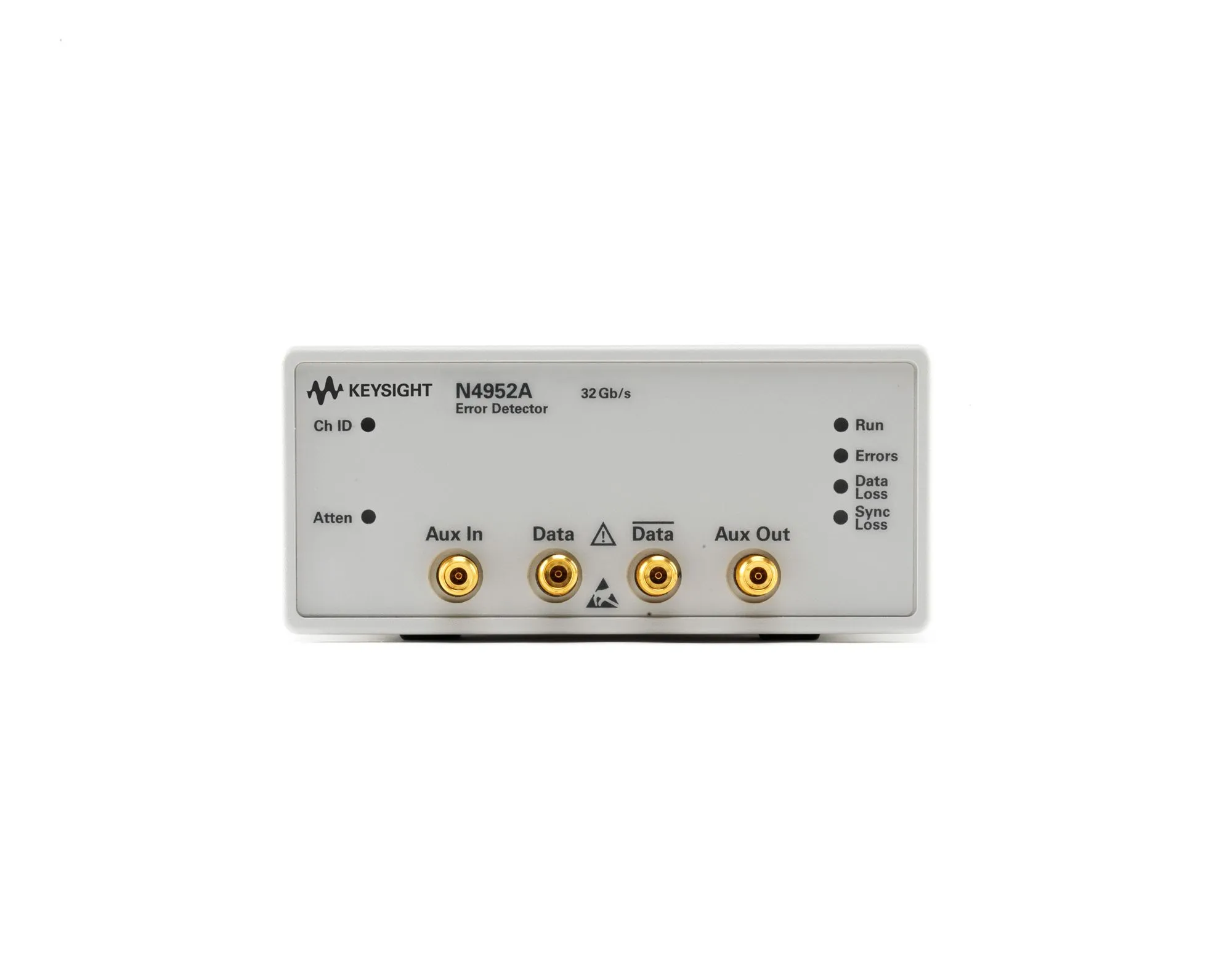

Keysight N4952A Error Detector Remote Head
Request a quote
Keysight N4952A is a compact error detector remote head for high-speed serial testing up to 32 Gb/s with PRBS and user-definable patterns for 100G Ethernet applications.
Product details
| Model | N4952A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight N4952A is a compact error detector remote head for high-speed serial bit error rate testing. It supports data rates from 4 to 32 Gb/s in a single continuous band with no gaps or missing data rates, making it suitable for 100 Gigabit Ethernet and multi-channel high-data rate device testing. The remote head design enables placement very close to the device under test, eliminating the need for long cables that degrade signal quality.
Key Features
- Available in 4 to 17 Gb/s or 5 to 32 Gb/s configurations
- Full data rate error detection with continuous coverage
- Supports PRBS and user-definable test patterns
- Compatible with common telecom and datacom test patterns
- Remote head allows placement very close to device under test
- Compatible with N4960A Serial BERT controller
Applications
- 100 Gigabit Ethernet testing at 25 Gb/s and 28 Gb/s (100GBase)
- InfiniBand EDR and FDR testing
- High-speed SerDes testing
- Fibre Channel testing (16GFC and 32G)
- Transceiver module testing (CFP, SFP, SFP+, XFP)
- Backplane CEI testing
Specifications
| Data Rate Range | 4 to 32 Gb/s |
| Configuration Options | 4 to 17 Gb/s or 5 to 32 Gb/s |
| Pattern Type | PRBS and user-definable patterns |
| Data Rate Continuity | Continuous with no gaps or missing data rates |
| Form Factor | Remote head |
| Compatible Controller | N4960A Serial BERT |
