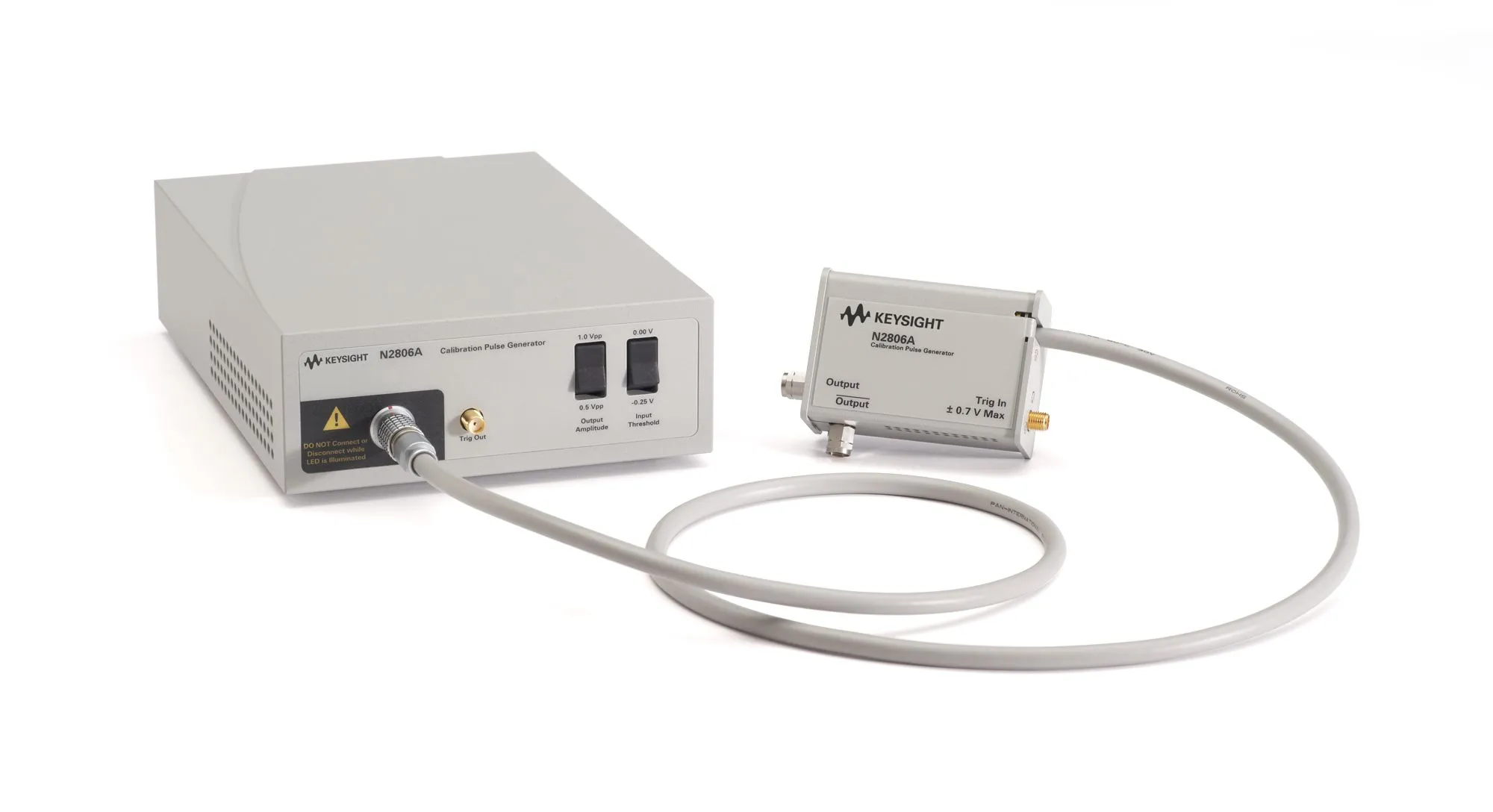

Keysight N2806A Precision Pulse Generator

Overview

The Keysight N2806A is a precision pulse generator that produces step pulses and square waves with world-leading edge speeds and spectral purity. Using a remote head design, the fast edge output connects directly to measurement points, eliminating signal degradation from cables. The generator features 2 differential RF outputs with simultaneous access to rising and falling edges, enabling differential step response measurements and time-domain reflectometry (TDR). The N2806A leverages Keysight's proprietary InP (indium phosphide) differential amplifier technology to achieve unprecedented pulse performance.

Key Features

• World's fastest pulse generator with sub-7 ps fall times and sub-9 ps rise times
• Fully differential on 2 RF outputs with simultaneous rising and falling edge access
• 45 GHz square wave generation with sub-9 ps edge speeds
• Remote head design for minimal cable-induced signal degradation
• Greatest spectral purity and ideal step response for critical calibration applications
• Included in the N2807A PrecisionProbe Advanced Kit for insertion loss characterization up to 63 GHz

Applications

• High-speed signal integrity measurements and TDR analysis
• Precision calibration and metrology applications
• Differential step response characterization
• Broadband RF and microwave component testing
