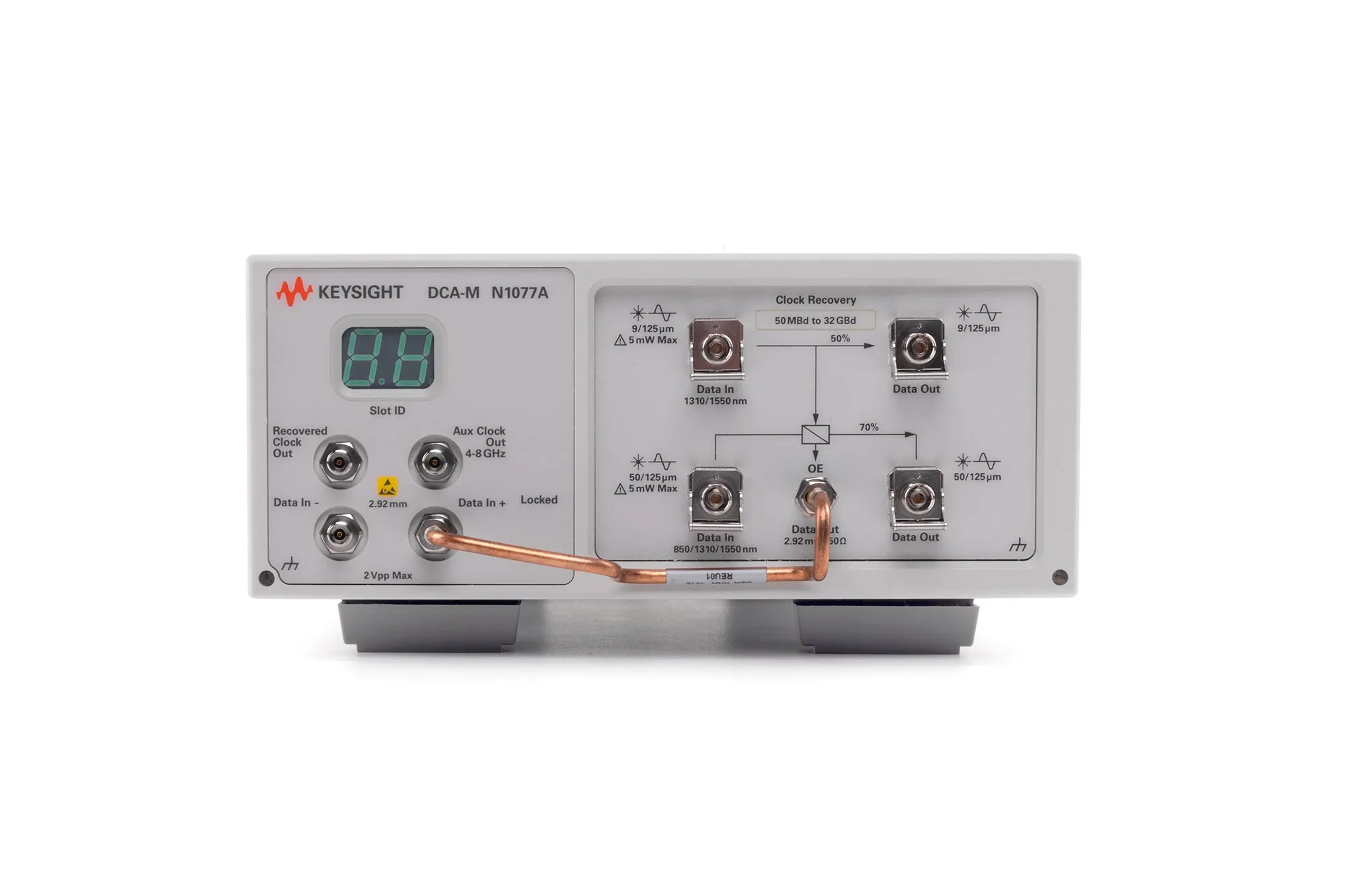

Keysight N1077A Optical/Electrical Clock Recovery Module
Request a quote
Keysight N1077A optical/electrical clock recovery module supports 50 MBd to 32 GBd with integrated optical splitter and standards-compliant PLL.
Product details
| Model | N1077A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
Keysight N1077A is an optical/electrical clock recovery module supporting data rates from 50 MBaud to 32 GBaud for comprehensive testing of optical and electrical communication signals. It provides standards-compliant clock recovery for NRZ and PAM4 signal formats, with integrated single-mode and multimode optical splitter options for improved ease-of-use and streamlined setup.
Key Features
- 50 MBaud to 32 GBaud continuous data rate range for optical and electrical signals
- Standards-compliant clock recovery with Golden PLL design
- Integrated optical splitter for single-mode (9/125 μm) and multimode (50/125 μm) fiber inputs
- Optional Jitter Spectrum Analysis (JSA) for identifying jitter sources and performing PLL compliance testing
- External splitter option for flexible integration scenarios
Applications
- Optical and electrical transceiver testing
- Datacom standards compliance verification
- Fiber optic link characterization
- High-speed signal integrity and jitter analysis
Specifications
| Features | Parameters |
| Bandwidth | n/a |
| Supported Data Rates | 50 Mb/s to 32 Gb/s |
| Input Type | 2.92 mm FC/PC 9/125 um FC/PC 50/125 um |
| Module Type | Optical Electrical |
| Equivalent-Time | No |
| N1077A | The N1077A Optical/Electrical Clock Recovery provides standards-compliant clock recovery capability on optical and electrical signals from 50MBd up to 32GBd |
| N1077A | Optical/electrical clock recovery |
