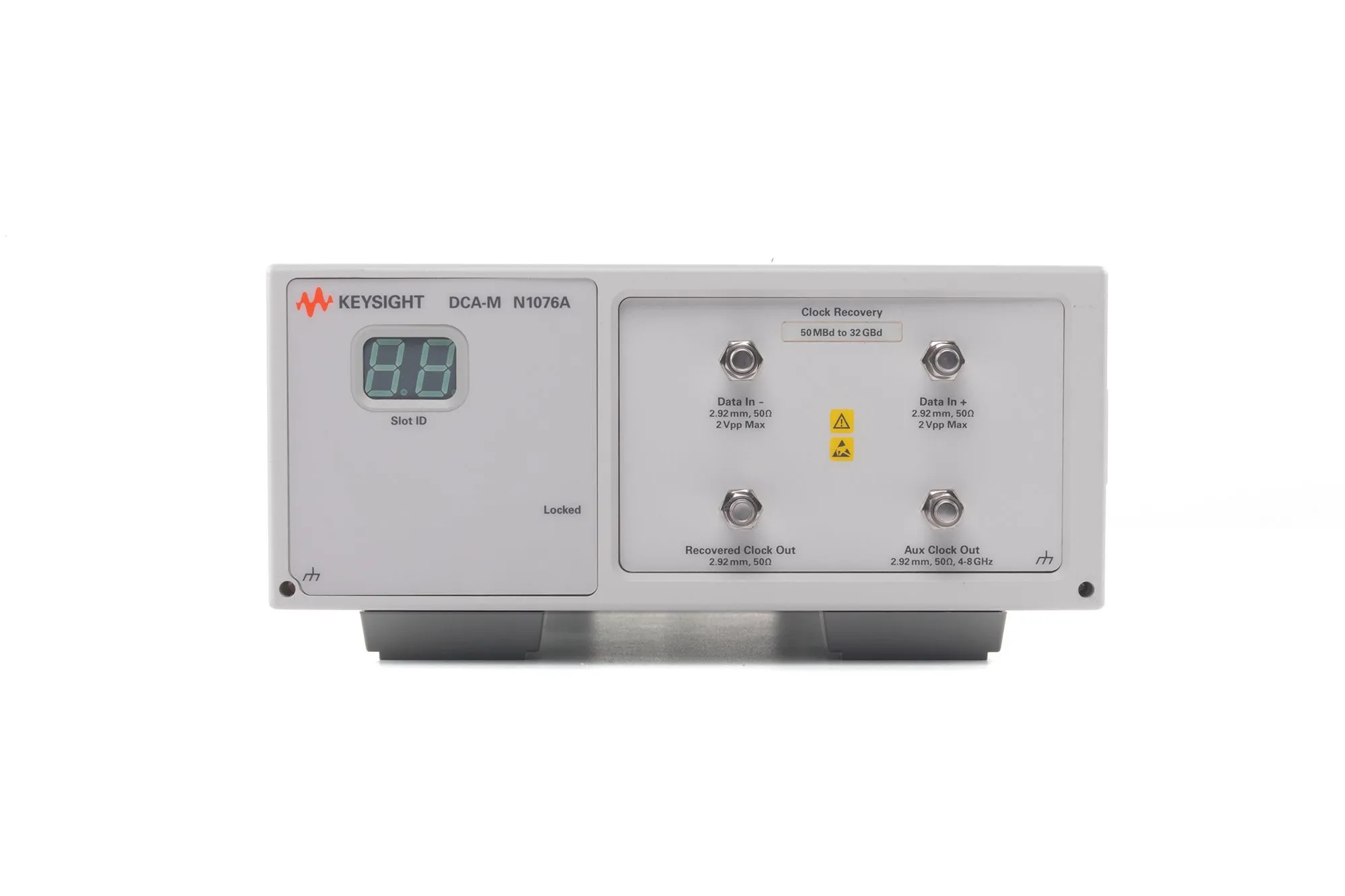

Keysight N1076A Clock Recovery Module
Request a quote
Keysight N1076A supports 50 MBd to 32 GBd clock recovery for optical and electrical waveforms with standards-compliant PLL and optional jitter analysis.
Product details
| Model | N1076A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
Keysight N1076A is a clock recovery module for optical and electrical waveform analysis in high-speed data communications testing. It provides standards-compliant clock recovery for non-return-to-zero (NRZ) and pulse amplitude modulation 4-level (PAM4) signals, ideal for transmitter and receiver test setups in computers, datacom, and communication standards applications.
Key Features
- 50 MBaud to 32 GBaud data rate range for continuous operation on electrical NRZ and PAM4 data signals
- Standards-compliant clock recovery with Golden PLL design and adjustable loop bandwidth up to 20 MHz
- Adjustable peaking for signal optimization
- Optional Jitter Spectrum Analysis (JSA) to identify jitter root causes
Applications
- Transmitter and receiver test setups for high-speed communications
- Computer and datacom standards testing
- Signal integrity analysis for optical and electrical waveforms
- Protocol compliance testing
Specifications
| Features | Parameters |
| Bandwidth | n/a |
| Supported Data Rates | 50 Mb/s to 32 Gb/s |
| Input Type | 2.92 mm |
| Module Type | Electrical |
| Equivalent-Time | No |
| N1076B | Electrical clock recovery |
