Keysight M8197A Synchronization Module
Request a quote
Keysight M8197A is a multi-channel synchronization module for coordinating up to 4 M8195A modules with ±20 ps trigger delay accuracy.
Product details
| Model | M8197A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview

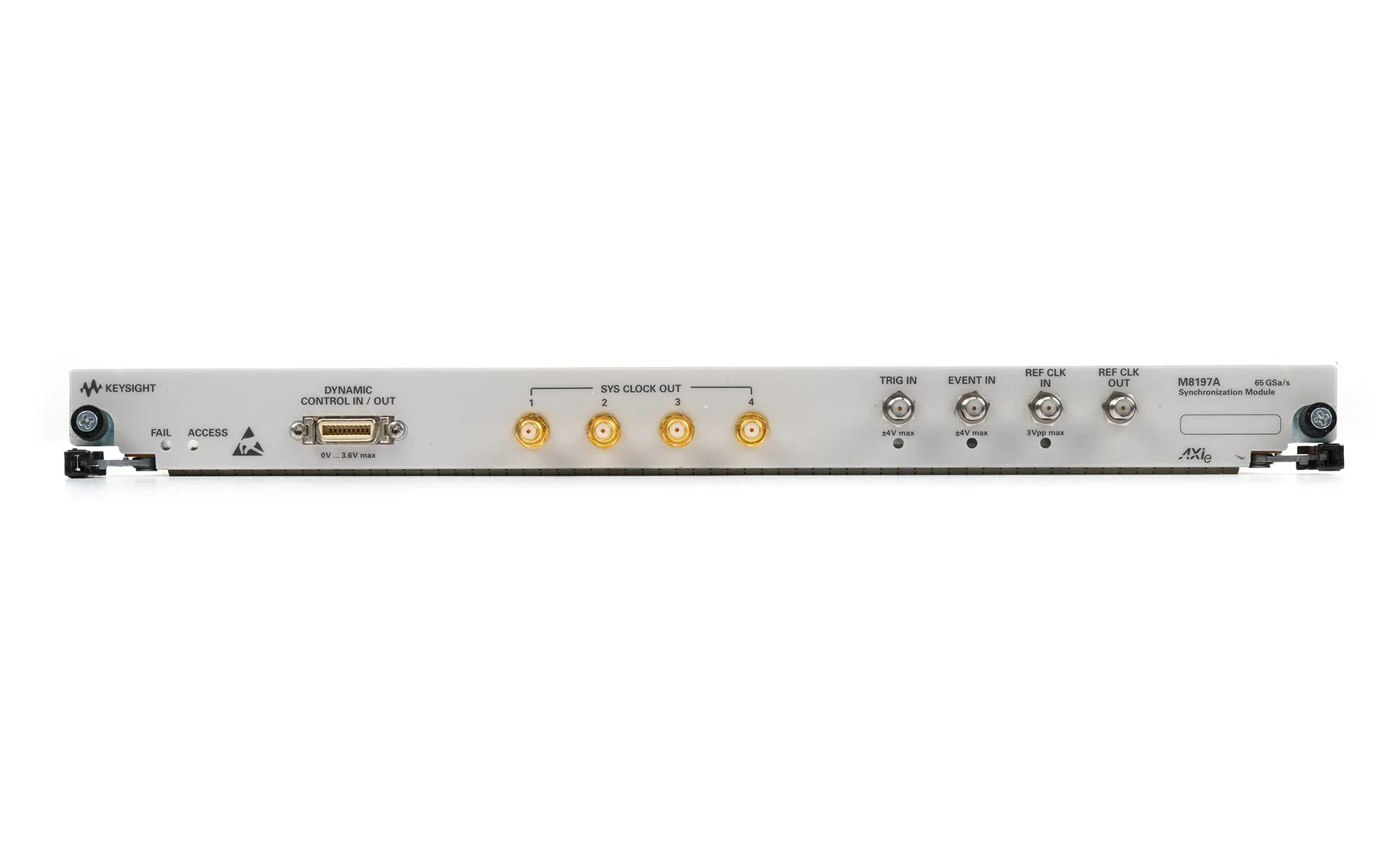

The Keysight M8197A is a multi-channel synchronization module designed to coordinate and synchronize up to 4 arbitrary waveform generator modules for complex signal scenarios requiring precise alignment. It enables fully synchronous systems with up to 16 independent channels across multiple AXIe chassis, providing trigger distribution with ±20 ps delay accuracy.
Key Features
- Synchronization of up to 4 M8195A modules or equivalent AWG units
- Trigger delay accuracy of ±20 ps across multiple modules
- Skew repeatability of 2 ps between modules independent of sampling rate
- Skew resolution of 50 fs between modules for precise channel alignment
- Dynamic control input and general purpose output for M8195A coordination
- Supports up to 16 independent channels across a 5-slot AXIe chassis
- 1-slot AXIe module format for efficient system integration
Applications
- Multi-lane serial applications requiring phase coherent signal generation
- Phase coherent multi-channel I/Q signal generation up to 8 I/Q pairs
- Phase coherent multi-channel IF/RF signal generation with up to 16 independent signals
- MIMO (Multiple-Input Multiple-Output) system testing
- Physics and research applications requiring synchronized channels
Specifications
| Precise alignment for repeatable measurements | one trigger input can trigger up to 4 M8195A modules with a delay accuracy of ±20 ps skew repeatability of 2 ps between modules independent of sampling rate skew resolution of 50 fs between modules |
| Typical Applications | multi-lane serial applications phase coherent multi-channel I / Q signal generation up to 8 I/Q pairs phase coherent multi-channel IF / RF generation with up to 16 IF / RF signals physics MIMO |
