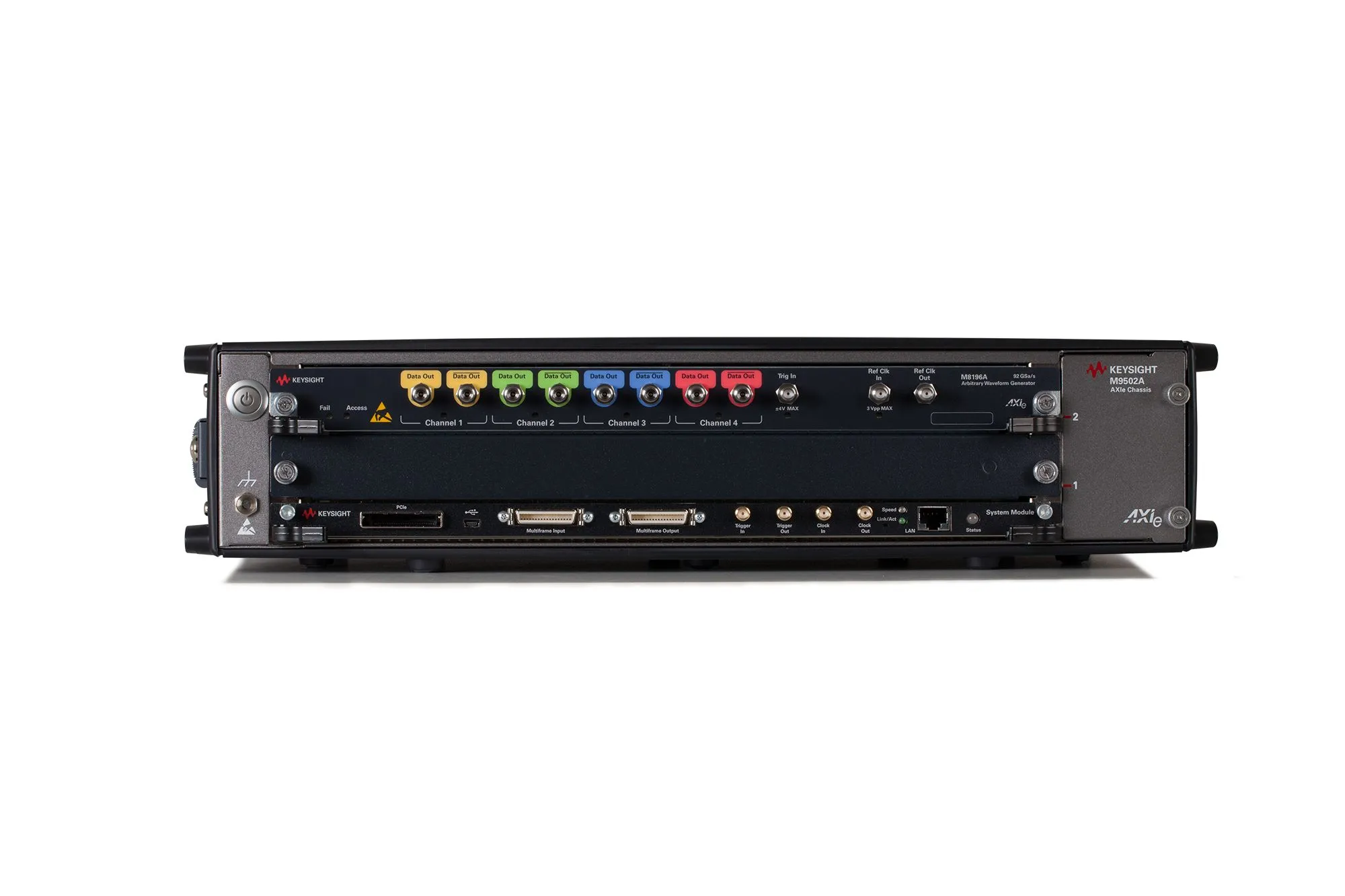

Keysight M8196A Arbitrary Waveform Generator
Request a quote
Keysight M8196A is a high-speed arbitrary waveform generator with 92 GSa/s sample rate, 32 GHz bandwidth, and up to 4 channels in a single AXIe module.
Product details
| Model | M8196A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight M8196A is a high-speed arbitrary waveform generator delivering the highest combination of sample rate, bandwidth, and channel density. It provides up to 92 GSa/s sample rate with 32 GHz analog bandwidth and 8-bit resolution, supporting signals up to 64 GBaud on up to 4 channels in a single 1-slot AXIe module.
Key Features
- Sample rate up to 92 GSa/s with 32 GHz analog bandwidth
- Ultra-low intrinsic jitter for precise signal generation
- High channel density: 1, 2, or 4 channels per AXIe module
- 512 kSa of waveform memory per channel
- Transition times less than 9 ps (20% to 80%) with frequency response compensation
- Output amplitude up to 1 Vpp(se) or 2 Vpp(diff), voltage window -1.0 to +2.5 V
- Supporting signals up to 64 GBaud and beyond
- Built-in frequency and phase response calibration
- Multi-functions with M8070A System Software for M8000 Series BER Test Solutions
Applications
- High-speed digital signal generation and testing
- Coherent optical communications
- 5G and next-generation wireless protocols
- Bit error rate (BER) testing
- Signal integrity and jitter analysis
Specifications
| Channel/Port Count | 4 |
| Maximum Sample/Data Rate | 92 GS/s |
