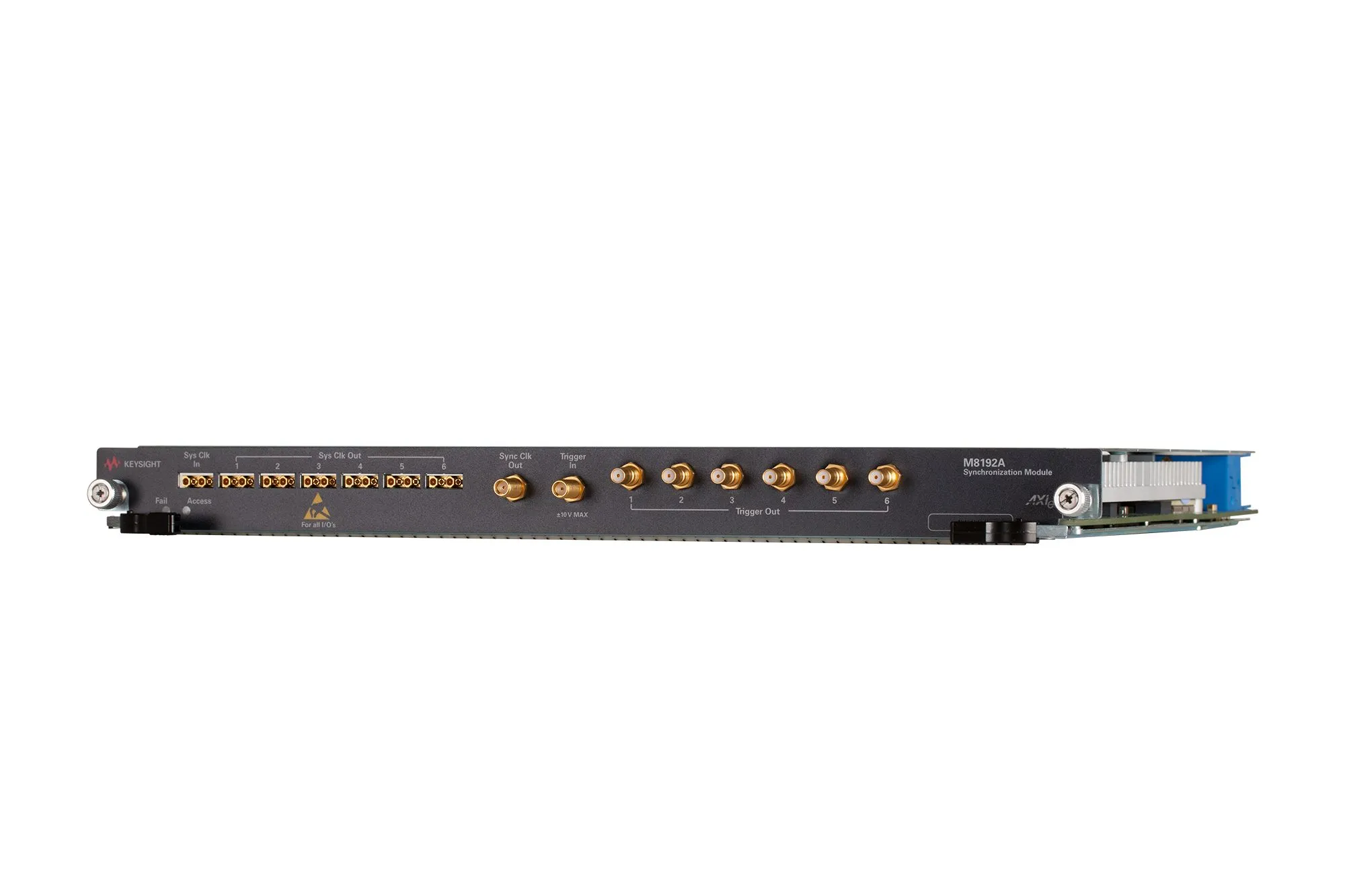

Keysight M8192A-801 Clock Cable
Request a quote
Clock cable for Keysight M8192A multi-channel synchronization module, enables configurations with three or more M8190A AWG modules.
Product details
| Model | M8192A-801 |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The M8192A-801 is a clock cable for the Keysight M8192A multi-channel synchronization module. This cable is required for configurations with three or more M8190A AWG modules.
Applications
- Multi-channel arbitrary waveform generator system expansion
- Phase-coherent multi-channel signal generation
- Complex testing scenarios requiring multiple synchronized AWG modules
Specifications
| Synchronization of: | up to 6 M8190A AWG modules, or 12 independent channels for complex signal scenarios up to 4 M8051A and 1 M8041A BERT modules, or 10 independent channels |
| Precise Alignment for Repeatable Measurements: | One trigger input can trigger up to 6 M8190A modules or 4 M8051A and 1 M8041A modules with deterministic latency Skew repeatability of 2 ps between any two channels independent of sampling rate Skew resolution of 50 fs between any two channels |
| M8192A-801 | Clock Cable for the Synchronization Module (M8192A) (required for configurations with three or more M8190A modules) |
