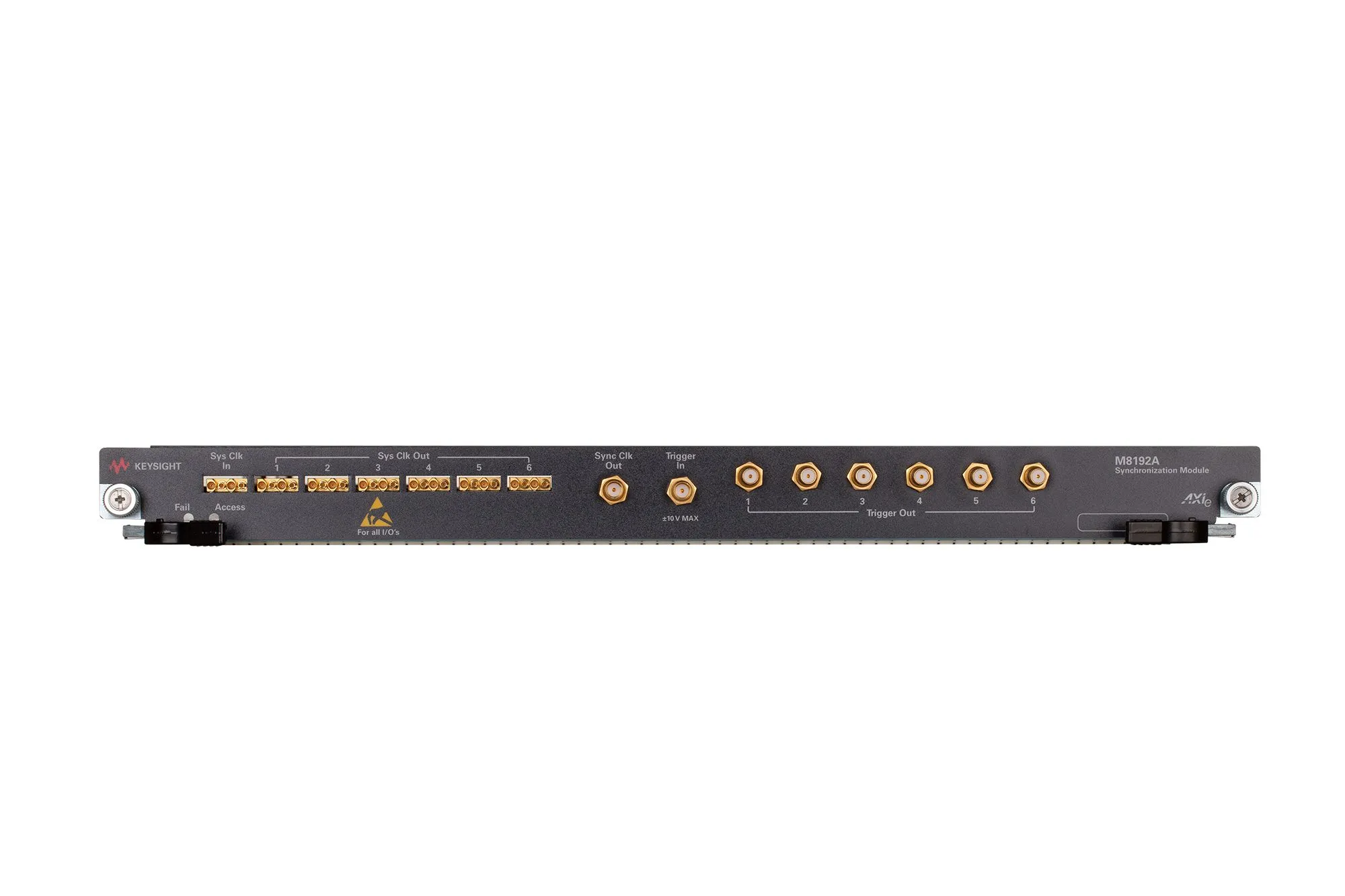

Keysight M8192A Multi-Channel Synchronization Module
Request a quote
Keysight M8192A synchronization module for multi-channel AWG and BERT systems, enabling phase coherent signal generation with 2 ps skew repeatability.
Product details
| Model | M8192A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight M8192A is a multi-channel synchronization module designed for complex testing scenarios requiring parallel waveform generation. It synchronizes up to 6 M8190A AWG modules or 12 independent channels, and supports testing of high-speed digital buses such as PCI Express. The module provides deterministic latency with trigger inputs and exceptional timing precision.
Key Features
- Synchronization of up to 6 M8190A AWG modules or 12 independent channels for complex signal scenarios
- Supports synchronization of up to 4 M8051A and 1 M8041A BERT modules for testing up to 10 lanes in parallel
- Skew repeatability of 2 ps between any two channels independent of sampling rate
- Skew resolution of 50 fs between any two channels
- Fits into a standard AXIe frame
Applications
- Phase coherent multi-channel I/Q signal generation up to 6 I/Q pairs
- Phase coherent multi-channel IF/RF generation with up to 12 IF/RF signals
- Multi-lane serial applications such as PCI Express
- MIMO applications
- Physics research and testing
Included Accessories
- Two clock cables
- Two trigger cables
Specifications
| Synchronization of: | up to 6 M8190A AWG modules, or 12 independent channels for complex signal scenarios up to 4 M8051A and 1 M8041A BERT modules, or 10 independent channels |
| Precise Alignment for Repeatable Measurements: | One trigger input can trigger up to 6 M8190A modules or 4 M8051A and 1 M8041A modules with deterministic latency Skew repeatability of 2 ps between any two channels independent of sampling rate Skew resolution of 50 fs between any two channels |
| M8192A | Synchronization Module for up to six M8190A AWG modules. Please note that two clock cables and two trigger cables are included. For more than two modules, the corresponding number of clock cables and trigger cables needs to be ordered separately. |
