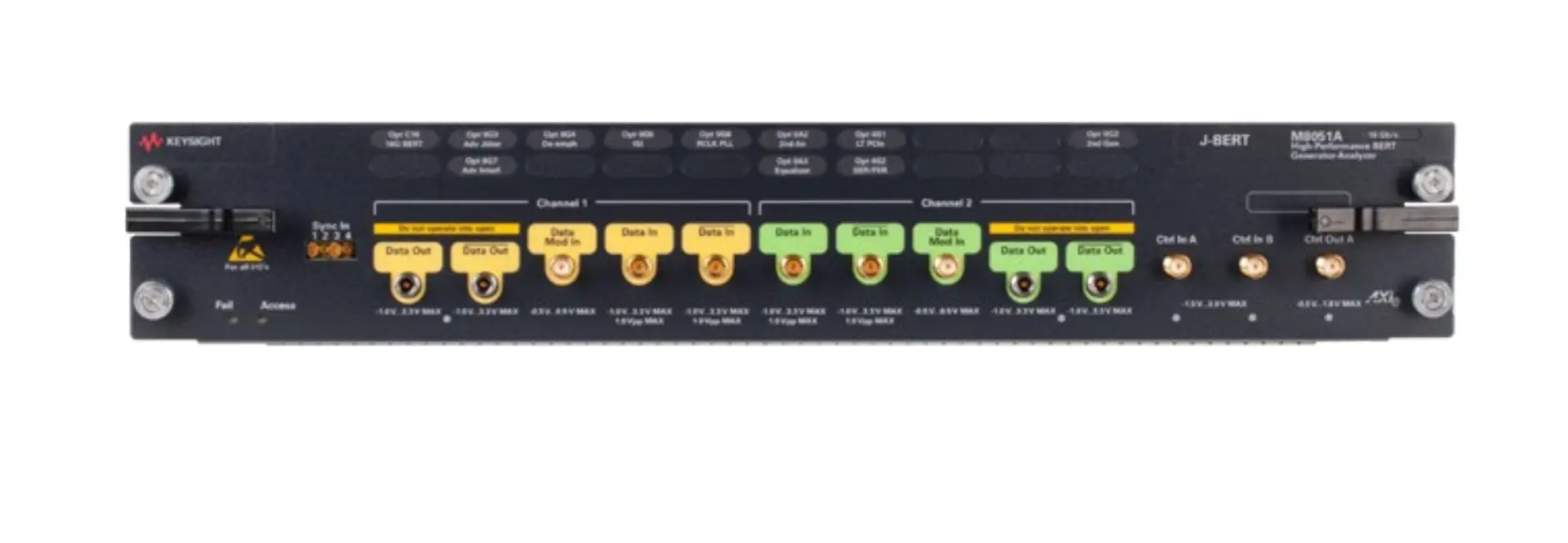

Keysight M8051A Multi-Channel BERT Module
Request a quote
Keysight M8051A multi-channel BERT with data rates up to 16 Gb/s, up to 10 channels, integrated jitter injection, and PCI Express link training.
Product details
| Model | M8051A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight M8051A is a multi-channel bit error rate testing (BERT) module supporting data rates up to 16 Gb/s with integrated pattern generation and analysis. It accommodates up to 10 BERT channels in a 14-slot AXIe chassis, providing comprehensive jitter injection, de-emphasis adjustment, and clock synchronization across all channels. This module is designed for testing complex serial I/O interfaces including PCI Express standards.
Key Features
- Data rates up to 8.5 Gb/s and 16 Gb/s with scalable multi-channel architecture
- Up to 10 BERT pattern generator and analyzer channels in a single 14-slot AXIe chassis
- Integrated and calibrated jitter injection (RJ, PJ1, PJ2, SJ, BUJ, SSC, sinusoidal interference)
- 8-tap de-emphasis (positive and negative) individually adjustable per channel
- Built-in clock recovery and equalization on all channels
- Interactive link training for PCI Express
- Individually adjustable generator channel delay and pattern sequence
- Clock synchronization between all modules
- All options and modules are upgradeable
Applications
- Multi-channel PCI Express testing and link training
- Serial I/O interface characterization
- Compliance testing for communication standards
- Design validation for high-speed transceivers
Specifications
| Maximum Data Rate | 8.5 Gb/s and 16 Gb/s |
| Maximum Channels | Up to 10 BERT channels |
| Chassis Compatibility | 14-slot AXIe |
| De-emphasis | 8-tap (positive and negative) |
| Jitter Injection Types | RJ, PJ1, PJ2, SJ, BUJ, SSC (triangular and arbitrary, residual) |
| Clock Synchronization | Integrated between all modules |
| Features | Built-in clock recovery, equalization, interactive PCI Express link training |
| Pattern Generation | Individually adjustable generator channel delay and sequence |
| Upgradeable | All options and modules are upgradeable |
