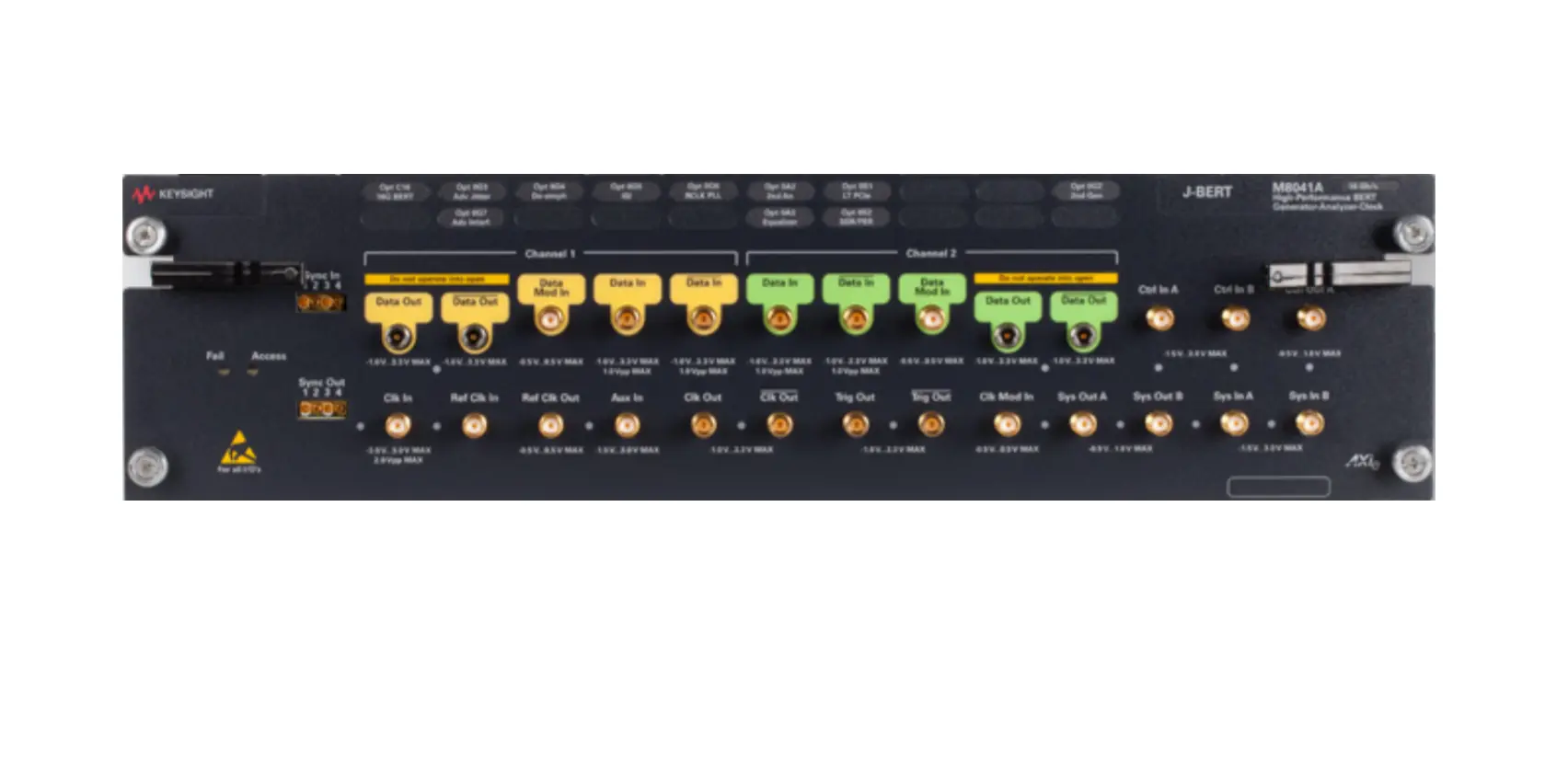

Keysight M8041A High Performance BERT Module
Request a quote
Keysight M8041A is a high-performance pattern generator and error analyzer supporting data rates up to 16 Gb/s with integrated jitter injection, de-emphasis, and equalization for BERT testing.
Product details
| Model | M8041A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight M8041A is a high-performance BERT (Bit Error Rate Testing) module designed for pattern generation and error detection. Supporting data rates up to 16 Gb/s, the M8041A can be configured as a pattern generator, error detector, or combination thereof in a 3-slot AXIe form factor. It is part of the J-BERT M8020A high-performance BERT system for validating high-speed serial interfaces.
Key Features
- Data rates up to 8.5 and 16 Gb/s for pattern generator and error detector
- Up to four 16 Gb/s BERT channels in a 3-slot AXIe chassis, expandable to 32 Gb/s with M8061A multiplexer
- Integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, sinusoidal interference (common-mode and differential-mode), SSC
- 8-tap de-emphasis with up to 20 dB capability (positive and negative)
- Integrated and adjustable ISI for loss emulation
- Interactive link training for PCI Express
- Built-in clock data recovery and equalization
- All modules and options are upgradeable
Applications
- High-speed serial interface characterization and testing
- PCI Express compliance testing
- Data center transceiver validation
- Telecommunications and networking equipment validation
Specifications
| Data Rate (Generator/Analyzer) | Up to 8.5 Gb/s or 16 Gb/s |
| Number of Channels | Up to 4 BERT channels (16 Gb/s each) in 3-slot AXIe |
| Form Factor | 3-slot AXIe module |
| De-emphasis | 8-tap, up to 20 dB (positive and negative) |
| Jitter Injection | RJ, PJ1, PJ2, SJ, BUJ, sinusoidal interference, SSC |
| ISI Support | Integrated and adjustable for loss emulation |
| Link Training | Interactive PCI Express support |
| Clock Recovery | Built-in with equalization |
