Keysight M8040A 64 Gbaud BERT

Overview

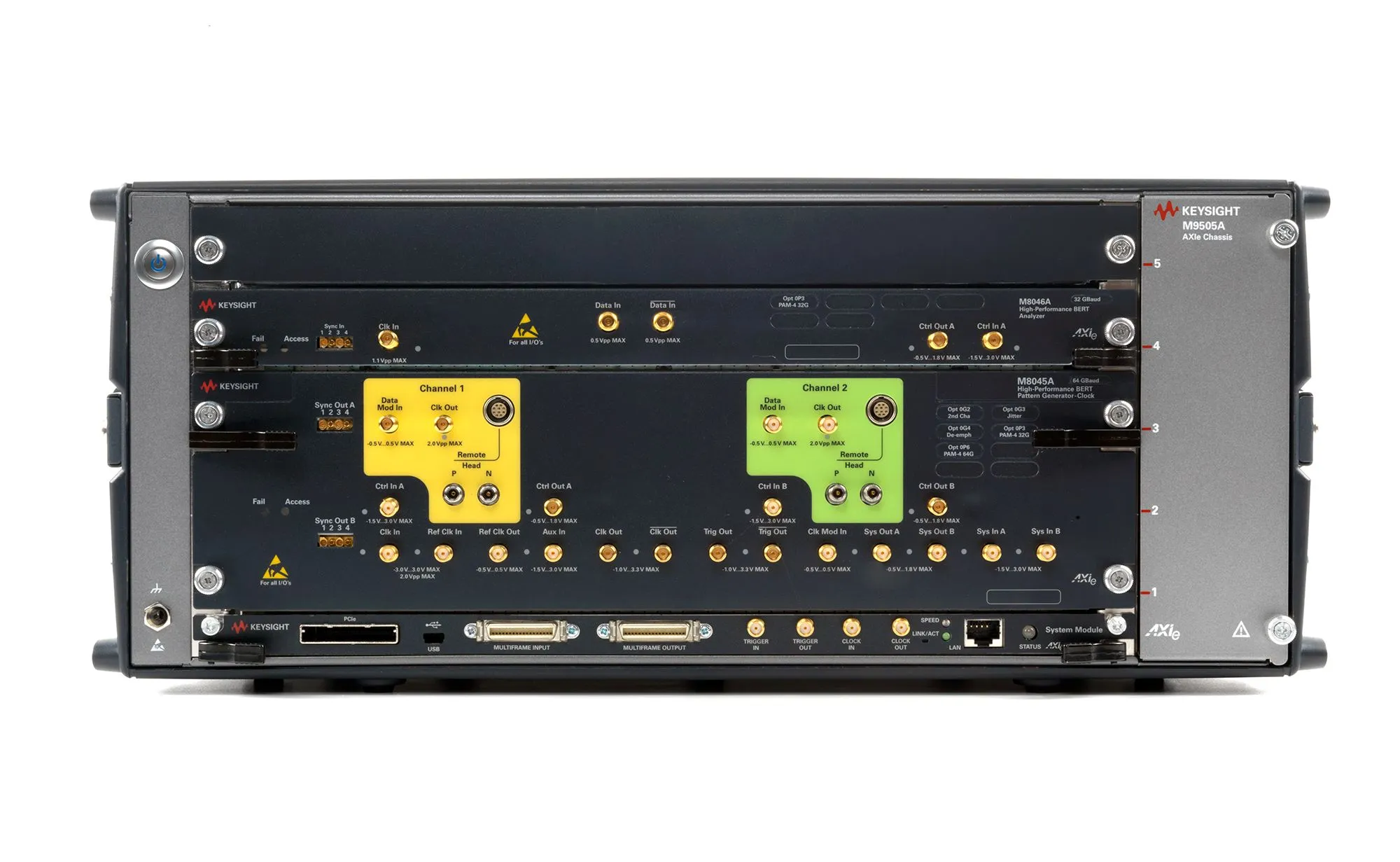

The Keysight M8040A is a highly integrated bit error rate tester (BERT) designed for physical-layer characterization and compliance testing of devices operating at high data rates. Supporting both PAM4 and NRZ signal formats with data rates up to 64 Gbaud (128 Gbit/s), it covers all flavors of 200 and 400 GbE standards.

Engineered for R&D and test engineers, the M8040A characterizes chips, devices, transceiver modules, and sub-components with serial I/O ports in data center and communications applications. The included M8057A remote head enables flexible positioning close to the device under test for accurate measurements.

Key Features

• Data rates from 2 to 64 Gbaud for PAM4 signals
• True PAM4 error detection in real-time up to 58 Gbaud
• Built-in de-emphasis, analyzer equalization, and clock recovery
• Integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, clock/2 jitter
• Two pattern generator channels per module for aggressor lane emulation
• Interactive link training and SKP OS filtering for PCIe 8/16/32 GT/s
• Algorithmic PRBS, QPRBS, and memory-based patterns with pattern sequencer
• PAM4 support with gray coding, FEC encoding, precoder, and error distribution analysis
• Fully upgradeable options and modules

Applications

• 400 GbE transceiver and chip characterization
• 200 GbE and 100 GbE device testing
• OIF CEI-56G and CEI-112G standard compliance
• 64G and 112G Fibre Channel testing
• Infiniband-HDR validation
• Chip-to-chip and chip-to-module backplane testing
• Active optical cable and repeater qualification
