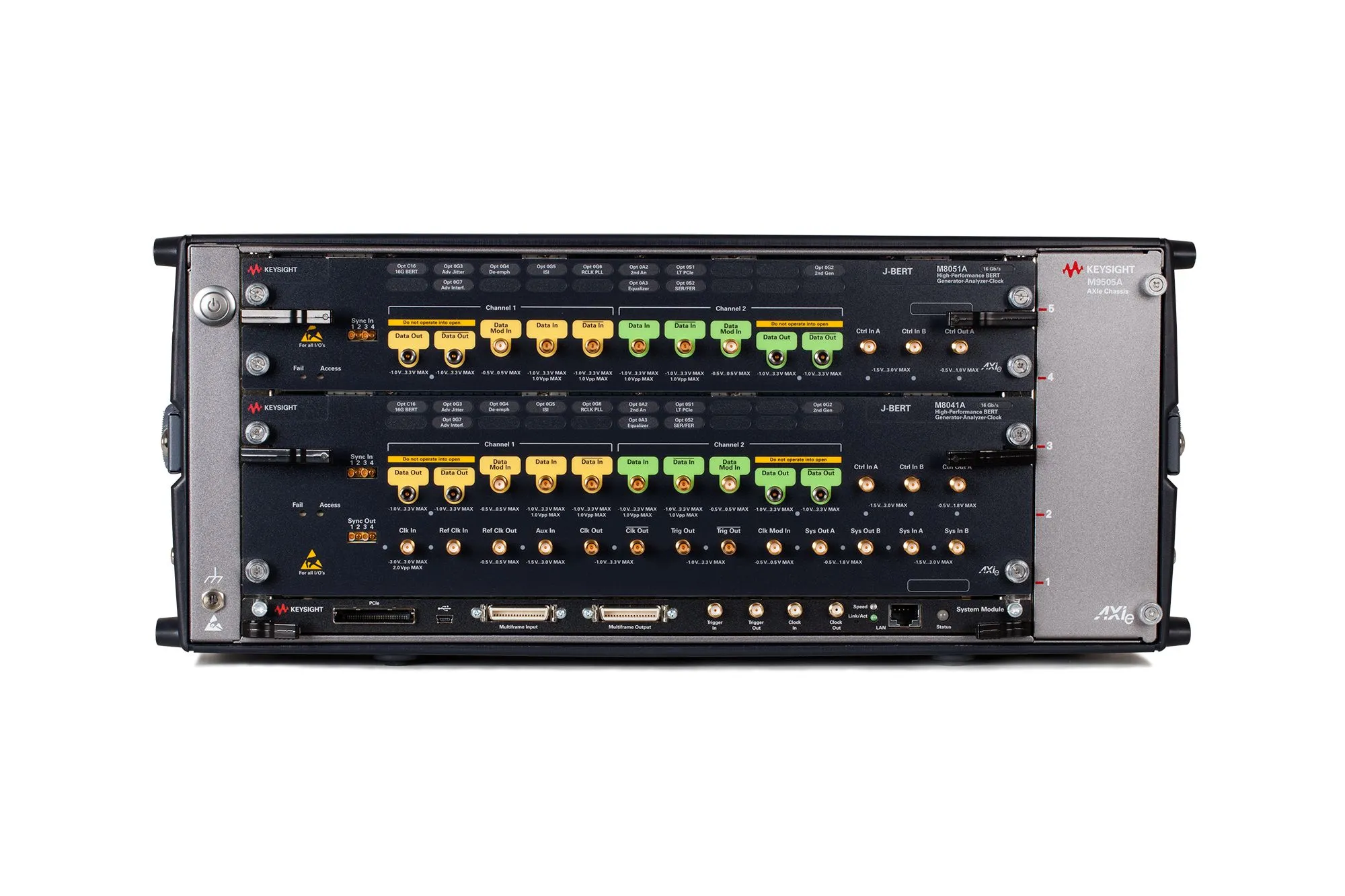

Keysight M8020A J-BERT
Request a quote
Keysight M8020A J-BERT provides high-speed receiver characterization up to 16/32 Gbps with integrated jitter injection, automated calibration, and interactive link training.
Product details
| Model | M8020A |
| Manufacturer | Keysight |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Keysight M8020A J-BERT is a high-performance bit error rate tester designed for physical-layer characterization of single- and multi-lane devices running up to 16 or 32 Gbps. With the highest level of integration, it streamlines test setups while providing automated in situ signal calibration and interactive link training capabilities.
Key Features
- Data rates up to 8.5/16 Gbps for pattern generator and error detector, expandable to 32 Gbps with M8062A front-end
- Integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, and sinusoidal interference (common and differential modes)
- 8-tap de-emphasis (positive and negative) up to 20 dB
- Integrated and adjustable ISI for loss emulation
- Interactive link training for SAS-3, USB 3.0/3.1, and PCI Express (8 GT/s and 16 GT/s)
- Interactive TxEQ training for IEEE 10GBASE-KR, 25GBASE-KR, and 100GBASE-KR4
- Built-in clock data recovery and equalization
- System integration with M8070A software and seamless operation with BERT/Scope and AWGs
Applications
- Characterization and compliance testing of chips and devices with serial I/O ports
- PCI Express, USB, MIPI M-PHY, SATA/SAS, and DisplayPort testing
- SD UHS-II, Fibre Channel, and memory bus validation
- Backplane and repeater testing
- Active optical cable and transceiver module qualification
- Thunderbolt, 10 GbE, and 100 GbE (optical and electrical) testing
Specifications
| Target Applications | R&D and test engineers who characterize, verify compliance of chips, devices, boards and systems with serial I/O ports up to 16 Gb/s and 32 Gb/s. The M8020A can be used to test popular serial bus standards, such as: PCI Express®, USB, MIPI M-PHYTM, SATA/SAS, DisplayPort, SD UHS-II, Fibre Channel, memory buses, backplanes, repeaters, active optical cables, Thunderbolt, 10 GbE, 100 GbE (optical and electrical), SFP+, CFP2/4 transceivers, CEI. |
